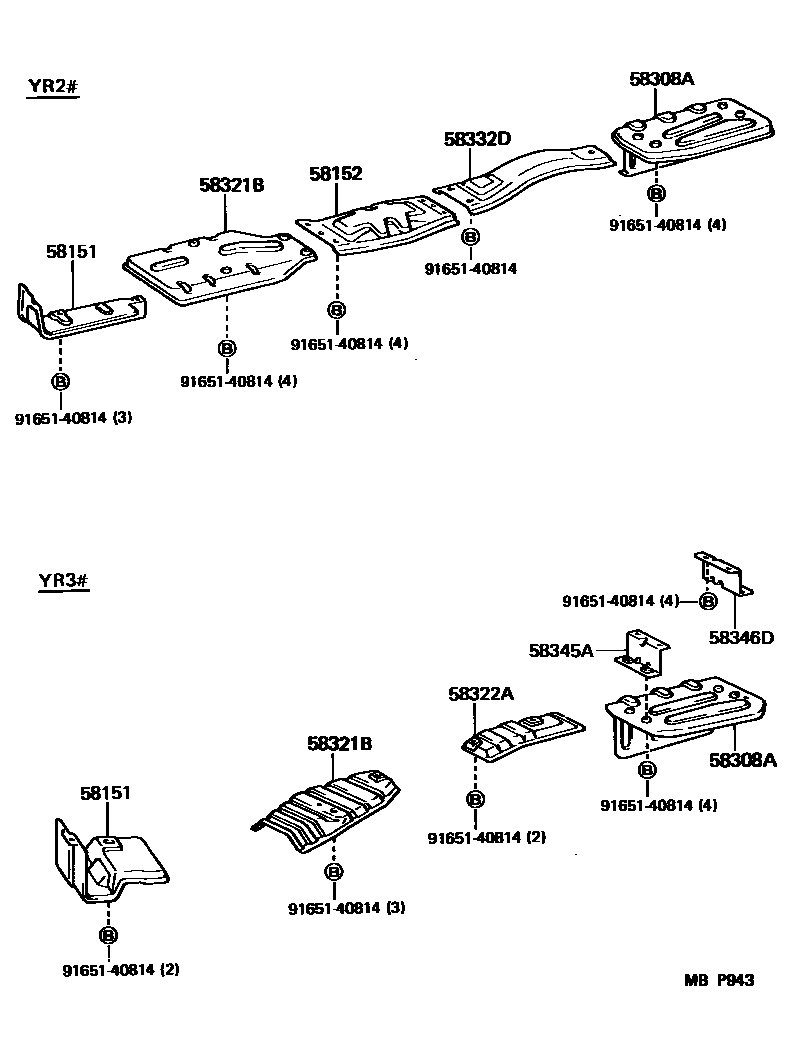

FLOOR INSULATOR
58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
sub58152-28010
58308APANEL SUB-ASSY, HEAT PROOF
58321BINSULATOR, REAR FLOOR HEAT, NO.1
58322AINSULATOR, REAR FLOOR HEAT, REAR
58332DINSULATOR, REAR FLOOR HEAT, NO.3
58345ABRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58346DBRACKET, REAR FLOOR HEAT INSULATOR, NO.2
9165140814
main91651-40814
9 parts on this diagram · 1 diagram in section
