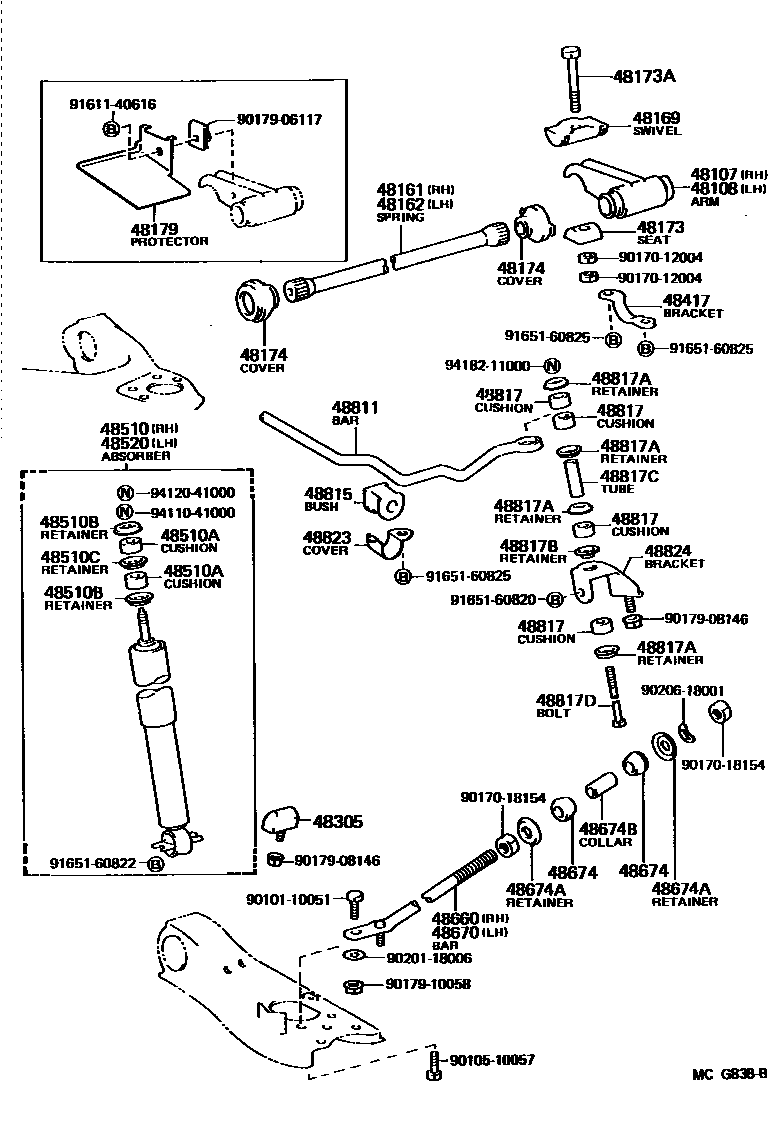

FRONT SPRING & SHOCK ABSORBER
48107ARM SUB-ASSY, ANCHOR, RH
48108ARM SUB-ASSY, ANCHOR, LH
48173SEAT, ANCHOR ARM ADJUSTER
48173ABOLT, HEXAGON(FOR ANCHOR ARM ADJUSTING)
48174COVER, TORSION BAR DUST
FR
RR
48179PROTECTOR, TORSION BAR DUST COVER, LH
48305BUMPER SUB-ASSY, FRONT SPRING, NO.2
48417BRACKET, SPRING
48510ACUSHION, FRONT SHOCK ABSORBER
UPR
LWR
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
UPR
LWR
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48660BAR ASSY, STRUT, RH
48670BAR ASSY, STRUT, LH
48674CUSHION, STRUT BAR
48674ARETAINER, CUSHION(FOR STRUT BAR CUSHION)
48674BCOLLAR(FOR STRUT BAR CUSHION)
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48817CUSHION, FRONT STABILIZER
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817CCOLLAR(FOR STABILIZER BAR)
48817DBOLT(FOR FRONT STABILIZER)
48823COVER, STABILIZER LINK(FOR FRONT)
48824BRACKET, STABILIZER, FRONT
RH
LH
9010110051
main90101-10051
9010510057
main90105-10057
9017012004
main90170-12004
9017018154
main90170-18154
9017906117
main90179-06117
9017908146
main90179-08146
9017910058
main90179-10058
9020118006
main90201-18006
9020618001
main90206-18001
9161140616
main91611-40616
9165160820
main91651-60820
9165160822
main91651-60822
9165160825
main91651-60825
9411041000
main94110-41000
9412041000
main94120-41000
9418211000
main94182-11000
46 parts on this diagram · 2 diagrams in section
