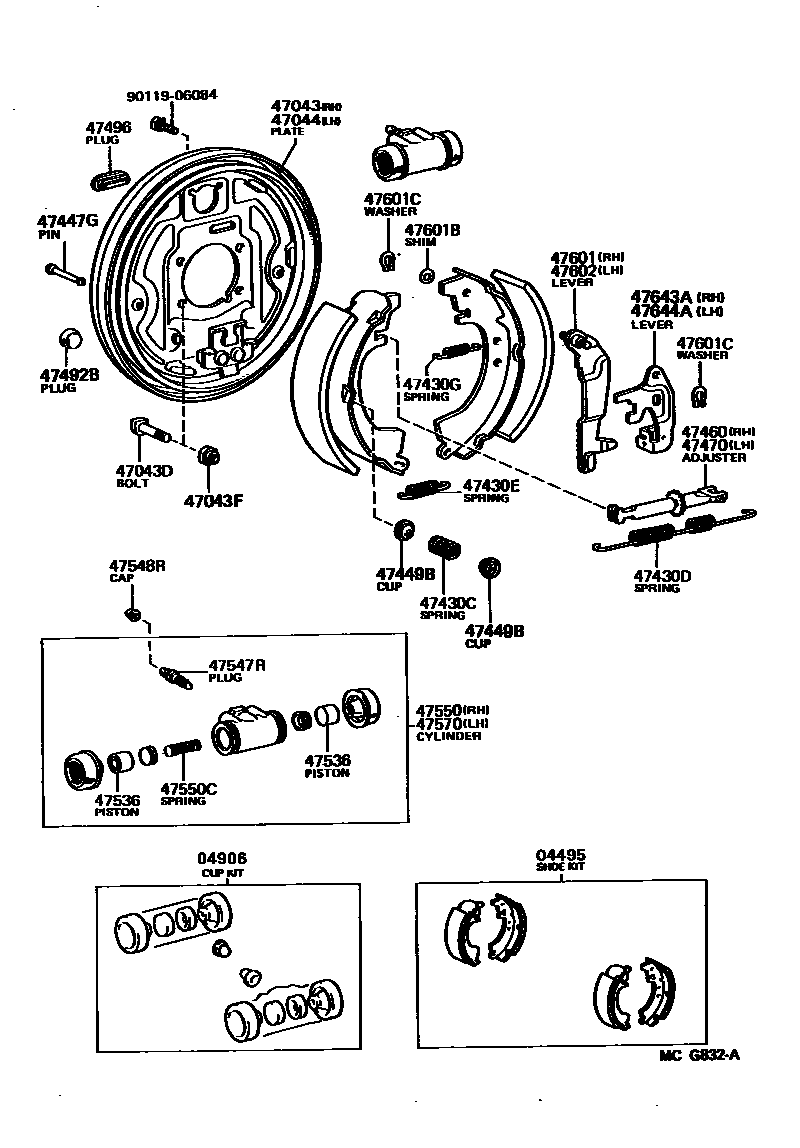

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-28040iYR2#,3#198808-198809

sub04495-28041

main04495-28041iYR2#,3#198809-199001

sub04495-30090

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30080iYR2#,3#198808-199001

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-28050iYR2#,3#198808-199001

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-28010iYR2#,3#198911-199001

main42184-30021iYR2#,3#198808-198911

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10030iYR2#,3#198808-198911

main90179-10150iYR2#,3#198911-199001

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-28050iYR2#,3#198808-199001

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20756iYR2#,3#198808-199001

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23003iYR2#,3#198808-199001

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23030iYR2#,3#198808-199001

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12480iYR2#,3#198808-199001

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020iYR2#,3#198808-199001

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iYR2#,3#198808-199001

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47062-30040iYR2#,3#198808-199001

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47061-30040iYR2#,3#198808-199001

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iYR2#,3#198808-199001

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iYR2#,3#198808-199001

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22040iYR2#,3#198808-199001

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030iYR2#,3#198808-199001

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iYR2#,3#198808-199001

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-30120iYR2#,3#198808-199001

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-22010iYR2#,3#198808-199001

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-30120iYR2#,3#198808-199001

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-28010iYR2#,3#198808-199001

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-09001iYR2#,3#198808-199001

T=0.2

main90564-09002iYR2#,3#198808-199001

T=0.4

main90564-09003iYR2#,3#198808-199001

T=0.5

main90564-09184iYR2#,3#198808-199001

T=0.3

main90564-09185iYR2#,3#198808-199001

T=0.6

main90564-09186iYR2#,3#198808-199001

T=0.9

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iYR2#,3#198808-199001

T=1.2

main90213-07010iYR2#,3#198808-199001

T=1.6

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-28010iYR2#,3#198808-199001

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47644-30010iYR2#,3#198808-199001

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-30010iYR2#,3#198808-199001

9011906084

main90119-06084

29 parts on this diagram · 1 diagram in section
