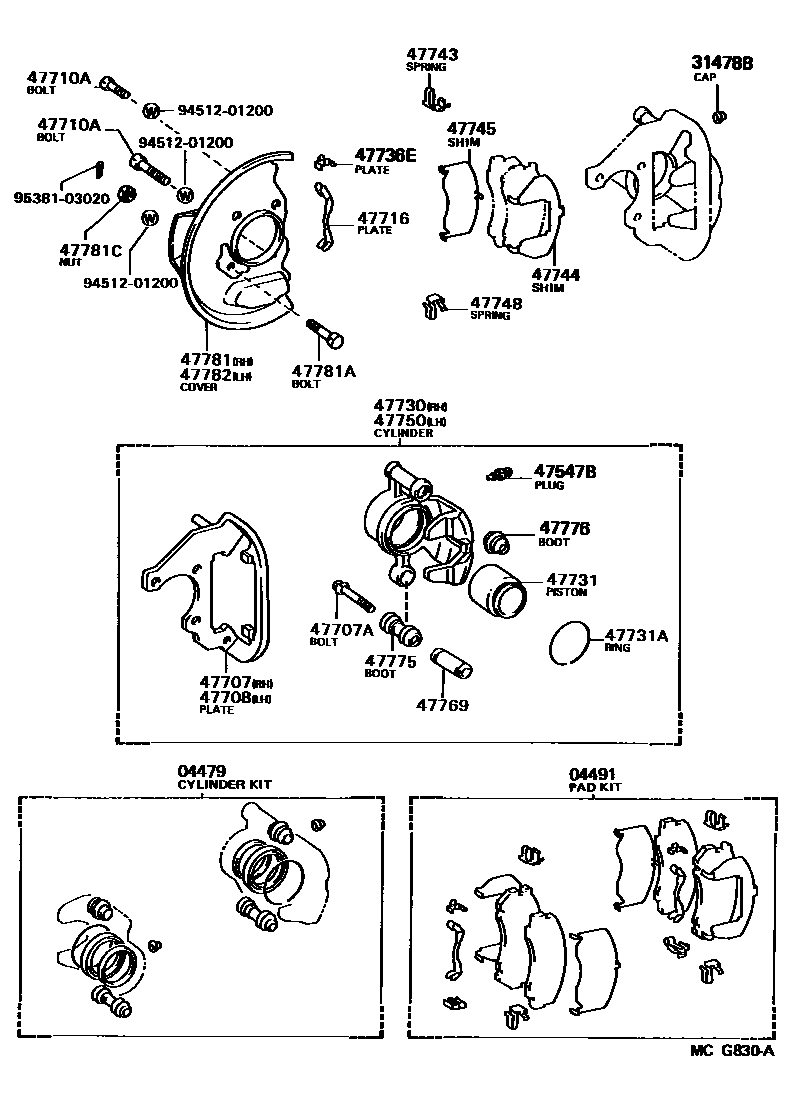

FRONT DISC BRAKE CALIPER & DUST COVER
04479CYLINDER KIT, DISC BRAKE, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH
47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)
47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX50-26
*12-1.25PX31-20
*12-1.25PX28.1-20
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
47736EPLATE, FRONT DISC BRAKE PAD GUIDE, NO.1
47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47750CYLINDER ASSY, DISC BRAKE, LH
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)
47781COVER, DISC BRAKE DUST, FRONT RH
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
47782COVER, DISC BRAKE DUST, FRONT LH
9451201200
main94512-01200
9538103020
main95381-03020
27 parts on this diagram · 3 diagrams in section
