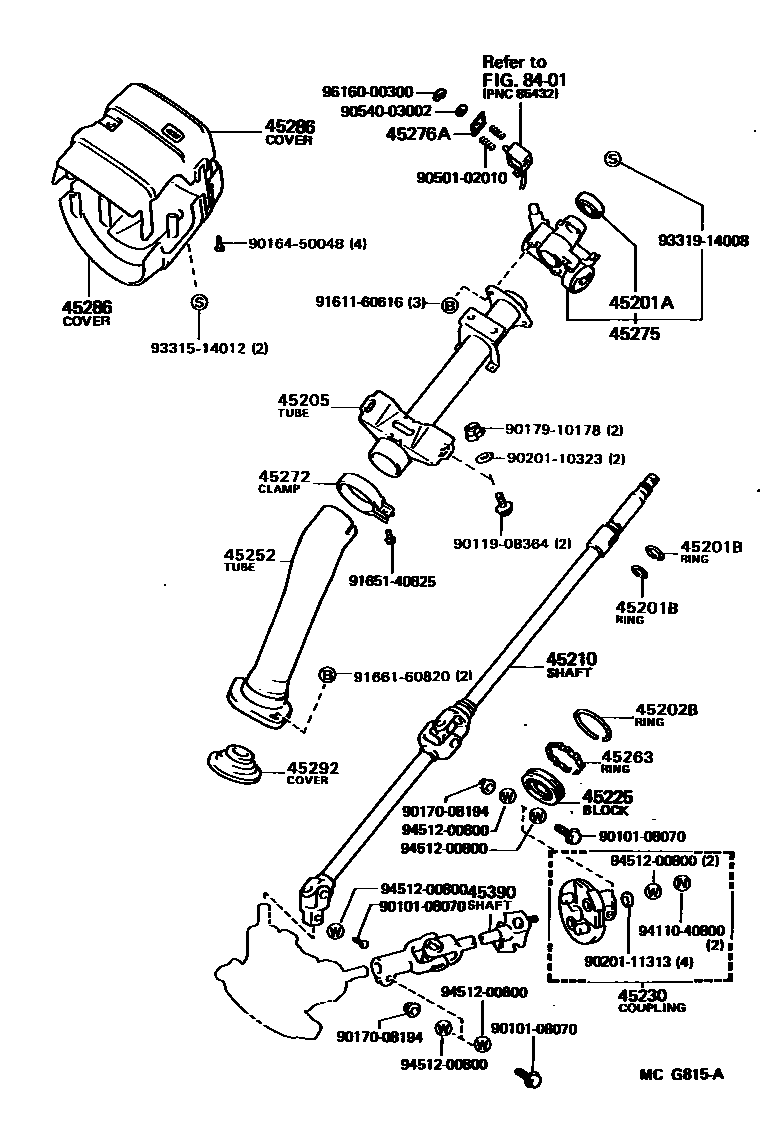

STEERING COLUMN & SHAFT
45201ABEARING(FOR STEERING MAIN SHAFT)
UPR
W(TILT STEERING),UPR
W(TILT STEERING),LWR
LWR
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20
T=1.20
45202BRING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
W(TILT STEERING)
45210SHAFT ASSY, STEERING MAIN
W(TILT STEERING)
45225BLOCK, BEARING
45230COUPLING ASSY, FLEXIBLE
W(POWER STEERING)
45252TUBE, STEERING COLUMN, LOWER
45263RING, STEERING COLUMN, NO.1
45272CLAMP, STEERING COLUMN, LOWER
45275BRACKET, STEERING COLUMN, UPPER
W(TILT STEERING)
W(TILT STEERING)
45276ASTOPPER, KEY INTERLOCK RELEASE BUTTON
45286COVER, STEERING COLUMN
45292SEAL, MAIN SHAFT LOWER DUST
45390SHAFT ASSY, STEERING TORQUE
W(POWER STEERING)
8401
9010108070
main90101-08070
9011908364
main90119-08364
9016450048
main90164-50048
9017008194
main90170-08194
9017910178
main90179-10178
9020110323
main90201-10323
9020111313
main90201-11313
9050102010
main90501-02010
9054003002
main90540-03002
9161160616
main91611-60616
9165140825
main91651-40825
9166160820
main91661-60820
9331514012
main93315-14012
9331914008
main93319-14008
9411040800
main94110-40800
9451200800
main94512-00800
9616000300
main96160-00300
33 parts on this diagram · 4 diagrams in section
