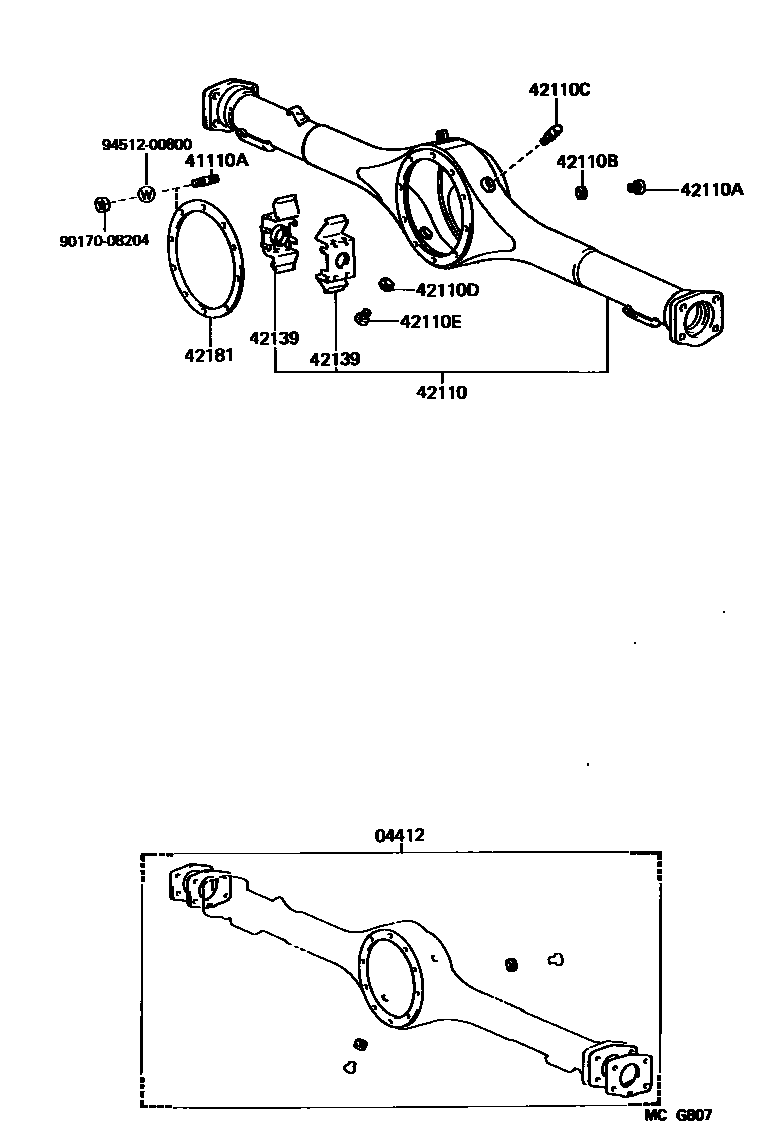

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-30020iYR2#,3#198808-199001

sub04412-30060

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-28060iYR2#..5F198808-199001

*FGR=41:10=4.100

main41110-28070iYR3#..5F198808-199001

*FGR=43:10=4.300

main41110-28090iYR3#..4FC198808-199001

*FGR=43:9=4.778

main41110-30180iYR2#..4FC198808-199001

*FGR=43:10=4.300

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08235iYR2#,3#198808-199001

S=12 & 15,L=34

sub90116-08418

42110HOUSING ASSY, REAR AXLE

main42110-28151iYR22198808-199001

main42110-28160iYR3#198808-199001

main42110-28170iYR29198808-199001

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iYR2#,3#198808-199001

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iYR2#,3#198808-199001

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iYR2#,3#198808-199001

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iYR2#,3#198808-199001

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iYR2#,3#198808-199001

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-30010iYR2#,3#198808-199001

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30020iYR2#,3#198808-199001

9017008204

main90170-08204

9451200800

main94512-00800

13 parts on this diagram · 2 diagrams in section
