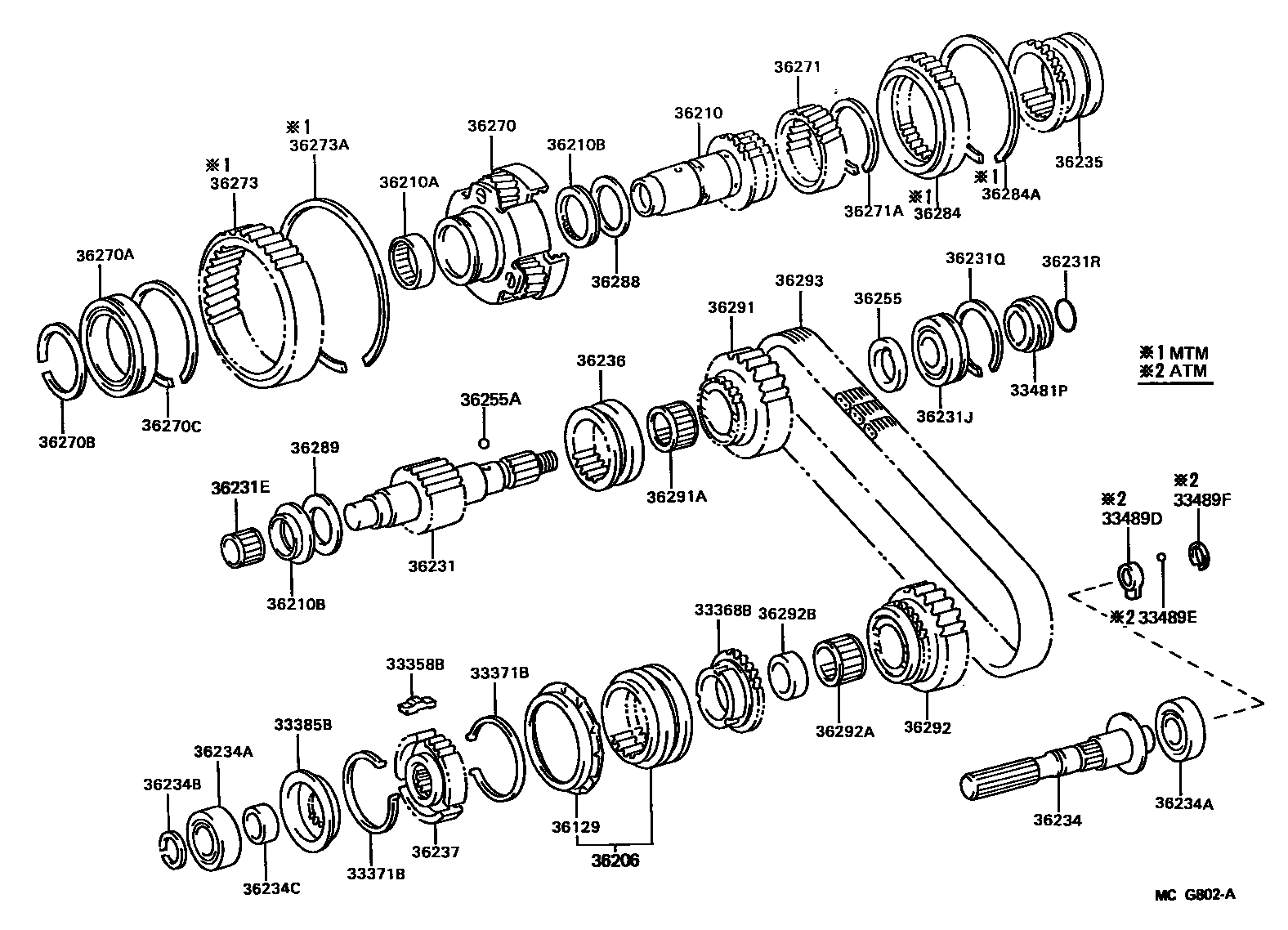

TRANSFER GEAR
33358BKEY, SYNCHROMESH SHIFTING (FOR TRANSFER FR DRIVE CLUTCH)
33368BRING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH)
33371BSPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER)
33385BRETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH)
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
N=6,MARK 1
N=6,MARK 1
33489DROTOR, SPEED SENSOR
33489EBALL (FOR SPEED SENSOR ROTOR)
33489FRING, E (FOR SPEED SENSOR ROTOR)
36129PLATE, TRANSFER OIL SUPPLY
36206SLEEVE SUB-ASSY, TRNSFR FR DRIVE CLUTCH
sub36238-28010
36210SHAFT ASSY, TRANSFER INPUT
36210ABEARING (FOR TRANSFER INPUT SHAFT)
sub90364-47013
36210BBEARING, THRUST (FOR TRANSFER INPUT SHAFT)
RR
FR
36231SHAFT, TRANSFER OUTPUT, REAR
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36231QRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR BEARING)
36231RRING, O (FOR TRANSFER OUTPUT SHAFT)
36234SHAFT, TRANSFER OUTPUT, FRONT
36234ABEARING (FOR TRANSFER OUTPUT FRONT SHAFT)
RR
36234BRING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING)
T=1.95,MARK 1
T=2.00,MARK 2
T=2.05,MARK 3
T=2.10,MARK 4
T=2.15,MARK 5
T=2.20,MARK 6
T=2.25,MARK 7
T=2.30,MARK 8
T=2.35,MARK 9
T=2.40,MARK 10
T=2.45,MARK 11
T=2.50,MARK 12
36234CSPACER (FOR TRANSFER OUTPUT FRONT SHAFT)
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
36236SLEEVE, FRONT DRIVE CLUTCH
36237HUB, TRANSFER CLUTCH
36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)
36270GEAR ASSY, TRANSFER LOW PLANETARY
sub36270-35020
36270ABEARING (FOR TRANSFER LOW PLANETARY GEAR)
36270BRING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR)
T=1.45,MARK 1
T=1.50,MARK 2
T=1.55,MARK 3
T=1.60,MARK 4
T=1.65,MARK 5
36270CRING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARING)
36271GEAR, TRANSFER LOW PLANETARY SUN
36271ARING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY SUN GEAR)
36273GEAR, TRANSFER LOW PLANETARY RING
sub36273-35030
36273ARING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR)
sub90520-99078
36284PIECE, TRANSFER LOW PLANETARY GEAR SPLINE
36288RACE, TRANSFER THRUST BEARING, NO.1
36289RACE, TRANSFER THRUST BEARING, NO.2
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
36292ABEARING (FOR TRANSFER DRIVEN SPROCKET)
36292BSPACER (FOR TRANSFER DRIVEN SPROCKET)
45 parts on this diagram · 1 diagram in section
