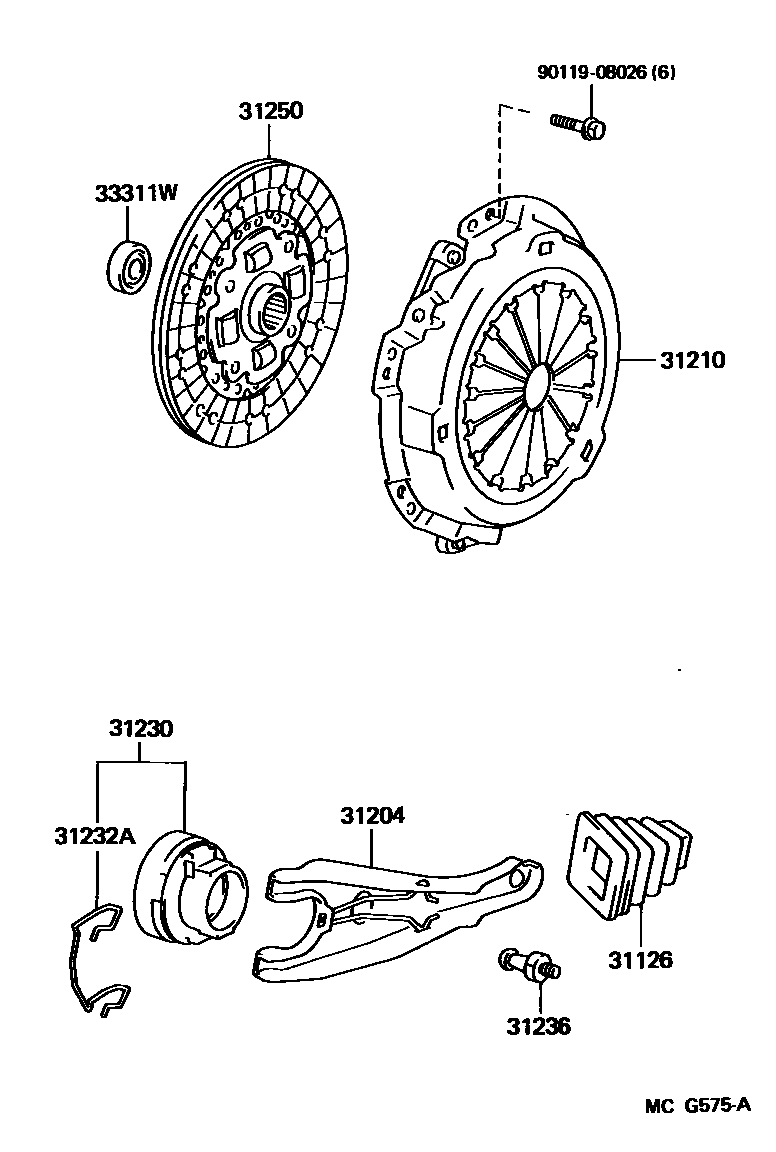

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iYR2#,3#..5F198808-199001

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iYR2#,3#..5F198808-199001

31210COVER ASSY, CLUTCH

main31210-35100iYR2#,3#..5F198808-199001

sub31210-35101

31230BEARING ASSY, CLUTCH RELEASE

main31230-35090iYR2#,3#..5F198808-199001

sub31230-35091

31232ACLIP, RELEASE BEARING HUB

main31232-35020iYR2#,3#..5F198808-199001

NSK BEARING

main31232-35040iYR2#,3#..5F198911-199001

KOYO BEARING

31236BALL, RELEASE FORK

main31236-30060iYR2#,3#..5F198808-199001

31250DISC ASSY, CLUTCH

main31250-28030iYR2#,3#..5F198808-198909

sub31250-28031

main31250-28031iYR2#,3#..5F198909-199001

sub31250-28130

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iYR2#,3#..5F198808-199001

sub90363-12024

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
