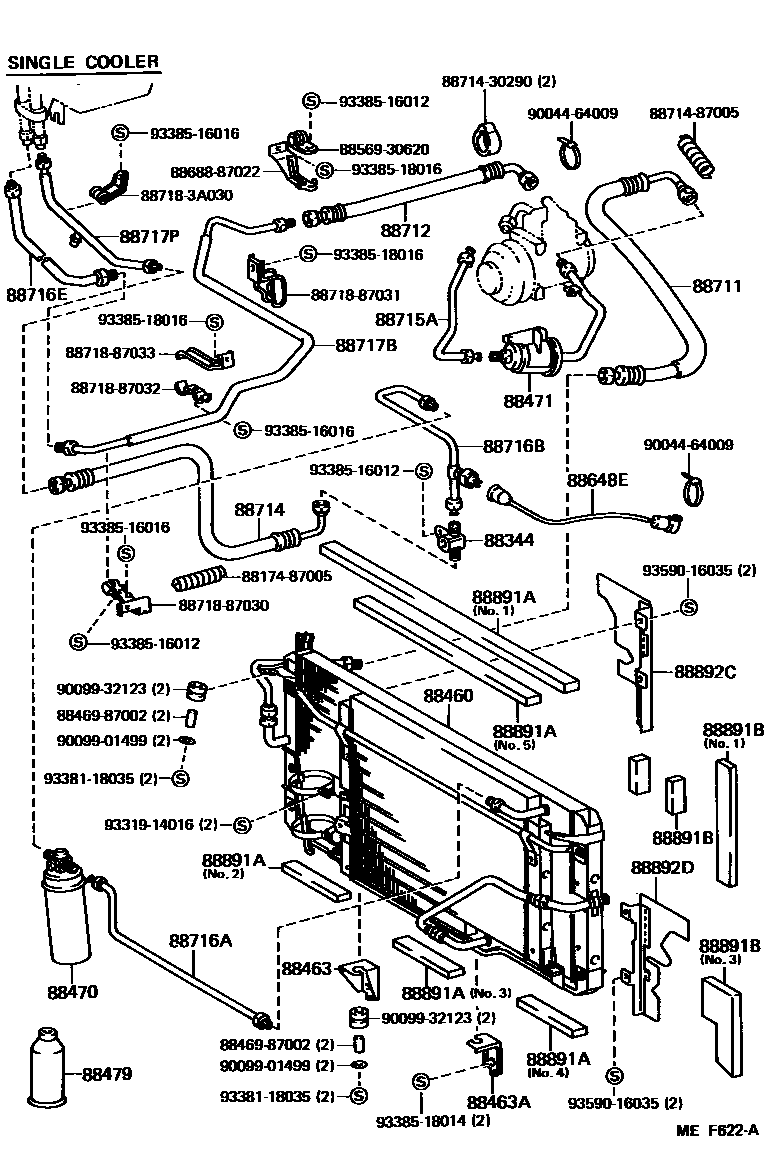

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

88344GLASS SUB-ASSY, SIGHT

main88481-87002iYR21;YR27..USA198308-198508

main88481-87003iYR21;YR27..USA198308-198508

W/COOL BOX

main88481-87004iYR2#,31198508-198808

main88481-87004iYR2#..5F198408-198508

DEALER OPTION

88460CONDENSER ASSY, COOLER

main88450-28011iYR22;YR29..USA198508-198808

MAKER OPTION,RADIATOR

main88450-87002iYR21;YR27..USA198308-198508

main88460-28011iYR2#198508-198808

FLOOR

main88460-28020iYR2#198508-198808

DEALAR OPTION,RADIATOR

main88460-87007iYR27..CND;YR27..5F..USA198408-198508

DEALER OPTION

sub88450-87002

main88460-95D06iYR3#198608-198703

sub88460-95D07

main88460-95D07iYR3#198703-198808

88463BRACKET, COOLER CONDENSER, NO.1

main88463-28011iYR2#198508-198808

main88463-87008iYR21;YR27..USA198308-198508

main88463-87012iYR27..CND;YR27..5F..USA198408-198508

DEALER OPTION

main88688-95D03iYR3#198608-198808

88463ABRACKET, COOLER CONDENSER, NO.2

main88463-28021iYR2#198508-198808

main88463-87011iYR21;YR27..USA198308-198508

main88463-87013iYR27..CND;YR27..5F..USA198408-198508

DEALER OPTION

88470RECEIVER & DRYER ASSY, COOLER

main88470-14010iYR21;YR27..USA198308-198808

sub04884-33110

88471TANK, RECEIVER AIR CONDITIONER

main88471-28020iYR21;YR27..USA198308-198508

main88471-95D02iYR3#198608-198808

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iYR21;YR27..USA198308-198808

400G

sub90986-02004

sub90986-02005

88648EWIRING, COOLER

main88648-28050iYR21;YR27..USA198308-198508

main88648-28071iYR2#198508-198808

main88648-87018iYR31198608-198808

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-28010iYR21;YR27..USA198308-198508

sub88711-28810

main88711-28040iYR2#198508-198808

main88711-95D11iYR3#198608-198808

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-28020iYR2#198508-198808

W/*ODAC

main88712-87007iYR27..CND198308-198508

sub88712-28350

main88712-87016iYR2#198508-198808

W/SINGLE AIR CONDITIONER

sub88712-28490

main88712-95D03iYR3#198608-198808

88714HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88721-28021iYR2#198508-198711

FR COOLER

main88721-28030iYR2#198711-198808

FR COOLER

main88721-87003iYR27..CND198308-198508

FR COOLER

sub88721-28240

main88721-87005iYR2#198308-198808

RR COOLER

sub88721-28350

main88721-87013iYR3#198608-198808

RR COOLER

sub88721-28310

main88721-95D02iYR3#198608-198808

FR COOLER

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-28010iYR21;YR27..USA198308-198508

main88715-28030iYR2#198508-198808

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-28150iYR2#198508-198808

main88716-87029iYR21..5F198308-198508

main88716-95D07iYR3#198608-198703

sub88716-95D19

main88716-95D19iYR3#198703-198808

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-28070iYR21..5F198408-198508

W/SINGLE AIR CONDITIONER

main88716-87030iYR21198308-198508

*ODAC

main88716-95D08iYR3#198608-198808

88716EPIPE, COOLER REFRIGERANT LIQUID, E

main88716-28060iYR21..5F198408-198508

W/SINGLE AIR CONDITIONER

main88716-28141iYR3#198508-198703

W/*ODAC

sub88716-28142

main88716-28142iYR2#,3#198703-198808

W/*ODAC

main88716-87028iYR21;YR27..USA198308-198508

W/*ODAC

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-28070iYR22;YR29..USA198508-198808

W/*ODAC,MAKER OPTION

sub88717-28130

main88717-28080iYR22;YR29..USA198508-198808

W/COOL BOX

main88717-28130iYR2#198508-198808

W/*ODAC,DEALER OPTION

main88717-28140iYR2#198508-198808

W/SINGLE AIR CONDITIONER

main88717-87015iYR27..5F198408-198508

W/*ODAC,DEALER OPTION

main88717-87026iYR21;YR27..USA198308-198508

W/*ODAC,MAKER OPTION

main88717-87035iYR21..5F198408-198508

W/SINGLE AIR CONDITIONER

main88717-95D03iYR31198608-198808

W/*ODAC,DEALER OPTION

main88717-95D12iYR3#198608-198808

W/SINGLE AIR CONDITIONER

main88717-95D16iYR31198608-198808

W/*ODAC,MAKER OPTION

88717PPIPE, COOLER REFRIGERANT SUCTION, P

main88717-28020iYR21;YR27..USA198308-198508

main88717-28061iYR2#,3#198508-198808

88891APACKING A (FOR COOLER)

main88578-28020iYR2#198508-198808

NO.3

main88578-28030iYR2#198508-198808

NO.4

main88578-28040iYR2#198508-198808

NO.2

main88578-87001iYR27..CND198308-198808

NO.1

sub88899-95407

main88578-87003iYR27..CND198408-198508

NO.2

sub88578-87009

main88578-87003iYR21;YR27..USA198308-198508

NO.3

sub88578-87009

main88578-87004iYR21;YR27..USA198308-198508

NO.4

main88578-87004iYR27..CND198408-198508

NO.3

main88578-87005iYR27..CND198408-198508

NO.4

main88578-87005iYR21;YR27..USA198308-198508

NO.2

main88578-87006iYR21..5F198408-198808

NO.5

88891BPACKING B (FOR COOLER)

main88578-28050iYR21;YR27..USA198308-198808

NO.1

main88578-28060iYR2#198308-198808

NO.2

main88578-28070iYR21;YR27..USA198308-198808

NO.3

main88893-28010iYR27..CND198408-198508

NO.1

main88893-28020iYR27..CND198408-198508

NO.2

sub88893-28010

main88893-28030iYR27..CND198408-198508

NO.3

88892CPLATE, CONDENSER, NO.1

main88362-87001iYR21;YR27..USA198308-198508

88892DPLATE, CONDENSER, NO.2

main88362-87002iYR27..CND198308-198508

8817487005

main88174-87005

8846987002SWITCH, PRESSURE CONTROL

main88469-87002

8856930620CLAMP (FOR COOLER RELAY)

main88569-30620

8868887022BRACKET, COOLER DIAPHRAGM

main88688-87022

8871430290HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-30290

8871487005HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-87005

887183A030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-3A030

8871887030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-87030

8871887031PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-87031

8871887032PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-87032

8871887033PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-87033

9004464009

main90044-64009

9009901499

main90099-01499

9009932123

main90099-32123

9331914016

main93319-14016

9338118035

main93381-18035

9338516012

main93385-16012

9338516016

main93385-16016

9338518014

main93385-18014

9338518016

main93385-18016

9359016035

main93590-16035

42 parts on this diagram · 12 diagrams in section
