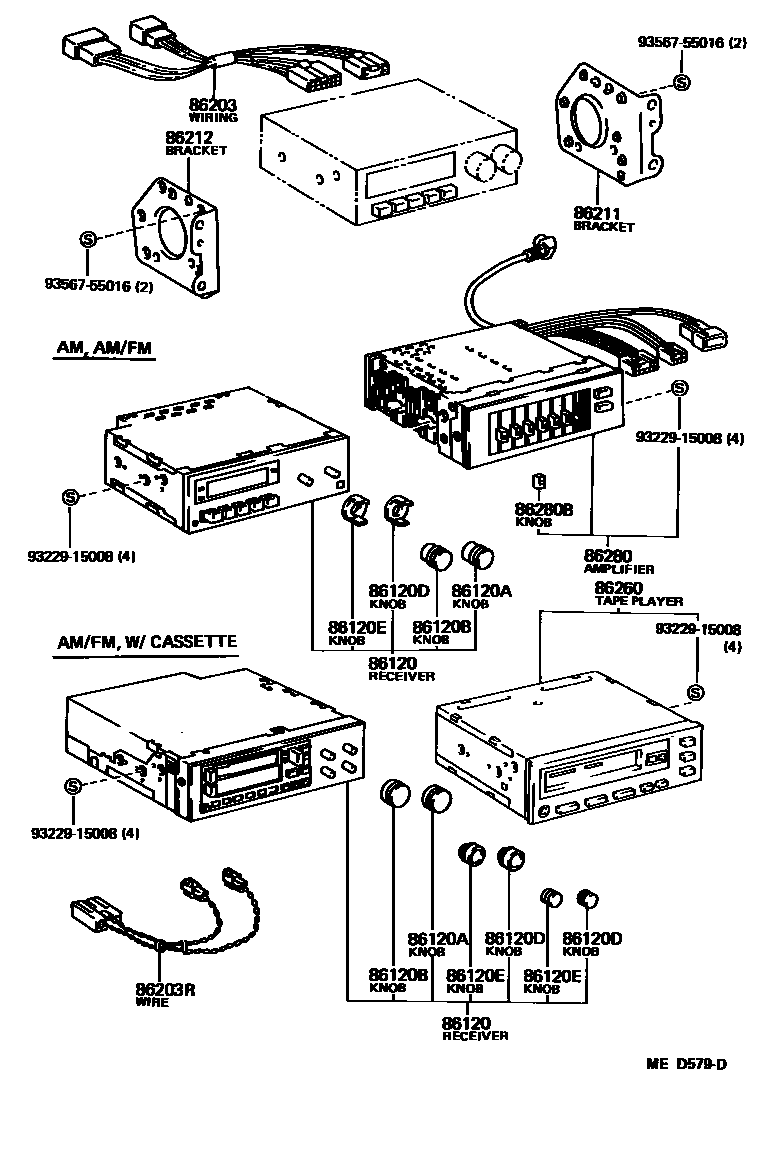

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-12460iYR22,31..LE..CND198708-198808

AM MPX/FM MPX,W/3-SPEAKER

main86120-14371iYR21,22..LE198308-198608

AM/FM,W/CASSETTE,W/*GE

main86120-14420iYR27198311-198406

AM

sub86120-14421

main86120-14421iYR27,29..CND198406-198608

AM

sub86120-10260

sub86203-20180

main86120-14450iYR21198308-198404

AM/FM

sub86120-14451

main86120-14451iYR21198404-198505

AM/FM

sub86120-14452

main86120-14452iYR21198505-198608

AM/FM

main86120-16360iYR22,31..LE..CND198608-198708

AM MPX/FM MPX,W/3-SPEAKER

main86120-16370iYR22,31198608-198708

AM MPX/FM MPX,W/5-SPEAKER

main86120-16371iYR22,31198708-198808

AM MPX/FM MPX,W/5-SPEAKER

main86120-16380iYR22,31198608-198708

AM MPX/FM MPX,W/CASSETTE

main86120-16381iYR22,31198708-198808

AM MPX/FM MPX,W/CASSETTE

main86120-20680iYR22,31..USA198708-198808

AM/FM MPX

main86120-28011iYR21,22198502-198608

AM/FM,W/CASSETTE

main86120-28020iYR22,31..LE198608-198708

AM MPX/FM MPX,W/CASSETTE,W/*GE

main86120-28021iYR22,31..LE198708-198808

AM MPX/FM MPX,W/CASSETTE,W/*GE

main86120-28030iYR22,31..USA198608-198708

AM/FM MPX

86120AKNOB, RADIO RECEIVER SWITCH

main86128-12140iYR22,31..LE..CND198708-198808

AM MPX/FM MPX,W/3-SPEAKER

main86128-14340iYR21..LE198308-198508

AM/FM,W/CASSETTE,*GE

sub86128-14360

main86128-14500iYR27198311-198406

AM

main86128-14500iYR21198308-198404

AM/FM

main86128-14580iYR27,29..CND198406-198608

AM

main86128-14580iYR21,22198404-198608

AM/FM

main86128-14840iYR22,31..LE198608-198708

AM MPX/FM MPX,W/CASSETTE,W/*GE

main86128-14880iYR22,31..LE198708-198808

AM MPX/FM MPX,W/CASSETTE,W/*GE

main86128-28060iYR21,22198308-198608

AM/FM,W/CASSETTE

main86128-30600iYR22,31..USA198608-198708

AM/FM MPX

86120BKNOB, RADIO RECEIVER TUNING, NO.1

main86128-14300iYR21..LE198308-198508

AM/FM,W/CASSETTE,*GE

main86128-14500iYR21198308-198404

AM/FM

main86128-14500iYR27198311-198406

AM

main86128-14580iYR27198406-198608

AM

main86128-14580iYR21,22198404-198608

AM/FM

main86128-28020iYR21,22198308-198608

AM/FM,W/CASSETTE

main86128-30540iYR22,31..USA198608-198808

AM/FM MPX

86120DKNOB, RADIO RECEIVER TONE

main86120-12160iYR22,31..LE..CND198708-198808

AM MPX/FM MPX,W/3-SPEAKER

sub86120-12150

main86128-14200iYR21198308-198404

AM/FM

main86128-14200iYR27198311-198406

AM

main86128-14420iYR21198308-198508

AM/FM,W/CASSETTE,*GE,BASS

main86128-14440iYR21198308-198508

AM/FM,W/CASSETTE,*GE,TREBLE

main86128-14600iYR27,29..CND198406-198608

AM

main86128-14600iYR21,22198404-198608

AM/FM

main86128-14860iYR22,31..LE198608-198808

BASS/BALANCE FOR 86120-28020

main86128-14900iYR22,31..LE198708-198808

BASS/BALANCE FOR 86120-28021

main86128-28080iYR21,22198308-198608

AM/FM,W/CASSETE,BASS

main86128-28120iYR21,22198308-198608

AM/FM,W/CASSETTE,TREBLE

main86128-30580iYR22,31..USA198608-198708

AM/FM MPX

86120EKNOB, RADIO RECEIVER BALANCE

main86128-12180iYR22,31..LE..CND198708-198808

AM MPX/FM MPX,W/3-SPEAKER

main86128-14200iYR21198308-198404

AM/FM,BALANCE

main86128-14420iYR21..LE198308-198508

AM/FM,W/CASSETTE,*GE,FEDER

main86128-14440iYR21..LE198308-198508

AM/FM,W/CASSETTE,*GE,BALANCE

main86128-14600iYR27,29..CND198406-198608

AM,BALANCE

main86128-14600iYR21,22198404-198608

AM/FM,BALANCE

main86128-14860iYR22,31..LE198608-198708

TREBLE/FADER FOR 86120-28020

main86128-14900iYR22,31..LE198708-198808

TREBLE/FADER FOR 86120-28021

main86128-28040iYR21,22198308-198608

AM/FM,W/CASSETTE,BALANCE

main86128-28100iYR21,22198308-198608

AM/FM,W/CASSETTE,FEDER

main86128-30500iYR22,31..USA198608-198708

AM/FM MPX,BALANCE OR FADER

86203WIRE, RADIO

main86203-16060iYR22,31..USA198608-198808

AM/FM MPX

86203RWIRE SUB-ASSY, RR

main86205-28010iYR2#,3#198510-198808

86211BRACKET, RADIO, NO.1

main86211-28010iYR2#,3#198608-198808

main86211-87003iYR2#198308-198608

86212BRACKET, RADIO, NO.2

main86212-28010iYR2#,3#198608-198808

main86212-87002iYR2#198308-198608

86260TAPE PLAYER ASSY

main86260-16140iYR22,31..LE..CND198608-198808

W/3-SPEAKER

main86260-19015iYR22198508-198608

sub86260-90B09

sub86203-16100

sub86203-20180

main86260-20090iYR22,31198608-198808

W/5-SPEAKER

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-19045iYR21,22..LE198308-198808

86280BKNOB, AMPLIFIER GRAPHIC EQUALIZER

main86128-14460iYR21..LE198308-198508

9322915008

main93229-15008

9356755016

main93567-55016

14 parts on this diagram · 2 diagrams in section
