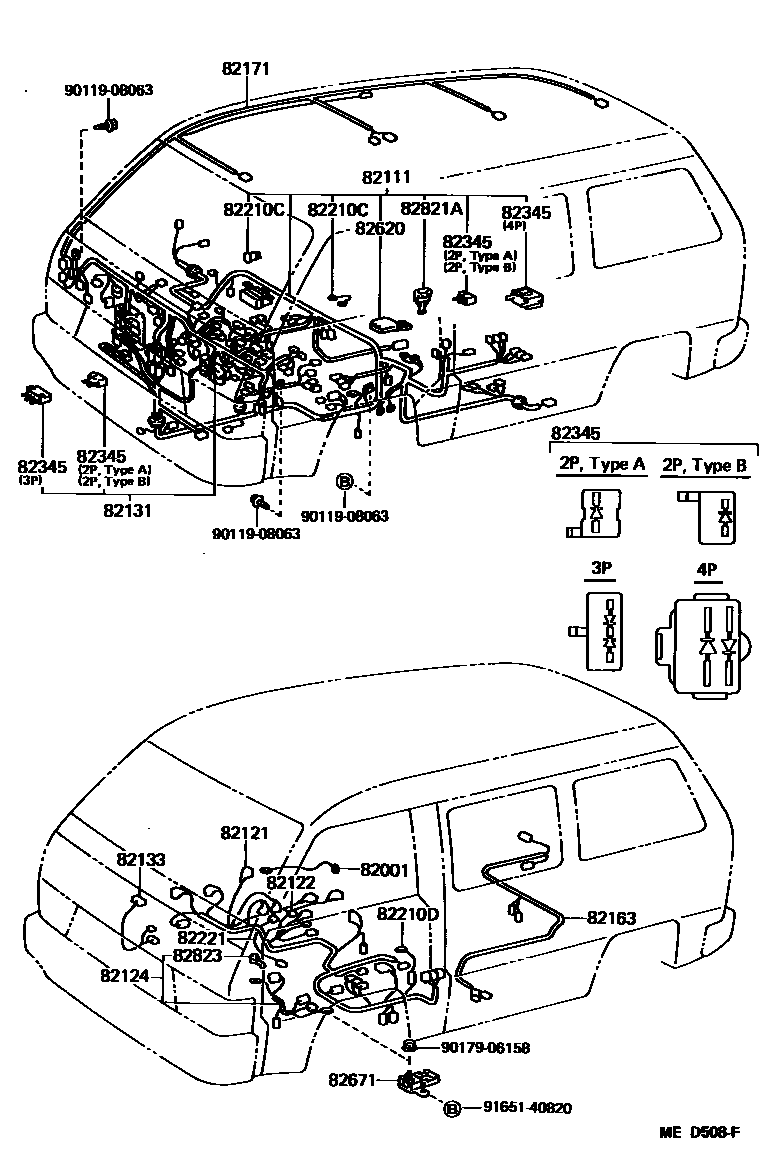

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

82001CABLE, BOND, NO.1

main90980-07213iYR3#..5F198308-198808

sub90980-07254

main90980-07222iYR22,29..5F198308-198808

main90980-07255iYR3#..4FC198608-198808

82111WIRE, ENGINE ROOM MAIN

main82111-28150iYR21..5F198308-198408

main82111-28151iYR21..5F198408-198508

main82111-28152iYR2#..5F198508-198608

main82111-28154iYR2#..5F198608-198708

main82111-28155iYR2#..5F198708-198808

main82111-28160iYR27..5F..USA198308-198408

W/*CRC

main82111-28161iYR27..5F198408-198508

W/*CRC

main82111-28162iYR29..5F..USA198508-198608

W/*AAC

main82111-28170iYR27..4FC..USA198308-198408

main82111-28171iYR21..4FC198408-198508

main82111-28172iYR2#..4FC198508-198608

main82111-28173iYR2#..4FC198608-198708

main82111-28174iYR22..4FC..LE198708-198808

main82111-28180iYR21..4FC198308-198408

W/*CRC

main82111-28181iYR27..4FC198408-198508

W/*CRC

main82111-28182iYR22..4FC..LE198508-198608

W/*AAC

main82111-28190iYR27..5F..CND198311-198408

main82111-28200iYR27..4FC..CND198311-198408

main82111-28310iYR2#..4FC..(DLX,STD)198708-198808

main82111-95D43iYR3#..5F198608-198708

main82111-95D45iYR3#..4FC198608-198708

main82111-95D75iYR3#..5F198708-198808

main82111-95D76iYR3#..4FC198708-198808

82121WIRE, ENGINE

main82121-28010iYR2#198308-198508

main82121-28011iYR2#,3#198508-198708

main82121-28020iYR2#,3#198708-198808

82122WIRE, ENGINE, NO.2

main82122-87007iYR2#,3#198308-198808

82124WIRE, ENGINE, NO.4

main82124-28020iYR2#198308-198408

main82124-28021iYR2#198408-198508

main82124-28022iYR2#198508-198607

sub82124-28023

main82124-28023iYR2#198607-198609

main82124-28024iYR2#198609-198808

main82124-28030iYR2#198308-198408

W/POWER STEERING

main82124-28031iYR2#198408-198508

W/POWER STEERING

main82124-28032iYR2#198508-198607

W/POWER STEERING

sub82124-28033

main82124-28033iYR2#,3#198607-198609

W/POWER STEERING

main82124-28034iYR2#,3#198609-198808

W/POWER STEERING

82131WIRE, COWL

main82131-28150iYR21..DLX198308-198408

main82131-28151iYR21..DLX198408-198508

main82131-28152iYR2#..DLX,STD198508-198608

main82131-28154iYR2#..DLX,STD198608-198708

main82131-28155iYR2#..DLX,STD198708-198808

main82131-28160iYR21..DLX198308-198408

W/*CRC

main82131-28161iYR21..DLX198408-198508

W/*CRC

main82131-28162iYR2#..DLX,STD198508-198608

W/*CRC

main82131-28164iYR2#..DLX,STD198608-198708

W/*CRC

main82131-28165iYR2#..DLX,STD198708-198808

W/*CRC

main82131-28170iYR21..LE198308-198408

main82131-28171iYR21..LE198408-198508

main82131-28180iYR21..LE198308-198408

W/*PW,*SNR OR *RCM

main82131-28181iYR21..LE198408-198508

W/*PW,*SNR OR *RCM

main82131-28190iYR21..LE198308-198408

W/*CRC

main82131-28191iYR21..LE198408-198508

W/*CRC

main82131-28192iYR22..LE198508-198511

sub82131-28193

main82131-28193iYR22..LE198511-198608

main82131-28194iYR22..LE198608-198708

main82131-28195iYR22..4FC..LE198708-198808

main82131-28200iYR27..CND198311-198408

main82131-28201iYR27..CND198408-198508

main82131-28230iYR27..USA198401-198408

W/*PW

main82131-28231iYR27..USA198408-198508

W/*PW

main82131-28240iYR27..USA198401-198408

W/*CRC

main82131-28241iYR27..USA198408-198508

W/*CRC

main82131-28242iYR29..USA198508-198608

W/*PW

main82131-28244iYR29..USA198608-198708

W/*PW

main82131-28245iYR29..USA198708-198808

W/*PW

main82131-28250iYR27..CND198408-198508

W/*CRC

main82131-28310iYR22..5F..LE198708-198808

main82131-95D36iYR32198608-198708

main82131-95D37iYR32198608-198708

W/*CRC

main82131-95D38iYR32..USA198608-198708

W/*PW OR W/*PW & *CRC

main82131-95D39iYR31..4FC198608-198708

main82131-95D40iYR31..5F198608-198708

main82131-95D55iYR3#..DLX,STD198708-198808

main82131-95D56iYR31..DLX198708-198808

W/*CRC

main82131-95D57iYR32..USA198708-198808

W/*PW OR W/*PW & *CRC

main82131-95D58iYR31..4FC..LE198708-198808

main82131-95D59iYR31..5F..USA198708-198808

82133WIRE, COWL, NO.3

main82133-28010iYR29,32..CND198508-198808

W/FR CIGARETTE LIGHTER

main82133-28040iYR22,31..LE198608-198808

W/SATELITE SWITCH

82163WIRE, FLOOR, NO.3

main82163-28030iYR2#198308-198508

main82163-28031iYR2#198508-198808

main82163-95D02iYR3#..5F198608-198708

main82163-95D03iYR3#..4FC198608-198708

main82163-95D07iYR3#..5F198708-198808

main82163-95D08iYR3#..4FC198708-198808

82171WIRE, ROOF, NO.1

main82171-28011iYR29,32198508-198808

main82171-28021iYR22..DLX198508-198608

main82171-28022iYR22,31..DLX198608-198808

main82171-28031iYR22..LE198508-198608

W/*PSR

main82171-28032iYR22,31..LE198608-198808

W/*PSR

main82171-28041iYR22..LE198508-198608

main82171-28042iYR22,31..LE198608-198808

main82171-87001iYR27198311-198408

main82171-87002iYR21198308-198408

main82171-87003iYR21..LE198308-198408

W/*PSR

main82171-87009iYR27198408-198508

main82171-87010iYR21198408-198508

main82171-87012iYR21..LE198408-198508

W/*PSR

82210CFUSIBLE LINK

main90982-08188iYR2#,3#198308-198808

30A,TERM.:FEMALE,PNK,30A

main90982-08189iYR2#,3#198308-198808

40A,TERM.:FEMALE,GRN,40A

main90982-08203iYR2#,3#198308-198808

80A,TERM.:MALE,BLK,80A

main90982-08242iYR2#,3#198508-198808

L=110,1.25(BLACK),1.25 BLACK

82210DFUSIBLE LINK

main90982-08204iYR2#198308-198808

L=110 0.5

82221WIRE, OIL PRESSURE SWITCH

main82221-28010iYR2#,32..DLX,STD198308-198808

main82221-28020iYR21,22,31..LE198308-198808

82345DIODE

main82345-12010iYR2#,3#198308-198808

sub82345-12020

82620BLOCK ASSY, FUSIBLE LINK

main82620-28040iYR2#,3#198508-198808

82671BLOCK, JUNCTION

main82671-28010iYR2#,3#198308-198701

main82671-28020iYR2#,3#198701-198808

82821ACOVER, CONNECTOR

main82821-28020iYR2#,3#198710-198808

82823CAP, TERMINAL, NO.1

main82823-22060iYR2#,3#198608-198808

ALTERNATOR(B)TERMINAL

9011908063

main90119-08063

9017906158

main90179-06158

9165140820

main91651-40820

20 parts on this diagram · 7 diagrams in section
