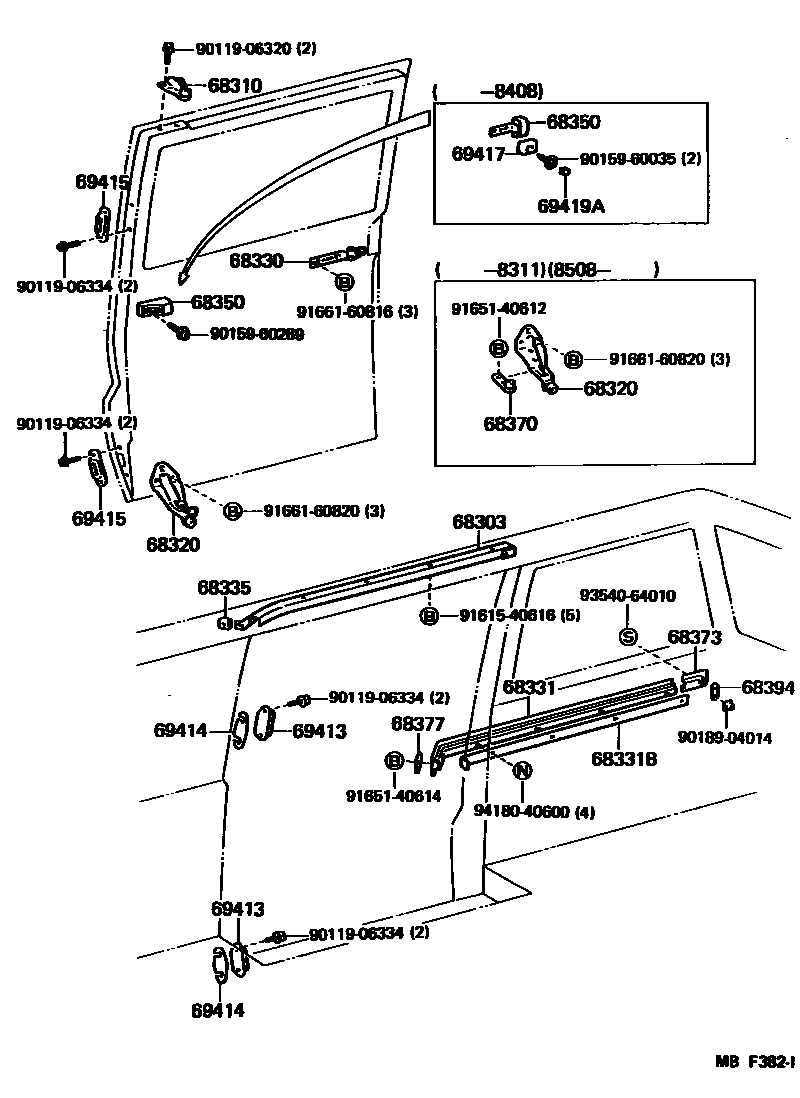

SLIDE ROLLER & RAIL

68303RAIL SUB-ASSY, SLIDE DOOR, UPPER

main68308-87001iYR2#,3#198308-198808

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-87001iYR2#,3#198308-198808

68320ROLLER ASSY, SLIDE DOOR, LOWER

main68350-87001iYR2#,3#198308-198808

main68350-87002iYR2#198311-198508

68330ROLLER ASSY, SLIDE DOOR, CENTER

main68330-87001iYR2#198308-198408

sub68330-87002

main68330-87002iYR2#,3#198408-198808

68331RAIL, SLIDE DOOR, CENTER

main68303-87001iYR2#,3#198308-198808

sub68303-87002

68331BPAD, SLIDE DOOR CENTER RAIL

main68367-87002iYR2#,3#198308-198808

68335PAD, SLIDE DOOR UPPER RAIL

main69243-87002iYR2#,3#198308-198808

68350STOPPER ASSY, SLIDE DOOR OPEN

main69418-87001iYR2#198308-198408

main69418-87003iYR2#,3#198408-198808

68370ROLLER ASSY, SLIDE DOOR, LOWER SUB

main68370-87001iYR21198308-198808

sub68350-87002

sub68360-87002

68373MOULDING, SLIDE RAIL END, RH

main68373-87001iYR2#,3#198308-198808

68377PAD, SLIDE DOOR CENTER RAIL, FRONT

main68377-87001iYR2#,3#198308-198808

68394PROTECTOR, SLIDE RAIL END MOULDING

main68394-87002iYR21198308-198309

69413STOP, SLIDE DOOR DOWN MALE

main69416-87001iYR2#,3#..DLX,STD198308-198808

sub69416-87002

main69416-87001iYR27,29,32..USA198402-198808

W/*EL

sub69416-87002

69414SHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iYR21,22,31..LE198308-198808

main69418-95700iYR27,29,32..USA198402-198808

W/*EL

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-87001iYR21,22,31..LE198308-198808

main69415-87001iYR27,29,32..USA198402-198808

W/*EL

69417COVER, SLIDE DOOR OPEN STOP

main69417-87001-03iYR21..LE198308-198408

GRAY,GRAY,TRIM1#

main69417-87001-05iYR2#198308-198408

BEIGE,BEIGE,TRIM4#

69419APLUG, SLIDE DOOR OPEN STOP COVER

main69419-87001-03iYR21..LE198308-198408

GRAY,GRAY,TRIM1#

main69419-87001-05iYR2#198308-198408

BEIGE,BEIGE,TRIM4#

9011906320

main90119-06320

9011906334

main90119-06334

9015960035

main90159-60035

9015960289

main90159-60289

9018904014

main90189-04014

9161540616

main91615-40616

9165140612

main91651-40612

9165140614

main91651-40614

9166160816

main91661-60816

9166160820

main91661-60820

9354064010

main93540-64010

9418040600

main94180-40600

29 parts on this diagram · 1 diagram in section
