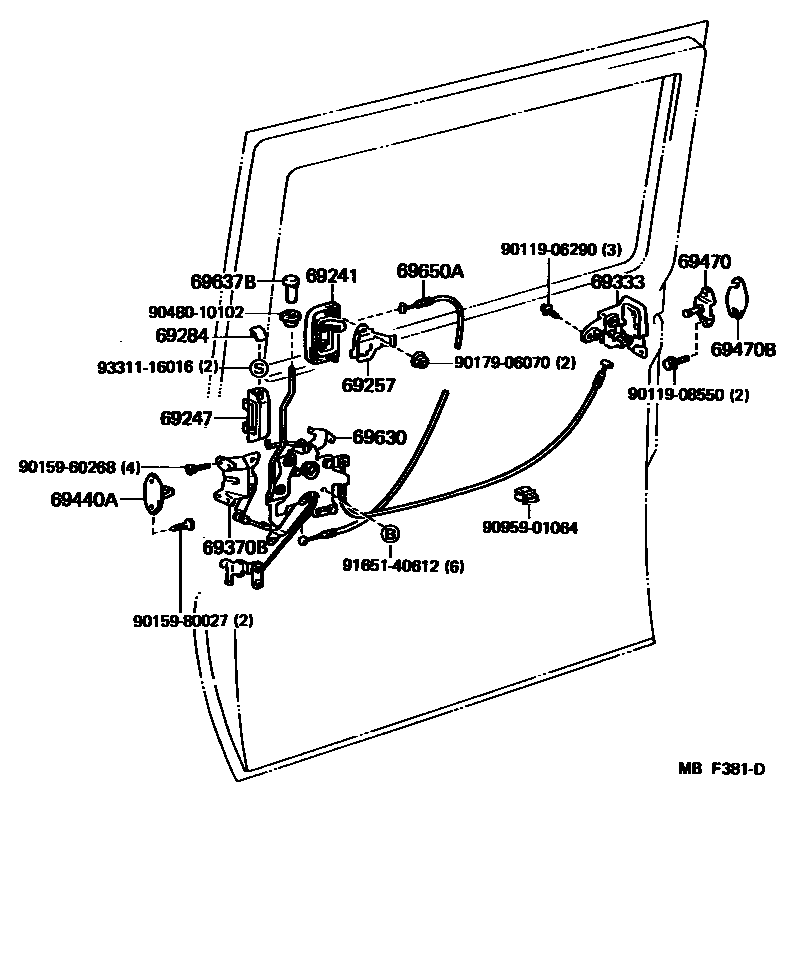

REAR DOOR LOCK & HANDLE

69241HANDLE ASSY, SLIDE DOOR OUTSIDE, RH

main69230-28010iYR2#,3#198308-198808

69247HANDLE, SLIDE DOOR INSIDE, RH

main69270-28010-03iYR2#,3#198708-198808

GRAY,GRAY,TRIM1#

main69270-28010-03iYR21,22,29,3#..LE,STD198308-198708

GRAY,GRAY,TRIM1#,4#,8#

main69270-28010-05iYR27..USA198308-198408

BEIGE,BEIGE,TRIM4#

main69270-28010-15iYR21198408-198508

BEIGE,BEIGE,TRIM4#

main69270-28010-25iYR2#,3#198508-198808

BEIGE,BEIGE,TRIM4#

main69270-87001-05iYR27..CND198311-198408

BEIGE,BEIGE,TRIM4#

main69270-87001-15iYR27..CND198408-198508

BEIGE,BEIGE,TRIM4#

69257BRACKET, SLIDE DOOR OUTSIDE HANDLE

main69257-28010iYR2#,3#198308-198808

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-87001-03iYR2#,3#198708-198808

GRAY,GRAY,TRIM1#

main69284-87001-03iYR21,22,29,3#..LE,STD198308-198708

GRAY,GRAY,TRIM1#,4#,8#

main69284-87001-05iYR2#198308-198408

BEIGE,BEIGE,TRIM4#

main69284-87001-15iYR2#198408-198508

BEIGE,BEIGE,TRIM4#

main69284-87001-25iYR2#,3#198508-198808

BEIGE,BEIGE,TRIM4#

69333LOCK ASSY, SLIDE DOOR, RH

main69330-87001iYR2#,3#198308-198808

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-28020iYR2#,3#198308-198808

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28010iYR2#,3#198308-198808

sub69440-46010

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-87001iYR2#,3#198408-198808

sub69470-95D00

main69470-95J00iYR2#198308-198408

sub69470-87001

69470BSPACER, SLIDE DOOR LOCK STRIKER

main69413-87002iYR2#,3#198508-198808

sub69413-28020

main69473-95700iYR2#198308-198508

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-28010iYR21..DLX198308-198408

main69630-28011iYR21,22,31..DLX198408-198808

main69630-28020iYR27..USA198402-198408

W/*EL

main69630-28020iYR21..LE198308-198408

main69630-28021iYR27,29,32..USA198408-198808

W/*EL

main69630-28030iYR27..CND198311-198408

main69630-28031iYR27,29,32..CND198408-198808

69637BBUTTON, DOOR LOCKING(FOR SLIDE DOOR)

main69741-28010iYR2#,3#198308-198808

69650ACABLE ASSY, SLIDE DOOR LOCK CONTROL

main69650-28010iYR21,22,31198308-198808

9011906290

main90119-06290

9011908550

main90119-08550

9015960268

main90159-60268

9015980027

main90159-80027

9017906070

main90179-06070

9048010102

main90480-10102

9095901064

main90959-01064

9165140612

main91651-40612

9331116016

main93311-16016

21 parts on this diagram · 1 diagram in section
