FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51296ABOLT, ENGINE FRONT SUPPORT MEMBER
RH
LH
53287ACOVER, COOLER PIPE HOLE
53701APRON SUB-ASSY, FRONT FENDER, RH
sub53701-87010
53702APRON SUB-ASSY, FRONT FENDER, LH
53713APRON, FENDER SIDE, RH
53885CSEAL, FENDER APRON MUDGUARD, RH
53886CSEAL, FENDER APRON MUDGUARD, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57119APLATE, FRONT SIDE MEMBER, FRONT RH
57129APLATE, FRONT SIDE MEMBER, FRONT LH
57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER
RH
LH
57411PLATE, FLOOR SIDE RAIL, RH
57412PLATE, FLOOR SIDE RAIL, LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
sub57418-87002
57423BRACKET, FRONT FLOOR REINFORCEMENT, RH
57424BRACKET, FRONT FLOOR REINFORCEMENT, LH
58111PAN, FRONT FLOOR
sub58111-28090
sub58111-28090
W/FOOTREST
W/COOL BOX
W/FOOTREST,COOL BOX
W/FOOTREST
W/FOOTREST,COOL BOX
58191FOOTREST, FRONT FLOOR
58440COVER ASSY, BATTERY SERVICE HOLE
58445PACKING, BATTERY SERVICE HOLE COVER
76073PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, RH
76074PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, LH
76620FPROTECTOR ASSY, STEERING MAIN SHAFT, LH
9004871100
main90048-71100
9010511003
main90105-11003
9011906157
main90119-06157
9011908143
main90119-08143
9011910032
main90119-10032
9012206008
main90122-06008
9015960070
main90159-60070
9017910076
main90179-10076
9046705022
main90467-05022
9046712123
main90467-12123
9095001004
main90950-01004
9095001006
main90950-01006
9095001008
main90950-01008
9095001011
main90950-01011
9095001038
main90950-01038
9095001060
main90950-01060
9095001061
main90950-01061
9095001065
main90950-01065
9095001112
main90950-01112
9095001133
main90950-01133
9095001181
main90950-01181
9095001388
main90950-01388
9095011003
main90950-11003
9165140612
main91651-40612
9165140614
main91651-40614
9165140820
main91651-40820
9165141025
main91651-41025
9166540616
main91665-40616
9461311001
main94613-11001

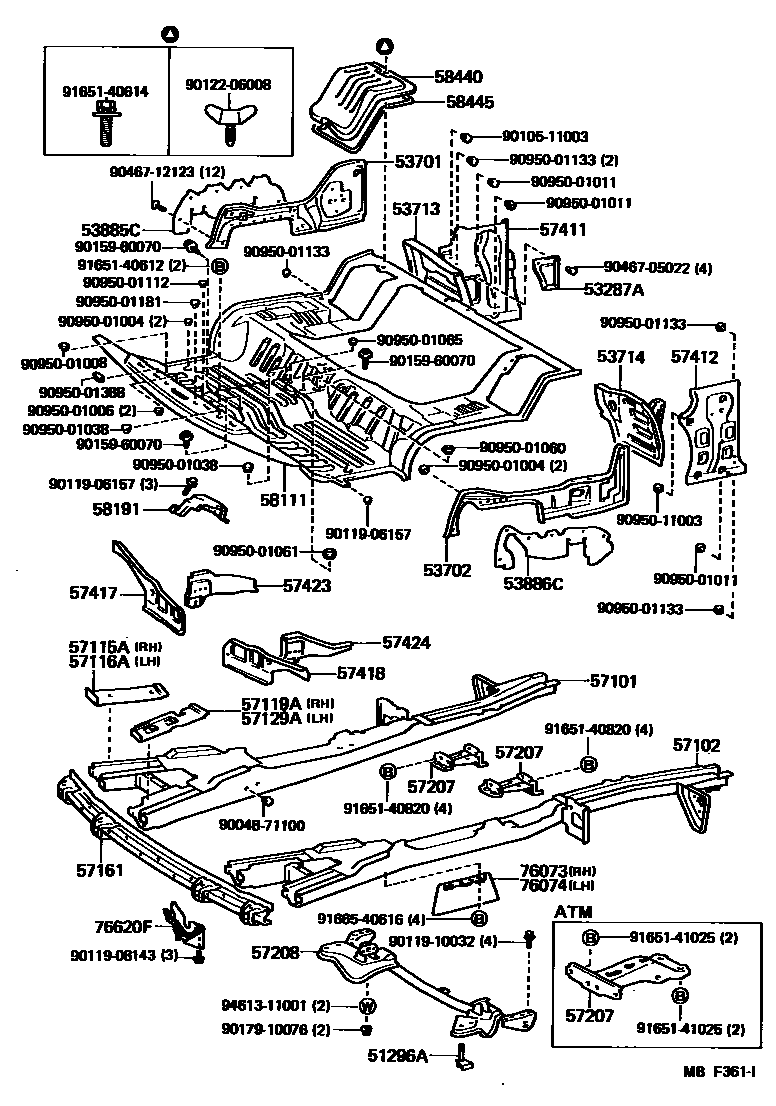

59 parts on this diagram · 3 diagrams in section
