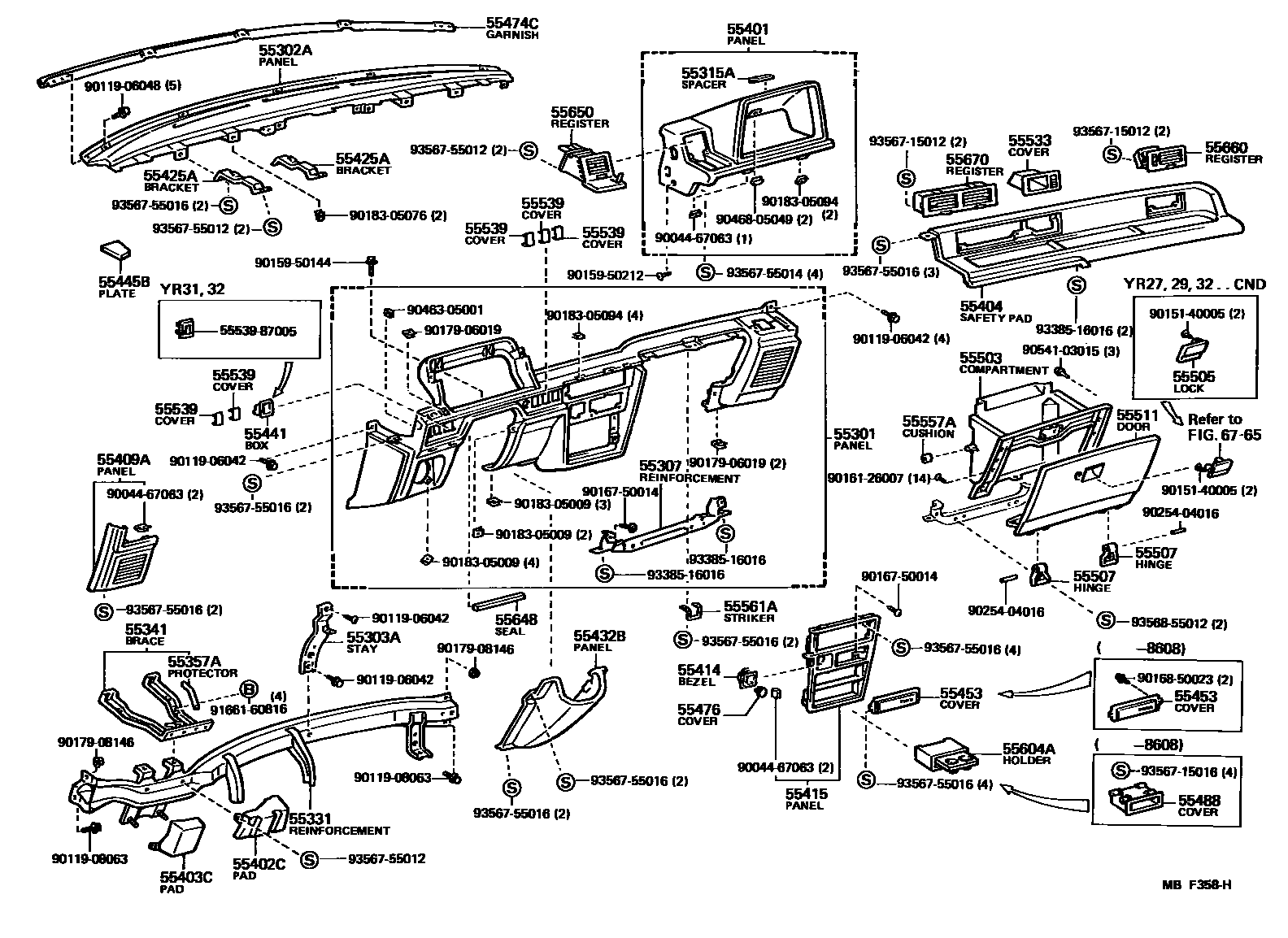

INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55301-28010-02iYR2#..DLX,STD198308-198408

WINE,RED/MAROON,TRIM4#

main55301-28010-03iYR21..LE198308-198408

GRAY,GRAY,TRIM1#

main55301-28010-04iYR21..LE198408-198508

BLUE,BLUE,TRIM1#

main55301-28010-05iYR21..LE198308-198408

BEIGE,BEIGE,TRIM4#

main55301-28020-04iYR2#..LE,STD198508-198603

BLUE,BLUE,TRIM4#,8#

main55301-28020-06iYR2#,3#198508-198808

BROWN,BROWN,TRIM4#

main55301-28020-13iYR29198603-198608

GRAY,SHADOW GRAY,TRIM1#

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-28020iYR2#198308-198508

main55302-28040iYR2#,3#198508-198808

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-28010iYR2#,3#198308-198808

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-87001iYR2#,3#198308-198808

55315ASPACER, INSTRUMENT PANEL, NO.1

main55316-87001×2iYR2#,3#198308-198808

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-28020iYR2#198308-198508

main55305-28030iYR2#,3#198508-198808

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-28010iYR2#,3#198308-198808

55357APROTECTOR, EDGE, NO.1

main55358-28010×4iYR2#,3#198508-198808

main55358-28020×4iYR2#198308-198508

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55404-28010iYR2#..DLX,STD198308-198408

WINE

main55404-28010-02iYR2#198408-198508

WINE,RED/MAROON,TRIM4#

main55404-28010-03iYR29198603-198608

GRAY,SHADOW GRAY,TRIM4#

main55404-28010-04iYR21..LE198408-198508

BLUE,BLUE,TRIM1#

main55404-28010-06iYR2#,3#198508-198808

BROWN,BROWN,TRIM4#

main55404-28010-14iYR2#..LE,STD198508-198603

BLUE,BLUE,TRIM4#,8#

main55404-28020-02iYR21..LE198308-198408

WINE,RED/MAROON,TRIM4#

main55404-28020-04iYR21..LE198308-198408

BLUE,BLUE,TRIM1#

55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH

main55402-28010iYR2#,3#198308-198808

55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55403-28010iYR2#198308-198508

main55403-28020iYR2#,3#198508-198808

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-28010iYR2#..DLX,STD198308-198408

main55401-28010-02iYR2#198408-198508

WINE,WINE,TRIM4#

main55401-28010-04iYR21..LE198408-198508

BLUE,BLUE,TRIM1#

main55401-28020-03iYR21..LE198308-198408

GRAY & BLUE,GRAY,TRIM1#

main55401-28020-05iYR21..LE198308-198408

BEIGE & WINE,BEIGE,TRIM4#

main55401-28030-03iYR29198603-198608

GRAY,SHADOW GRAY,TRIM4#

main55401-28030-04iYR2#..LE,STD198508-198603

BLUE,BLUE,TRIM4#,8#

main55401-28030-06iYR2#,3#198508-198808

BROWN,BROWN,TRIM4#

main55401-28040-03iYR29..USA198603-198608

W/RR COOLER,GRAY,SHADOW GRAY,TRIM4#

main55401-28040-04iYR22..LE198508-198608

W/RR COOLER,BLUE,BLUE,TRIM8#

main55401-28040-06iYR22..LE198508-198608

W/RR COOLER,BROWN,BROWN,TRIM4#

55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER

main55408-28010-02iYR2#198408-198508

WINE,RED/MAROON,TRIM4#

main55408-28010-03iYR21..LE198308-198408

GRAY,GRAY,TRIM1#

main55408-28010-04iYR21..LE198408-198508

BLUE,BLUE,TRIM1#

main55408-28010-05iYR21..LE198308-198408

BEIGE,BEIGE,TRIM4#

main55408-28020-04iYR2#..LE,STD198508-198603

BLUE,BLUE,TRIM4#,8#

main55408-28020-06iYR2#,3#198508-198808

BROWN,BROWN,TRIM4#

main55408-28020-13iYR2#,3#198708-198808

GRAY,SHADOW GRAY,TRIM1#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-87001iYR2#,3#198308-198808

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55405-28010-01iYR2#198408-198608

BLACK,BLACK,TRIM1#,4#

sub55405-28011

main55405-28010-02iYR21..LE198308-198408

WINE,WINE,TRIM4#

sub55405-28011

main55405-28010-04iYR21..LE198308-198408

BLUE,BLUE,TRIM1#

sub55405-28011

main55405-28020iYR2#,3#198608-198808

55425ABRACKET, METER HOOD SET

main55425-87001×2iYR2#,3#198308-198808

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-87003-02iYR27..USA198402-198408

W/*TIS,WINE,RED/MAROON,TRIM4#

main55432-87003-03iYR21..LE198308-198408

W/*TIS,GRAY,GRAY,TRIM1#

main55432-87003-04iYR21..LE198408-198508

W/*TIS,BLUE,BLUE,TRIM1#

main55432-87003-05iYR21..LE198308-198408

W/*TIS,BEIGE,BEIGE,TRIM4#

main55432-87004-02iYR2#..DLX,STD198308-198508

WINE,RED/MAROON,TRIM4#

main55432-87005-04iYR2#..LE,STD198508-198603

W/*TIS,BLUE,BLUE,TRIM4#,8#

main55432-87005-06iYR2#,3#198508-198808

W/*TIS,BROWN,BROWN,TRIM4#

main55432-87005-13iYR29198603-198608

W/*TIS,GRAY,SHADOW GRAY,TRIM4#

main55432-87006-03iYR29,3#198603-198808

GRAY,SHADOW GRAY,TRIM1#,4#

main55432-87006-04iYR29198508-198603

BLUE,BLUE,TRIM4#

main55432-87006-06iYR2#,3#..DLX,STD198508-198808

BROWN,BROWN,TRIM4#

55441BOX, INSTRUMENT PANEL

main58824-87002iYR3#..5F198608-198808

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-87001×2iYR2#,3#198308-198808

55453COVER, RADIO TUNER OPENING

main55522-12100iYR2#..DLX,STD198308-198608

main55522-32010iYR2#,3#..DLX,STD198608-198808

sub55522-20070

55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1

main55476-28010iYR2#,3#198308-198808

55476COVER, CIGARETTE LIGHTER HOLE

main55477-10010-01iYR27..CND198311-198508

BLACK

55488COVER, STEREO OPENING

main55521-87002iYR2#198308-198608

sub55521-28020

55503COMPARTMENT SUB-ASSY, GLOVE

main55581-87002iYR2#,3#198308-198808

55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR

main55560-16010-02iYR27..CND198311-198408

WINE,RED/MAROON,TRIM4#

main55560-16010-13iYR29,32198603-198808

GRAY,GRAY,TRIM1#,4#

main55560-16010-16iYR29,32198508-198808

BROWN,BROWN,TRIM4#

main55560-16010-24iYR29198508-198603

BLUE,BLUE,TRIM4#

55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR

main55573-32010iYR2#,3#198308-198808

LH

main55573-87001iYR2#,3#198308-198808

RH

55511DOOR, GLOVE COMPARTMENT

main55511-28010-02iYR2#198408-198508

WINE,RED/MAROON,TRIM4#

main55511-28010-03iYR21..LE198308-198408

GRAY,GRAY,TRIM1#

main55511-28010-04iYR21..LE198408-198508

BLUE,BLUE,TRIM1#

main55511-28010-05iYR21..LE198308-198408

BEIGE,BEIGE,TRIM4#

main55511-28010-06iYR2#,3#198508-198808

W/KEY,BROWN,BROWN,TRIM4#

main55511-28010-13iYR2#,3#198708-198808

W/KEY,GRAY,SHADOW GRAY,TRIM1#

main55511-28010-14iYR2#..LE,STD198508-198603

W/*KEY,BLUE,BLUE,TRIM4#,8#

main55511-28020iYR27..CND198311-198408

WINE

main55511-28020-03iYR29,32198603-198808

GRAY,SHADOW GRAY,TRIM1#,4#

main55511-28020-04iYR29198508-198603

BLUE,BLUE,TRIM4#

main55511-28020-06iYR29,32198508-198808

BROWN,BROWN,TRIM4#

55533COVER, AUTO CLOCK HOLE

main55423-28010-02iYR21..LE198308-198508

WINE,RED/MAROON,TRIM4#

main55423-28010-04iYR21..LE198308-198508

BLUE,BLUE,TRIM1#

main55423-28020-03iYR22,31..LE198508-198808

GRAY,SHADOW GRAY,TRIM1#,8#

main55423-28020-04iYR22..LE198508-198608

BLUE,BLUE,TRIM8#

main55423-28020-06iYR22,31..LE198508-198808

BROWN,BROWN,TRIM4#

main55533-28010iYR2#..DLX,STD198308-198508

main55533-28020-03iYR29198603-198608

GRAY,SHADOW GRAY,TRIM4#

main55533-28020-04iYR29198508-198603

BLUE,BLUE,TRIM4#

main55533-28020-06iYR2#,3#..DLX,STD198508-198808

BROWN,BROWN,TRIM4#

55539COVER, SPARE SWITCH HOLE

main55539-24010-01×5iYR2#198308-198408

BLACK,BLACK,TRIM1#,4#

sub55539-14030

sub55539-20030

main55539-32010-01×5iYR2#,3#198408-198808

BLACK,BLACK,TRIM1#,4#

sub55539-32030

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-16010×2iYR2#198308-198408

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-32010iYR2#,3#198308-198808

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-28010iYR2#,3#198608-198808

55648SEAL, INSTRUMENT PANEL UNDER COVER, NO.1

main55648-87001iYR21198308-198408

W/*TIS

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-28010-02iYR2#198308-198508

WINE,RED/MAROON,TRIM4#

main55650-28010-04iYR21..LE198308-198508

BLUE,BLUE,TRIM1#

main55650-28020-03iYR2#,3#..LE,STD198608-198708

GRAY,SHADOW GRAY,TRIM1#

main55650-28020-04iYR22..LE198603-198608

BLUE,BLUE,TRIM8#

main55650-28020-06iYR2#,3#198508-198808

BROWN,BROWN,TRIM4#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-28010-02iYR2#198308-198508

WINE,RED/MAROON,TRIM4#

main55660-28010-04iYR21..LE198308-198508

BLUE,BLUE,TRIM1#

main55660-28020-03iYR2#,3#..LE,STD198608-198708

GRAY,SHADOW GRAY,TRIM1#

main55660-28020-04iYR22..LE198603-198608

BLUE,BLUE,TRIM8#

main55660-28020-06iYR2#,3#198508-198808

BROWN,BROWN,TRIM4#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-28010-03iYR2#,3#198708-198808

GRAY,SHADOW GRAY,TRIM1#

main55670-28010-06iYR2#,3#198608-198808

BROWN,BROWN,TRIM4#

main55670-87001-02iYR2#198308-198508

WINE,RED/MAROON,TRIM4#

main55670-87001-04iYR21..LE198308-198508

BLUE,BLUE,TRIM1#

main55670-87002-03iYR29198603-198608

GRAY,SHADOW GRAY,TRIM4#

main55670-87002-04iYR22..LE198603-198608

BLUE,BLUE,TRIM8#

main55670-87002-06iYR2#198508-198608

BROWN,BROWN,TRIM4#

6765

5553987005COVER, SPARE SWITCH HOLE

main55539-87005

9004467063

main90044-67063

9011906042

main90119-06042

9011906048

main90119-06048

9011908063

main90119-08063

9015140005

main90151-40005

9015950144

main90159-50144

9015950212

main90159-50212

9016126007

main90161-26007

9016750014

main90167-50014

9016850023

main90168-50023

9017906019

main90179-06019

9017908146

main90179-08146

9018305009

main90183-05009

9018305076

main90183-05076

9018305094

main90183-05094

9025404016

main90254-04016

9046305001

main90463-05001

9046805049

main90468-05049

9054103015

main90541-03015

9166160816

main91661-60816

9338516016

main93385-16016

9356715012

main93567-15012

9356715016

main93567-15016

9356755012

main93567-55012

9356755014

main93567-55014

9356755016

main93567-55016

9356855012

main93568-55012

65 parts on this diagram · 1 diagram in section
