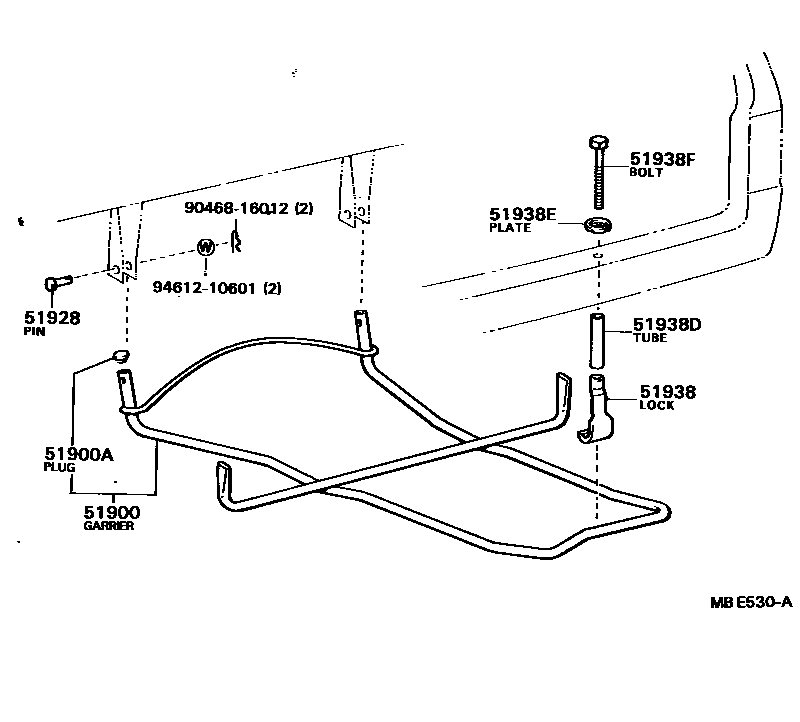

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-28020iYR21,22,27198308-198808

sub51900-28021

main51900-28030iYR29198508-198808

main51900-28050iYR3#198608-198808

51900APLUG, HOLE(FOR SPARE WHEEL CARRIER)

main90950-01591iYR22198702-198808

main90950-01592iYR29,3#198702-198808

51928PIN, SPARE WHEEL CARRIER

main90240-06002iYR2#,3#198308-198808

51938LOCK, SPARE WHEEL CARRIER

main51938-28020iYR2#198308-198511

sub51938-22020

main51938-28030iYR2#,3#198511-198808

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17033iYR29198308-198808

L=80.5

main90440-17036iYR3#198608-198808

L=58

main90440-17037iYR2#198508-198808

L=113.5

main90440-17038iYR22198608-198808

L=95

51938EPLATE, SPARE WHEEL CARRIER LOCK

main51937-26010iYR2#,3#198308-198808

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90101-12007iYR22198608-198808

L=187.5

main90101-12101iYR22..DLX198308-198808

L=172

main90101-12124iYR2#198508-198808

L=205.5

main90101-12125iYR3#198608-198808

L=150

9046816012

main90468-16012

9461210601

main94612-10601

9 parts on this diagram · 1 diagram in section
