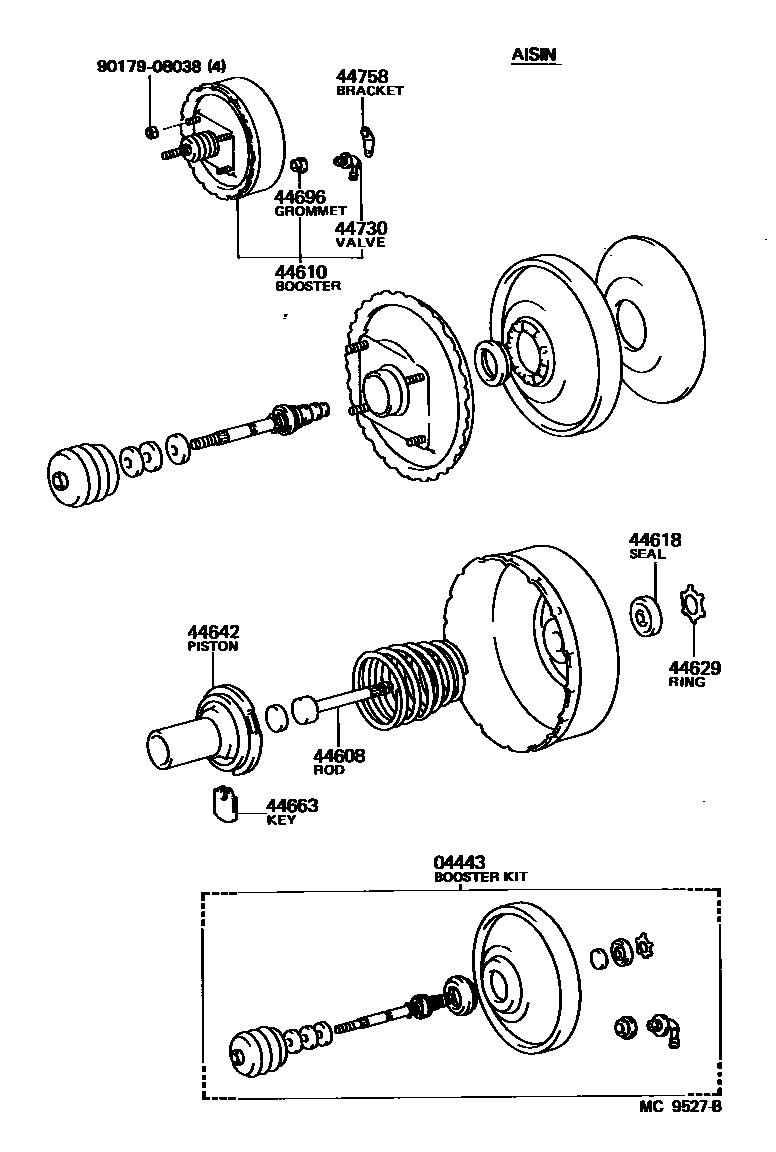

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04443BOOSTER KIT, BRAKE

main04443-28070iYR2#198308-198404

AISIN

sub04443-28071

main04443-28080iYR2#198308-198404

JKC

sub04443-28081

main04443-28140iYR2#198404-198408

AISIN

main04443-28150iYR2#198404-198408

JKC

sub04443-28151

main04443-28151iYR2#198408-198508

JKC

main04443-28200iYR2#,3#198508-198808

JKC

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-20800iYR2#,3#198508-198808

AISIN

main44606-32010iYR2#198308-198408

AISIN

main44608-17090iYR2#,3#198709-198808

JKC

main44608-20810iYR2#,3#198508-198709

JKC

main44608-32020iYR2#198308-198508

JKC

44610BOOSTER ASSY, BRAKE

main44610-28230iYR2#198308-198404

sub44610-28231

main44610-28250iYR2#198404-198408

sub44610-28261

main44610-28261iYR2#198408-198508

main44610-28300iYR2#198508-198604

main44610-28460iYR2#,3#198604-198808

sub44610-28300

44618SEAL, BOOSTER BODY

main44621-14030iYR2#,3#198508-198808

main44621-28120iYR2#198308-198408

44629RING, CIRCULAR INTERNAL

main44628-28120iYR2#198308-198408

main44628-60010iYR2#,3#198508-198808

44642PISTON, BRAKE BOOSTER

main44642-20800iYR2#,3#198508-198808

AISIN

main44642-32010iYR2#198308-198404

AISIN

main44642-32030iYR2#198404-198408

AISIN

44663KEY, VALVE STOPPER

main44635-20800iYR2#,3#198508-198808

main44635-28120iYR2#198308-198408

44696GROMMET, CHECK VALVE

main90480-24015iYR2#,3#198705-198808

JKC

main90480-24439iYR2#,3#198308-198808

AISIN

main90480-24517iYR2#,3#198308-198705

JKC

sub90480-24015

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iYR2#,3#198508-198808

AISIN

main44730-14060iYR2#,3#198508-198705

JKC

sub44730-28010

sub90480-24015

main44730-20060iYR2#198308-198408

AISIN

main44730-22090iYR2#198308-198508

JKC

main44730-28010iYR2#,3#198705-198808

JKC

44758BRACKET, VACUUM CHECK VALVE

main44758-28020iYR2#198308-198508

main44758-28070iYR2#,3#198508-198808

9017908038

main90179-08038

11 parts on this diagram · 6 diagrams in section
