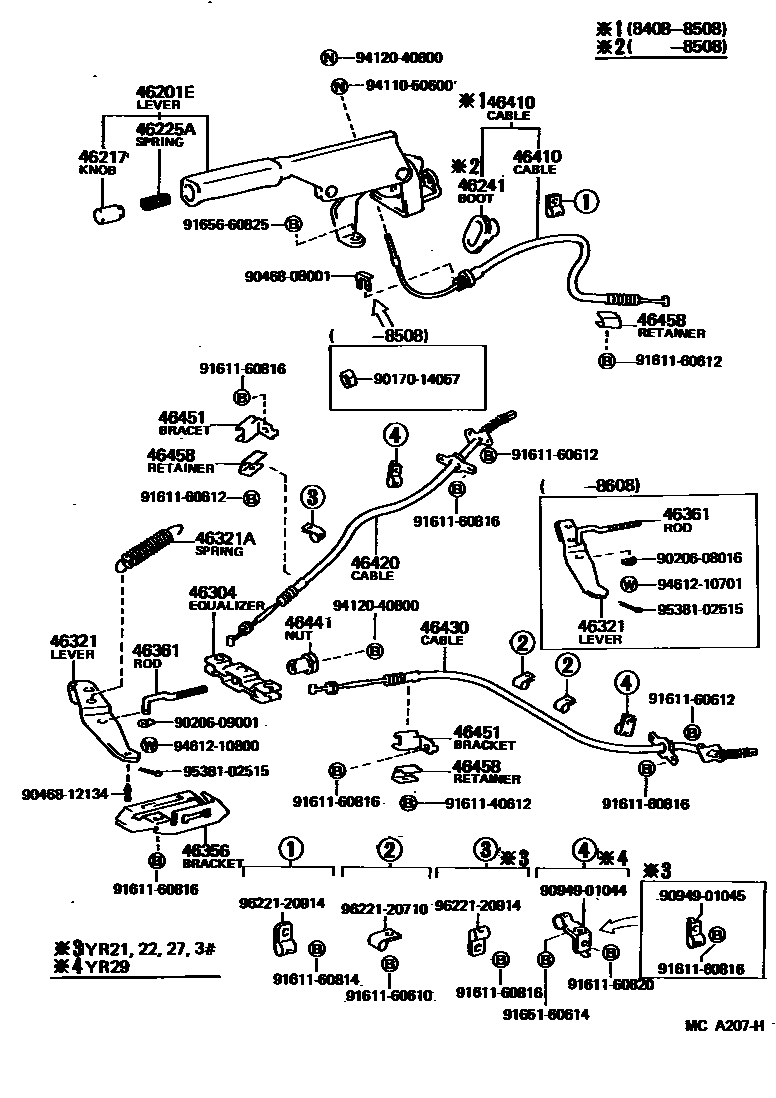

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-28020-02iYR27..CND198311-198508

WINE,WINE,TRIM4#

sub46201-28020

main46201-28021-03iYR29,32198603-198802

GRAY,SHADOW GRAY,TRIM1#,4#

sub46201-28022

main46201-28021-04iYR29198508-198603

BLUE,BLUE,TRIM4#

sub46201-28022

main46201-28021-05iYR29,32198508-198802

BEIGE,BEIGE,TRIM4#

sub46201-28022

main46201-28022-03iYR29,32198802-198808

GRAY,SHADOW GRAY,TRIM1#

sub46201-28022

main46201-28022-04iYR29,32198802-198808

BLUE

sub46201-28022

main46201-28022-05iYR29,32198802-198808

BEIGE

sub46201-28022

main46201-28040-02iYR21;YR27..USA198408-198508

WINE,WINE,TRIM4#

sub46201-28040

main46201-28040-03iYR21..LE198308-198408

GRAY,GRAY,TRIM1#

sub46201-28040

main46201-28040-04iYR21..LE198408-198508

BLUE,BLUE,TRIM1#

sub46201-28040

main46201-28040-05iYR21;YR27..USA198308-198408

BEIGE,BEIGE,TRIM4#

sub46201-28040

main46201-28041-03iYR22,31..LE198608-198802

URETHAN TYPE,GRAY,SHADOW GRAY,TRIM1#

sub46201-28042

main46201-28041-03iYR29,32..USA198603-198802

URETHAN TYPE,GRAY,SHADOW GRAY,TRIM1#,4#

sub46201-28042

main46201-28041-04iYR29..USA198508-198608

URETHAN TYPE,BLUE,BLUE,TRIM4#

sub46201-28042

main46201-28041-05iYR22,31;YR29,32..USA198508-198802

URETHAN TYPE,BEIGE,BEIGE,TRIM4#

sub46201-28042

main46201-28042-03iYR29,32..USA198802-198808

URETHAN TYPE,GRAY,SHADOW GRAY,TRIM1#

sub46201-28042

main46201-28042-04iYR22..DLX198802-198808

URETHAN TYPE,BLUE,BLUE,TRIM8#

sub46201-28042

main46201-28042-05iYR22..DLX198802-198808

URETHAN TYPE,BEIGE,BEIGE,TRIM4#

sub46201-28042

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-02iYR2#198408-198504

WINE,RED/MAROON,TRIM4#

sub46217-10020

sub46217-20020

main46217-10020-13iYR2#,3#198802-198808

GRAY,GRAY,TRIM1#

sub46217-10020

sub46217-20020

main46217-10020-24iYR21..LE198408-198504

BLUE,BLUE,TRIM1#

sub46217-10020

sub46217-20020

main46217-10020-25iYR2#198308-198408

BEIGE,BEIGE,TRIM4#

sub46217-10020

sub46217-20020

main46217-12020-03iYR22,31..LE198308-198808

GRAY,SHADOW GRAY

sub46217-12020

sub46217-16030

main46217-12020-03iYR22,31..LE198802-198808

GRAY,SHADOW GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-20020-03iYR22,31..LE198608-198802

GRAY,SHADOW GRAY,TRIM1#

sub46217-20020

main46217-20020-03iYR29,32198603-198802

GRAY,SHADOW GRAY,TRIM1#,4#

sub46217-20020

main46217-20020-05iYR2#,3#198508-198802

BEIGE,BEIGE,TRIM4#

sub46217-20020

main46217-20020-24iYR29198508-198603

BLUE,BLUE,TRIM4#

sub46217-20020

main46217-20020-24iYR22..LE198508-198608

BLUE,BLUE,TRIM8#

sub46217-20020

main46217-20020-32iYR2#198504-198508

WINE,WINE,TRIM4#

sub46217-20020

main46217-20020-34iYR21..LE198504-198508

BLUE,BLUE,TRIM1#

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iYR2#,3#198504-198808

main90501-10745iYR2#198308-198504

46241BOOT, PARKING BRAKE LEVER

main46241-28010iYR2#198308-198408

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iYR2#,3#198308-198808

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-28040iYR2#198308-198608

main46321-28041iYR2#,3#198608-198701

sub46321-28042

main46321-28042iYR2#,3#198701-198808

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90506-10027iYR2#,3#198308-198701

main90506-11006iYR2#,3#198701-198808

46356BRACKET, EQUALIZER SUPPORT

main46356-28030iYR2#,3#198308-198808

46361ROD, PARKING BRAKE PULL

main46361-28020iYR2#198308-198608

main46361-28030iYR2#,3#198608-198705

sub46361-28031

main46361-28031iYR2#,3#198705-198808

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28071iYR2#198308-198408

main46410-28072iYR2#198408-198508

main46410-28073iYR2#,3#198508-198808

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28110iYR2#198308-198508

main46420-28111iYR22198508-198808

main46420-28120iYR29198508-198808

main46420-28130iYR3#198608-198808

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28110iYR2#198308-198508

main46430-28111iYR22198508-198608

main46430-28112iYR22198608-198808

sub46430-28113

main46430-28120iYR29198508-198608

main46430-28121iYR29198608-198808

main46430-28131iYR3#198608-198808

sub46430-28132

46441NUT, WIRE ADJUSTING, NO.1

main46441-22010iYR2#198308-198406

main46441-35010iYR2#,3#198406-198808

46451BRACKET, CABLE SUPPORT

main46452-28060iYR2#,3#198308-198808

LH

main46453-28010iYR2#,3#198308-198808

RH

46458RETAINER, CABLE

main46458-28010iYR2#,3#198308-198808

9017014057

main90170-14057

9020608016

main90206-08016

9020609001

main90206-09001

9046808001

main90468-08001

9046812134

main90468-12134

9094901044

main90949-01044

9094901045

main90949-01045

9161140612

main91611-40612

9161160610

main91611-60610

9161160612

main91611-60612

9161160814

main91611-60814

9161160816

main91611-60816

9161160820

main91611-60820

9165160614

main91651-60614

9165660825

main91656-60825

9411050600

main94110-50600

9412040600

main94120-40600

9412040800

main94120-40800

9461210701

main94612-10701

9461210800

main94612-10800

9538102515

main95381-02515

9622120710

main96221-20710

9622120914

main96221-20914

38 parts on this diagram · 1 diagram in section
