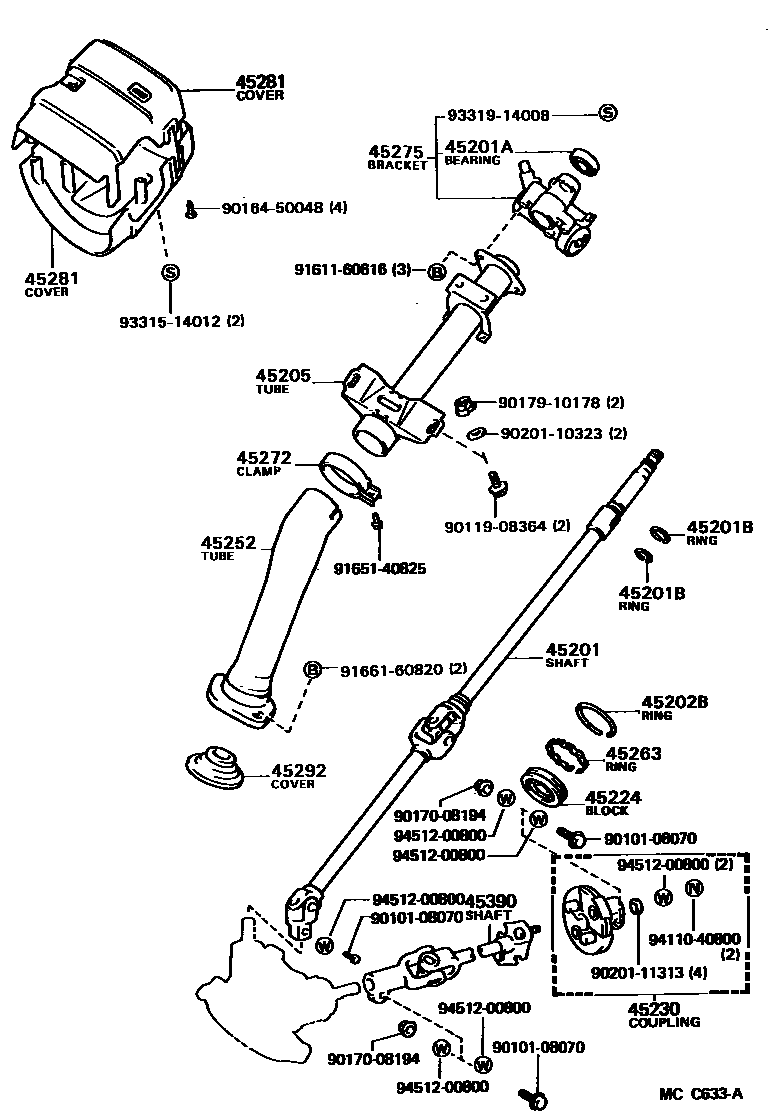

STEERING COLUMN & SHAFT
45201SHAFT SUB-ASSY, STEERING MAIN
W/TILT STEERING
45201ABEARING(FOR STEERING MAIN SHAFT)
UPR,W/TILT STEERING
LWR,W/TILT STEERING
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,UPR
T=1.20,LWR
45202BRING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
W/TILT STEERING
45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)
L=16
45230COUPLING ASSY, FLEXIBLE
W/POWER STEERING
45252TUBE, STEERING COLUMN, LOWER
45263RING, STEERING COLUMN, NO.1
45272CLAMP, STEERING COLUMN, LOWER
45275BRACKET, STEERING COLUMN, UPPER
W/TILT STEERING
W/TILT STEERING
45281HOUSING, STEERING COLUMN
45292SEAL, MAIN SHAFT LOWER DUST
9010108070
main90101-08070
9011908364
main90119-08364
9016450048
main90164-50048
9017008194
main90170-08194
9017910178
main90179-10178
9020110323
main90201-10323
9020111313
main90201-11313
9161160616
main91611-60616
9165140825
main91651-40825
9166160820
main91661-60820
9331514012
main93315-14012
9331914008
main93319-14008
9411040800
main94110-40800
9451200800
main94512-00800
29 parts on this diagram · 6 diagrams in section
