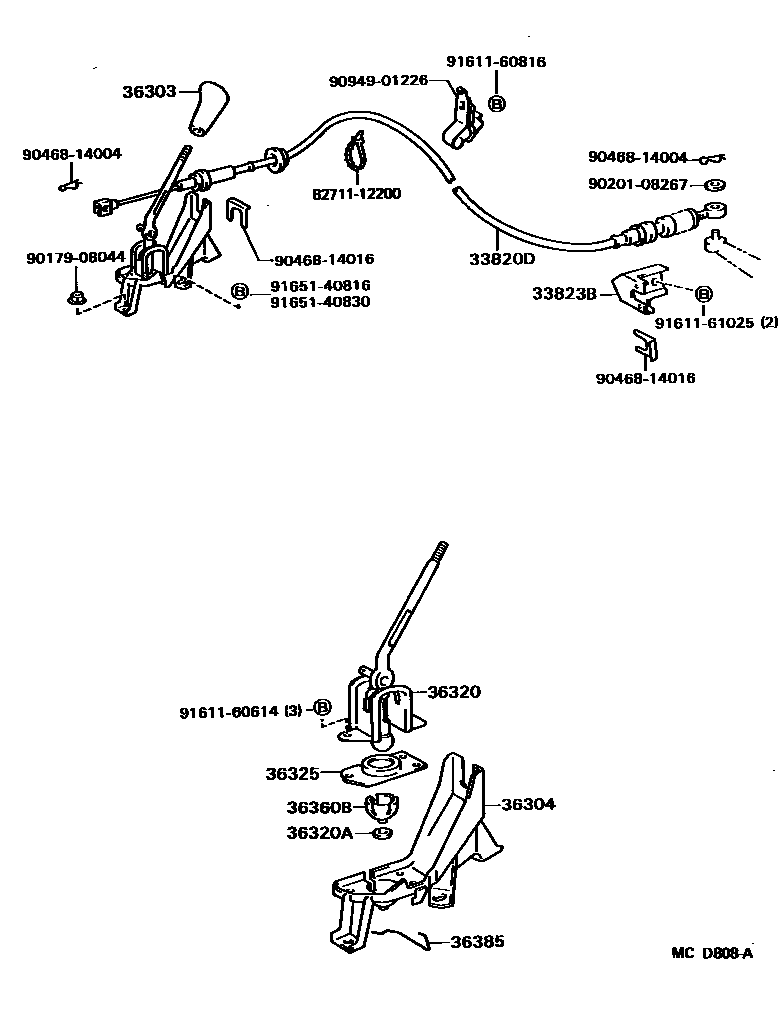

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

33820DCABLE ASSY, TRANSFER CONTROL

main33820-28090iYR3#..5F¥20,300198608-198808

33823BBRACKET, TRANSFER CONTROL CABLE

main33823-28100iYR3#..5F¥1,140198608-198808

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-28010-03iYR3#..5F198608-198808

GRAY,GRAY,TRIM1#

sub36303-28010¥2,100

main36303-28010-06iYR3#..5F198608-198808

BROWN,BROWN,TRIM4#

sub36303-28010¥2,100

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main33506-28080iYR3#..5F198608-198808

36320LEVER ASSY, TRANSFER SHIFT

main33503-28110iYR3#..5F198608-198808

36320ABUSH (FOR TRANSFER SHIFT LEVER)

main90385-04001iYR3#..5F¥310198608-198808

36325CAP, TRANSFER FRONT DRIVE SHIFT LEVER

main33554-28050iYR3#..5F¥440198608-198808

36360BSEAT, TRANSFER SHIFT LEVER BALL

main33556-28040iYR3#..5F¥470198608-198808

36385SPRING, TRANSFER SHIFT LEVER TORSION

main36385-28010iYR3#..5F¥270198608-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200¥120

9017908044

main90179-08044¥160

9020108267

main90201-08267¥100

9046814004

main90468-14004¥80

9046814016

main90468-14016¥160

9094901226

main90949-01226¥580

9161160614

main91611-60614¥180

9161160816

main91611-60816¥230

9161161025

main91611-61025¥240

9165140816

main91651-40816¥80

9165140830

main91651-40830¥90

20 parts on this diagram · 2 diagrams in section
