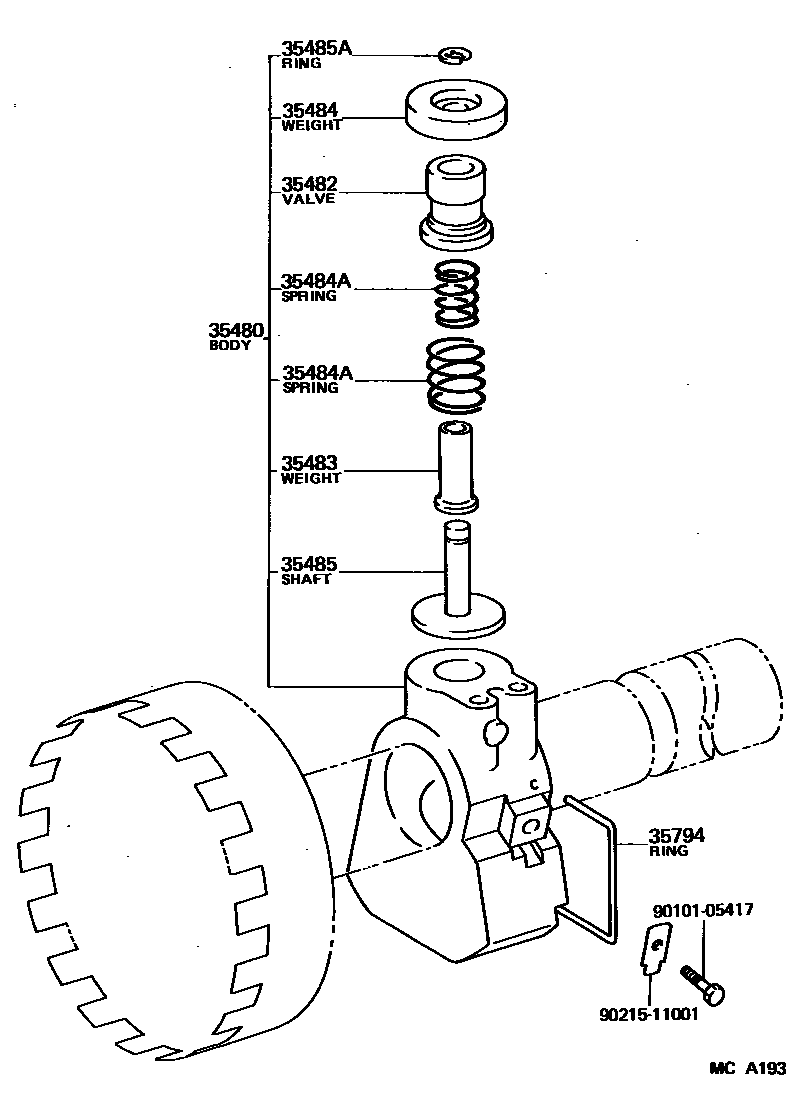

REAR OIL PUMP & GOVERNOR (ATM)

35480GOVERNOR

main35480-28010iYR2#..4FC198308-198408

main35480-28020iYR2#,3#..4FC198408-198808

35482VALVE, GOVERNOR

main35482-28010iYR2#..4FC198308-198408

main35482-28020iYR2#,3#..4FC198408-198808

35483WEIGHT, GOVERNOR, INNER

main35483-14010iYR2#,3#..4FC198308-198808

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iYR2#,3#..4FC198308-198808

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-08052iYR2#..4FC198308-198408

INNER

main90501-09049iYR2#,3#..4FC198408-198808

INNER

main90501-09054iYR2#..4FC198308-198408

OUTER

main90501-09065iYR2#,3#..4FC198408-198808

OUTER

35485SHAFT, GOVERNOR VALVE

main35485-14010iYR2#,3#..4FC198308-198808

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iYR2#,3#..4FC198308-198808

35794RING, GOVERNOR RETAINING

main35794-22010iYR2#,3#..4FC198308-198808

9010105417

main90101-05417

9021511001

main90215-11001

10 parts on this diagram · 1 diagram in section
