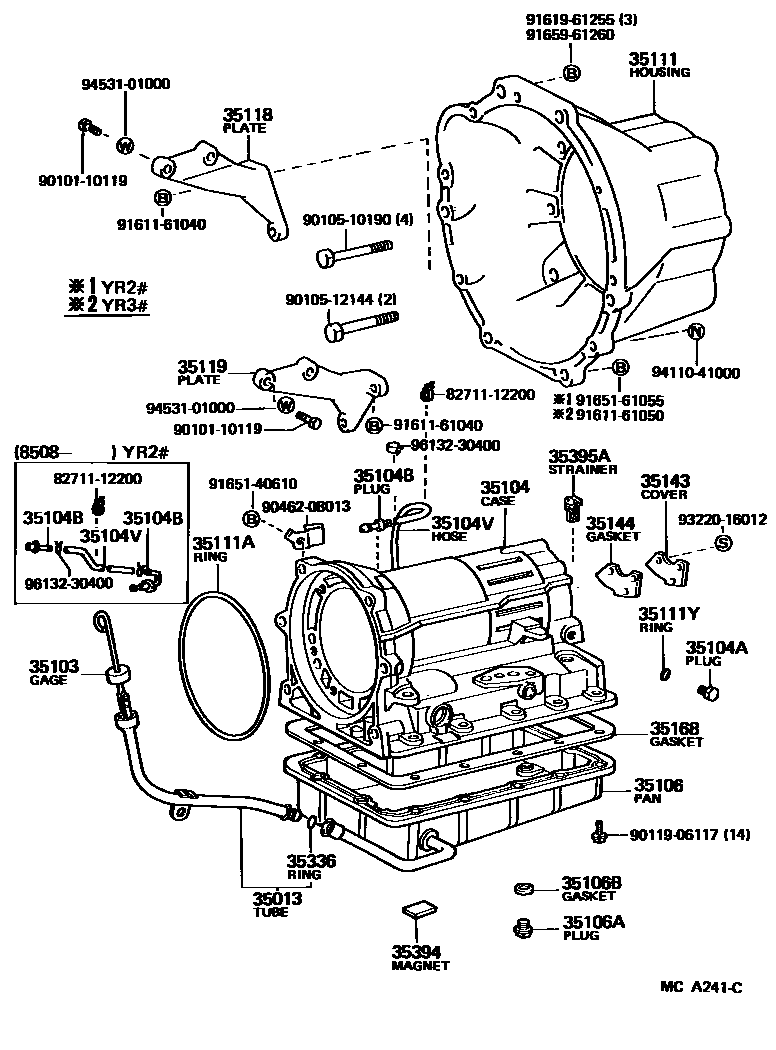

TRANSMISSION CASE & OIL PAN (ATM)

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-28020iYR2#..4FC198308-198808

main35013-28040iYR3#..4FC198608-198808

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-26012iYR2#..4FC198308-198808

main35103-28010iYR3#..4FC198608-198808

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26011iYR2#..4FC198308-198408

sub35104-26020

main35104-26020iYR2#..4FC198408-198410

sub35104-26030

main35104-26021iYR2#..4FC198508-198808

main35104-26030iYR2#..4FC198410-198808

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iYR2#,3#..4FC198308-198808

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03084iYR2#..4FC198308-198508

main90930-03098iYR2#..4FC198508-198808

TRANSMISSION CASE SIDE

main90930-03098iYR3#198608-198808

main90930-03099iYR2#..4FC198508-198808

BODY SIDE

35104VHOSE (FOR BREATHER PLUG)

main90445-10008iYR2#..4FC198308-198508

main90445-11084iYR2#..4FC198508-198808

sub90445-11090

main90447-11008iYR3#198608-198808

sub90447-11018

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-30060iYR2#..4FC198308-198808

sub35106-30061

main35107-28010iYR3#..4FC198608-198808

sub35107-28011

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iYR2#,3#..4FC198308-198808

sub90341-10011

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iYR2#,3#..4FC198308-198808

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-28010iYR2#..4FC198308-198508

sub35111-28011

main35111-28011iYR2#,3#..4FC198508-198808

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99006iYR2#,3#..4FC198308-198708

sub90301-99054

main90301-99054iYR2#,3#..4FC198708-198808

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iYR2#,3#..4FC198308-198808

35118PLATE, STIFENER, RH (ATM)

main33118-28010iYR21..4FC198308-198311

main33118-28020iYR2#,3#..4FC198311-198808

35119PLATE, STIFENER, LH (ATM)

main33119-28010iYR21..4FC198308-198311

main33119-28020iYR2#..4FC198311-198401

main33119-28021iYR2#,3#..4FC198401-198808

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iYR2#,3#..4FC198308-198808

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iYR2#,3#..4FC198308-198808

sub35144-28010

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iYR2#,3#..4FC198308-198808

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iYR2#,3#..4FC198308-198808

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iYR2#,3#..4FC198308-198808

35395ASTRAINER, GOVERNOR OIL

main35395-40010iYR2#,3#..4FC198308-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9010110119

main90101-10119

9010510190

main90105-10190

9010512144

main90105-12144

9011906117

main90119-06117

9046208013

main90462-08013

9161161040

main91611-61040

9161161050

main91611-61050

9161961255

main91619-61255

9165140610

main91651-40610

9165161055

main91651-61055

9165961260

main91659-61260

9322016012

main93220-16012

9411041000

main94110-41000

9453101000

main94531-01000

9613230400

main96132-30400

36 parts on this diagram · 1 diagram in section
