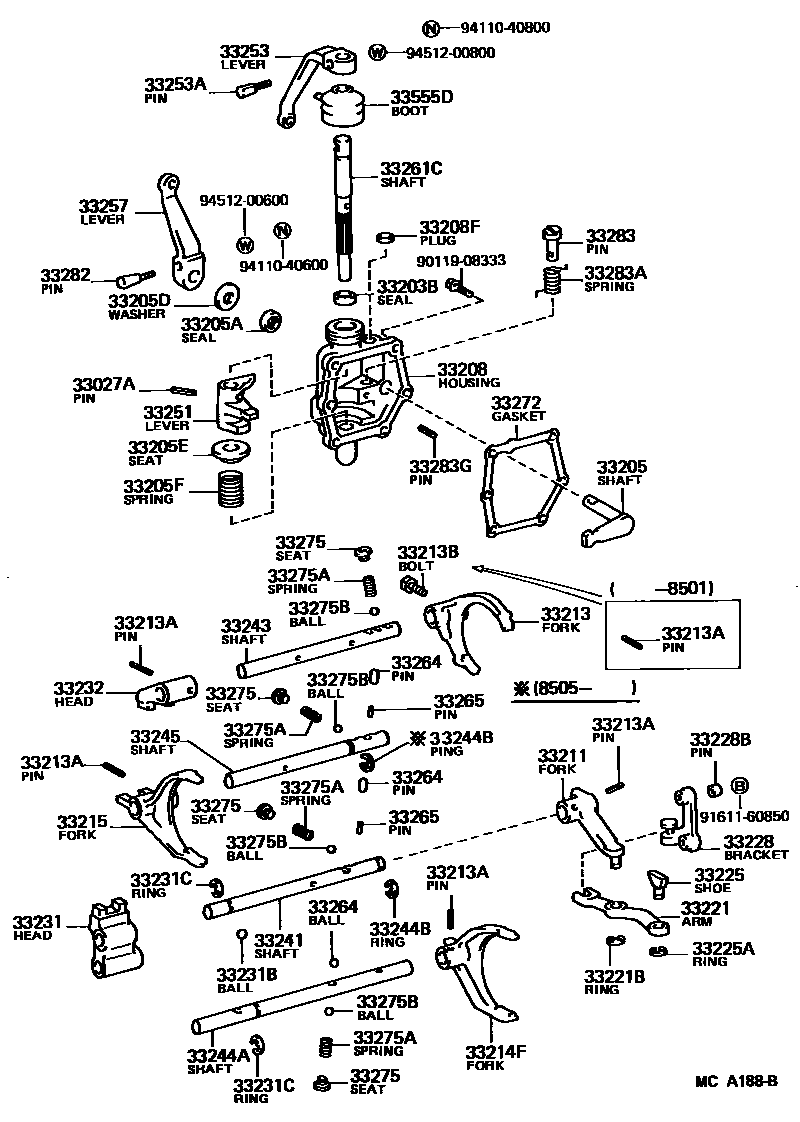

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33211FORK, REVERSE SHIFT
33213FORK, 1ST & 2ND SHIFT
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33214FFORK, 5TH SHIFT
33215FORK, 3RD & 4TH SHIFT
33221ARM, REVERSE SHIFT
33221BRING, E(FOR REVERSE SHIFT ARM)
33225ARING, SHAFT SNAP(FOR SHIFT ARM SHOE)
33228BRACKET, REVERSE SHIFT ARM
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33231HEAD, REVERSE SHIFT
33231BBALL, REVERSE SHIFT RESTRICT
33231CRING(FOR REVERSE SHIFT HEAD)
33232HEAD, 1ST & 2ND SHIFT
33241SHAFT, REVERSE SHIFT FORK
33243SHAFT, 1ST & 2ND SHIFT FORK
33244ASHAFT, 5TH SHIFT FORK
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245SHAFT, 3RD & 4TH SHIFT FORK
33251LEVER, SHIFT & SELECT
sub33251-28012
33253LEVER, SHIFT OUTER, NO.1
33253APIN, LEVER LOCK (FOR SHIFT OUTER LEVER)
33257LEVER, SELECT OUTER
33261CSHAFT, SHIFT & SELECT LEVER
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
OD=9.52,STEEL,BALL
L=21.6,PIN,PIN,L=21.6
L=13.6,OD=9.5,PIN,L=13.6
33265PIN, SHIFT INTERLOCK, NO.2
L=11.1,OD=4.8
33272GASKET, SHIFT LEVER SHAFT HOUSING
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18
OD=17
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
33275BBALL, SHAFT DETENT
33282PIN, LEVER LOCK, NO.2
33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33555DBOOT, SHIFT LEVER
9011908333
main90119-08333
9161160850
main91611-60850
9411040600
main94110-40600
9411040800
main94110-40800
9451200600
main94512-00600
9451200800
main94512-00800
52 parts on this diagram · 1 diagram in section
