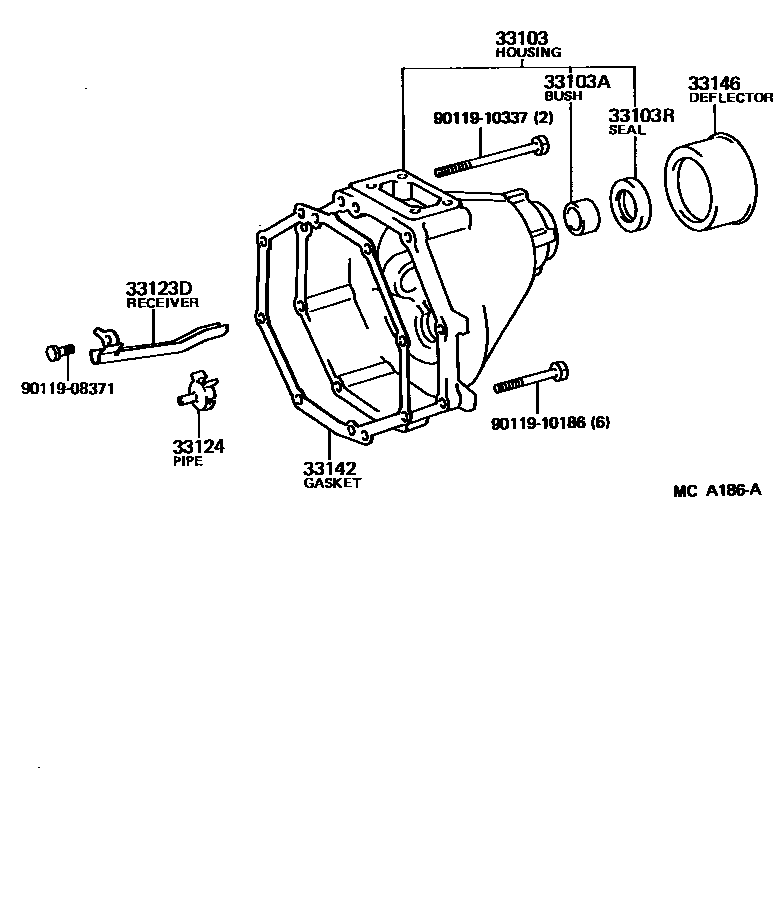

EXTENSION HOUSING (MTM)

0001 1 0002 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-28010iYR2#..5F198308-198808

sub33103-28031

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72023iYR2#..5F198308-198808

sub90999-73139

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38040iYR2#..5F198609-198808

sub90311-38030

main90311-38043iYR2#..5F198308-198609

sub90311-38040

33123DRECEIVER, CASE COVER OIL(MTM)

main33124-28010iYR2#..5F198308-198808

sub33124-28011

33124PIPE, OIL RECEIVER(MTM)

main33124-36010iYR2#..5F198308-198808

33142GASKET, EXTENSION HOUSING(MTM)

main33138-28020iYR2#,3#..5F198308-198808

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iYR2#..5F198308-198808

sub33146-30020

9011908371

main90119-08371

9011910186

main90119-10186

9011910337

main90119-10337

10 parts on this diagram · 2 diagrams in section
