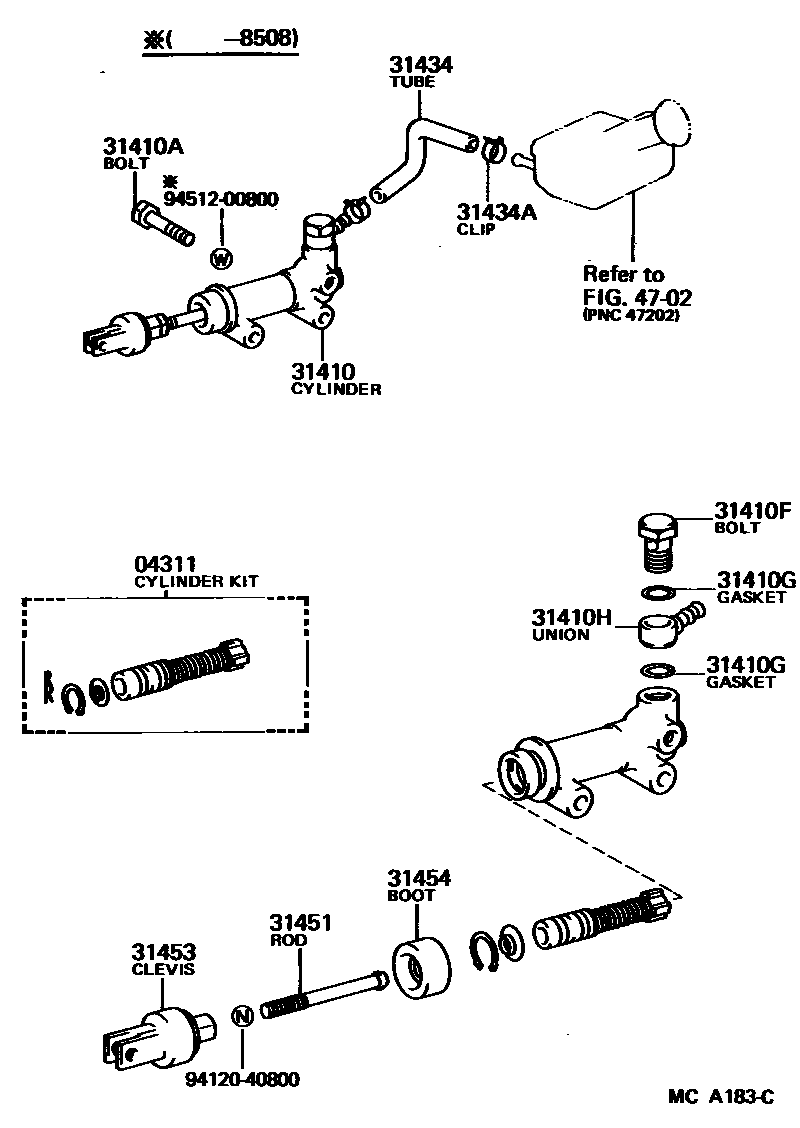

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14030iYR2#,3#..5F198609-198704

sub04311-14031

main04311-14031iYR2#,3#..5F198704-198808

sub04311-14032

main04311-30080iYR2#..5F198308-198401

sub04311-14020

main04311-30090iYR2#,3#..5F198401-198609

sub04311-30091

31410CYLINDER ASSY, CLUTCH MASTER

main31420-28051iYR2#..5F198308-198508

sub31420-28070

main31420-28070iYR2#,3#..5F198508-198704

sub31420-28071

main31420-28071iYR2#,3#..5F198704-198710

sub31420-28072

main31420-28072iYR2#,3#..5F198710-198808

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91121-40865iYR2#..5F198308-198508

main91611-60865iYR2#,3#..5F198508-198808

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16002iYR2#,3#..5F198512-198808

main90401-16078iYR2#..5F198308-198512

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iYR2#,3#..5F198308-198808

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10003iYR2#,3#..5F198512-198808

main90405-10125iYR2#..5F198308-198512

31434TUBE, CLUTCH RESERVOIR

main31434-28030iYR2#,3#..5F198308-198808

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iYR2#,3#..5F198308-198808

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iYR2#,3#..5F198609-198808

main31451-30060iYR2#,3#..5F198308-198609

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iYR2#,3#..5F198508-198808

sub31404-28012

main31404-30041iYR2#..5F198308-198508

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iYR2#,3#..5F198308-198808

4702

9412040800

main94120-40800

9451200800

main94512-00800

14 parts on this diagram · 1 diagram in section
