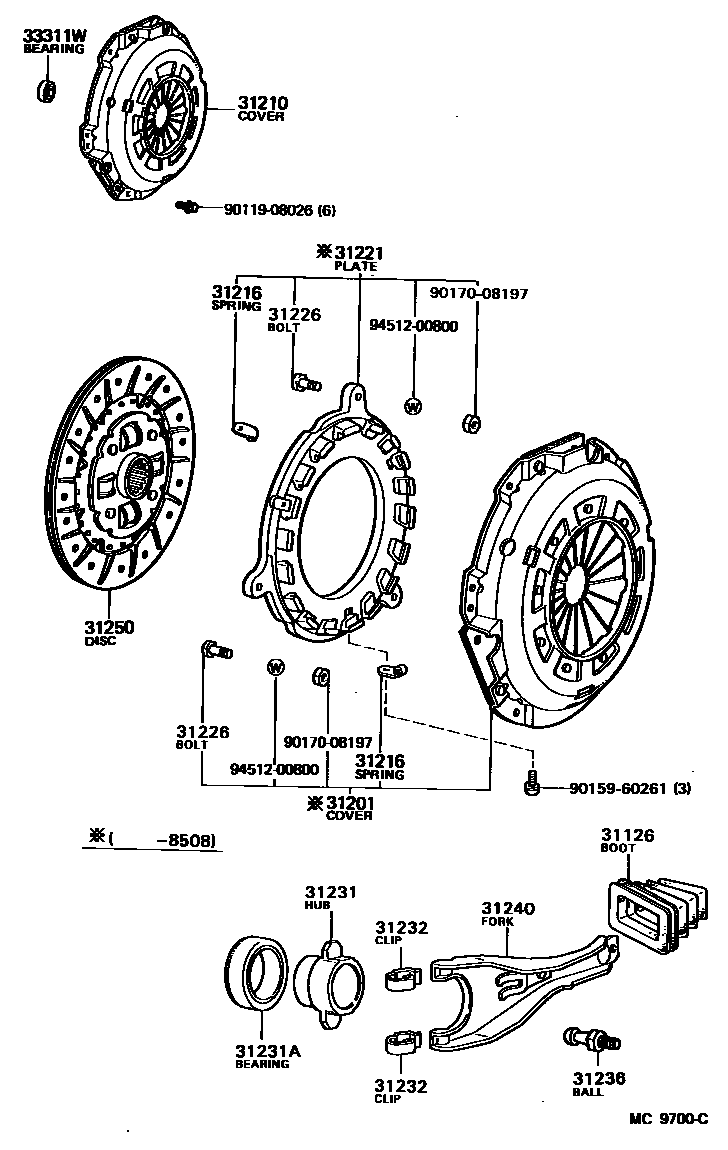

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-20060iYR2#,3#..5F198308-198808

31201COVER SUB-ASSY, CLUTCH

main31201-19095iYR2#..5F198308-198508

sub31201-14110

31210COVER ASSY, CLUTCH

main31210-14130iYR2#..5F198308-198508

sub31210-35090

main31210-24010iYR2#,3#..5F198508-198808

sub31210-24011

31216SPRING, CLUTCH RETRACTING

main31216-30010iYR2#..5F198308-198508

31221PLATE, CLUTCH PRESSURE

main31221-39056iYR2#..5F198308-198508

sub31221-36025

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08022iYR2#..5F198308-198508

31231HUB, CLUTCH RELEASE BEARING

main31231-36070iYR2#,3#..5F198308-198808

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022iYR2#,3#..5F198308-198808

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010iYR2#,3#..5F198308-198808

31236BALL, RELEASE FORK

main31236-30060iYR2#,3#..5F198308-198808

31240FORK ASSY, CLUTCH RELEASE

main31204-20070iYR2#..5F198308-198508

sub31204-20072

main31204-20071iYR2#,3#..5F198508-198808

31250DISC ASSY, CLUTCH

main31250-14150iYR2#..5F198508-198511

sub31250-28030

main31250-20130iYR2#..5F198308-198508

sub31250-20131

main31250-28030iYR2#,3#..5F198511-198808

sub31250-28031

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iYR2#,3#..5F198308-198808

sub90363-12024

9011908026

main90119-08026

9015960261

main90159-60261

9017008197

main90170-08197

9451200800

main94512-00800

17 parts on this diagram · 1 diagram in section
