V-BELT

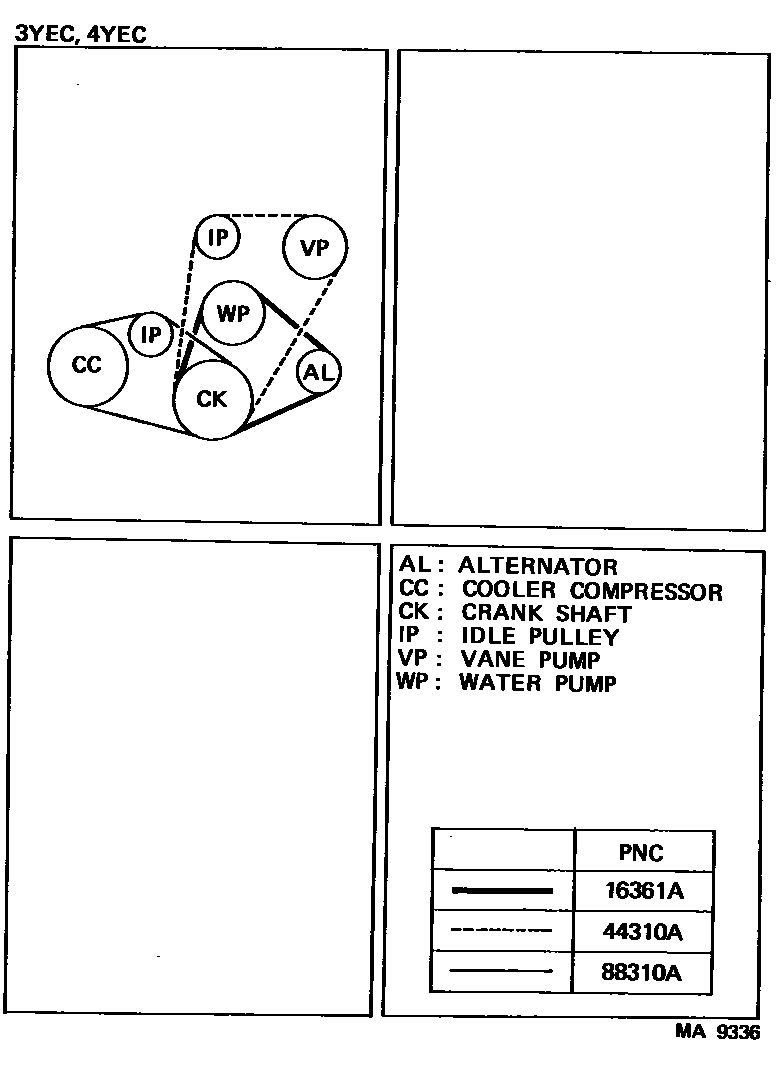

Parts diagram
16361ABELT, V(FOR FAN & ALTERNATOR)
main99365-50820i198308-198808
sub99365-80820
44310ABELT, V(FOR VANE PUMP)
main99332-01055i198308-198808
L=1055
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
main99332-00905i198501-198508
main99332-00910i198308-198501
main99332-10905i198508-198808
sub99332-60905

3 parts on this diagram · 1 diagram in section
