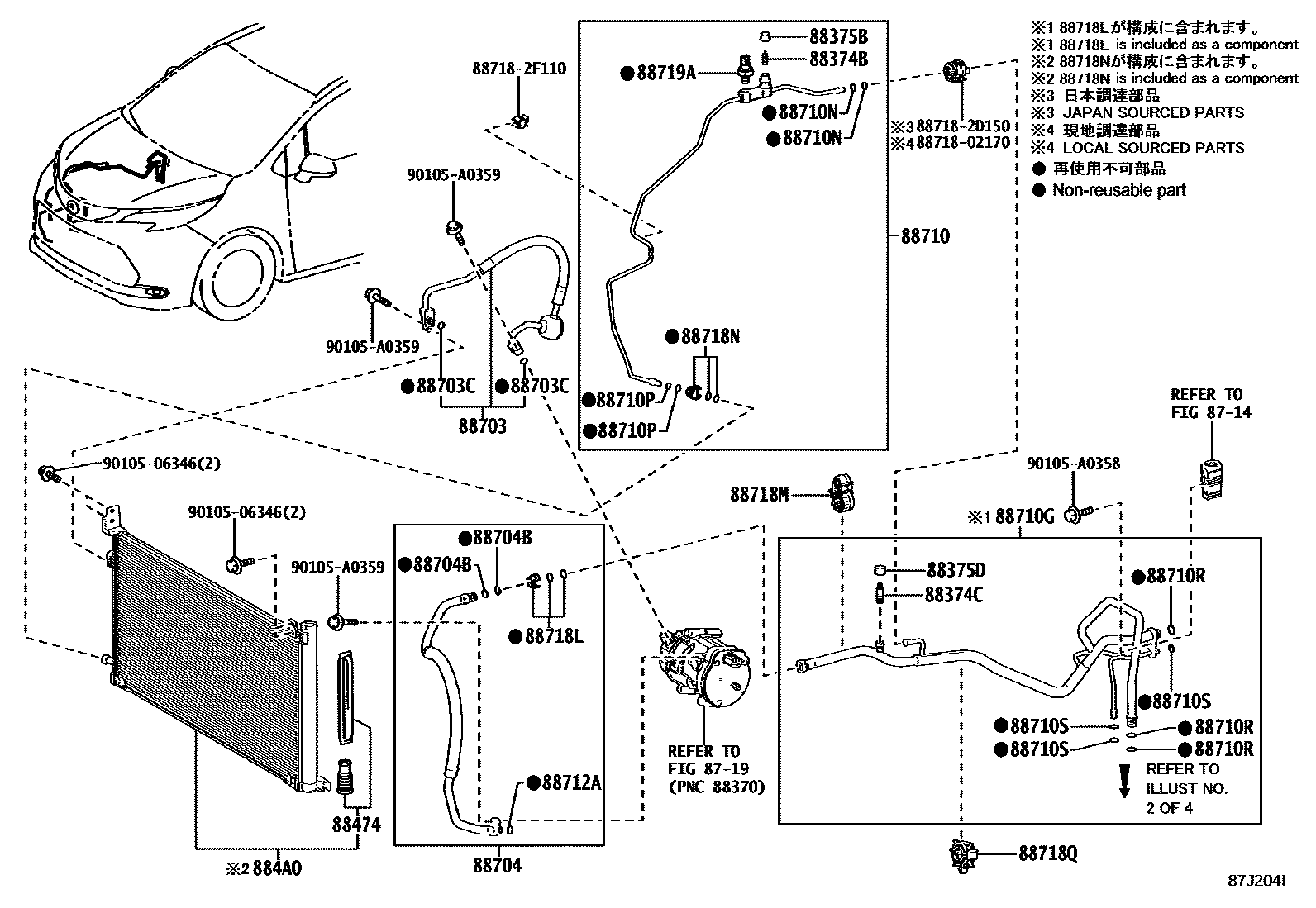

HEATING & AIR CONDITIONING - COOLER PIPING
8714
8719
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
88710TUBE ASSY, AIR CONDITIONER
88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
88710RRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
ID=13.4,OD=18.2
88710SRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, A/C, NO.2)
ID=6.7,OD=10.3
88712ARING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
ID=13.4,OD=18.2
88718LCLAMP, PIPING
88718MCLAMP, PIPING
88718NCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
8871802170PIPE, COOLER REFRIGERANT SUCTION, NO.2
887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2D150
887182F110PIPE, COOLER REFRIGERANT SUCTION, NO.2
9010506346
main90105-06346
90105A0358
main90105-A0358
90105A0359
main90105-A0359
30 parts on this diagram · 6 diagrams in section
