CAMERA & REAR MONITOR DISPLAY
8504
86117ABRACKET, TELEVISION DISPLAY, A
86170BSWITCH & VOLUME ASSY, TELEVISION
86192BTERMINAL, HEADPHONE
86295BASE, TELEVISION
main86295-08050
86453CWIRE, MULTI-MEDIA MODULE
86456CCOVER, MULTI-MEDIA MODULE
86680ADISPLAY ASSY, TELEVISION
86790BCAMERA ASSY, TELEVISION, FR
86790DCAMERA ASSY, TELEVISION, RR
BACK MONITOR-WITH(BACK GUIDE MONITOR & WASHER)
BACK MONITOR-WITH(BACK GUIDE MONITOR & WASHER)
86790ECAMERA ASSY, TELEVISION, SIDE RH
86790FCAMERA ASSY, TELEVISION, SIDE LH
86791CBRACKET, COMPUTER PARKING ASSIST, NO.1
86792CCOMPUTER, PARKING ASSIST
867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR
main867A0-08010
main867A0-08020
main867A0-08060
main867A0-08070
867C0CAMERA ASSY, INNER MIRROR
main867C0-08010
867F1NOZZLE, CAMERA CLEANER
INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW&BACK MONITOR-WITH(BACK GUIDE MONITOR& WASHER)
TAIWAN SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(BACK GUIDE MONITOR & WASHER)
INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW
TAIWAN SPEC&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(BACK GUIDE MONITOR & WASHER)
INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW
INSIDE REAR VIEW MIRROR-INTELLIGENT REAR VIEW&BACK MONITOR-WITH(BACK GUIDE MONITOR& WASHER)
90119A0182
main90119-A0182
90119A0255
main90119-A0255
90153A0003
main90153-A0003
90167A0021
main90167-A0021
9017706001
main90177-06001
9046707220
main90467-07220
9046709050
main90467-09050
9046709240
main90467-09240
9167180612
main91671-80612

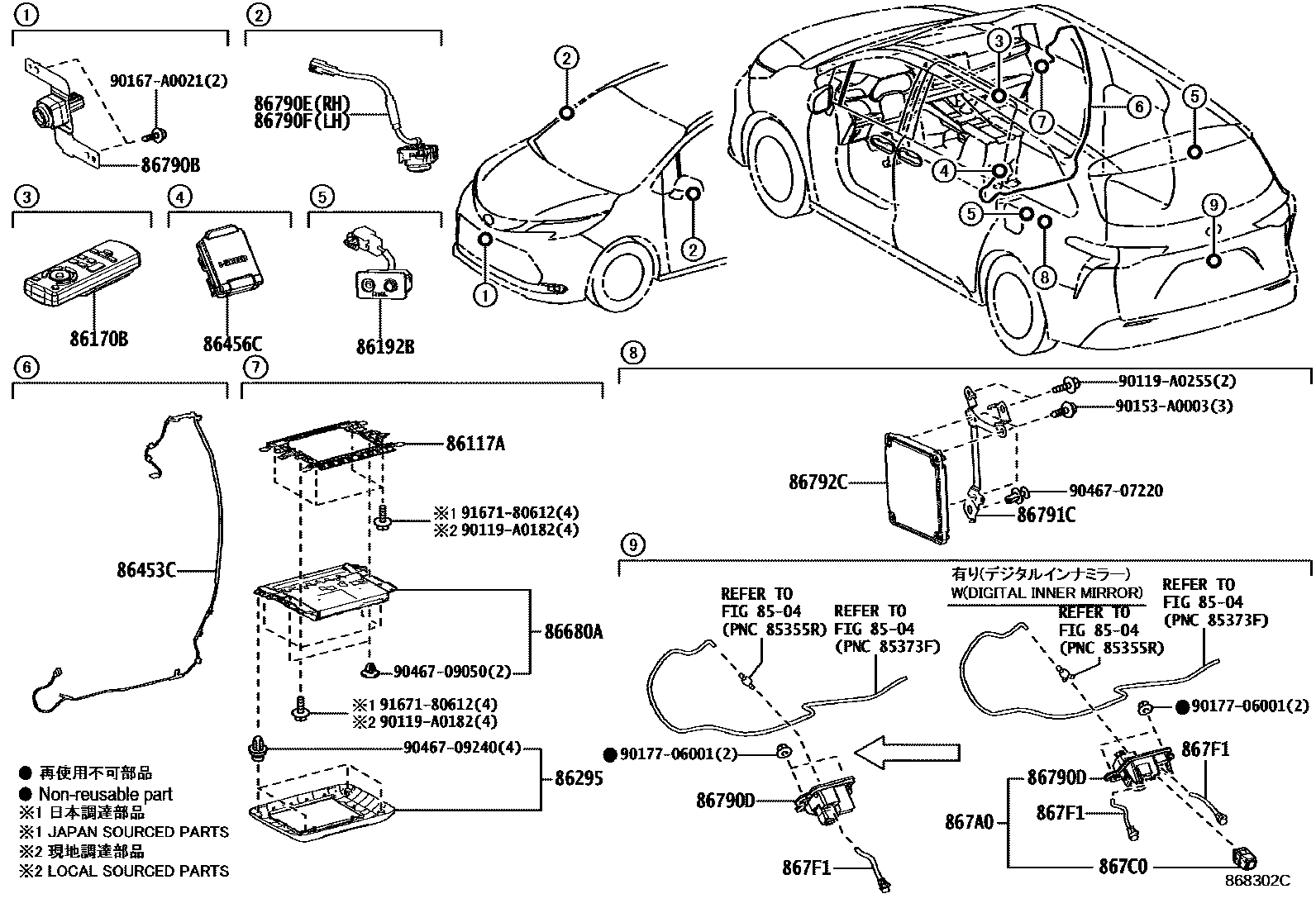

26 parts on this diagram · 2 diagrams in section
