NAVIGATION & FRONT MONITOR DISPLAY

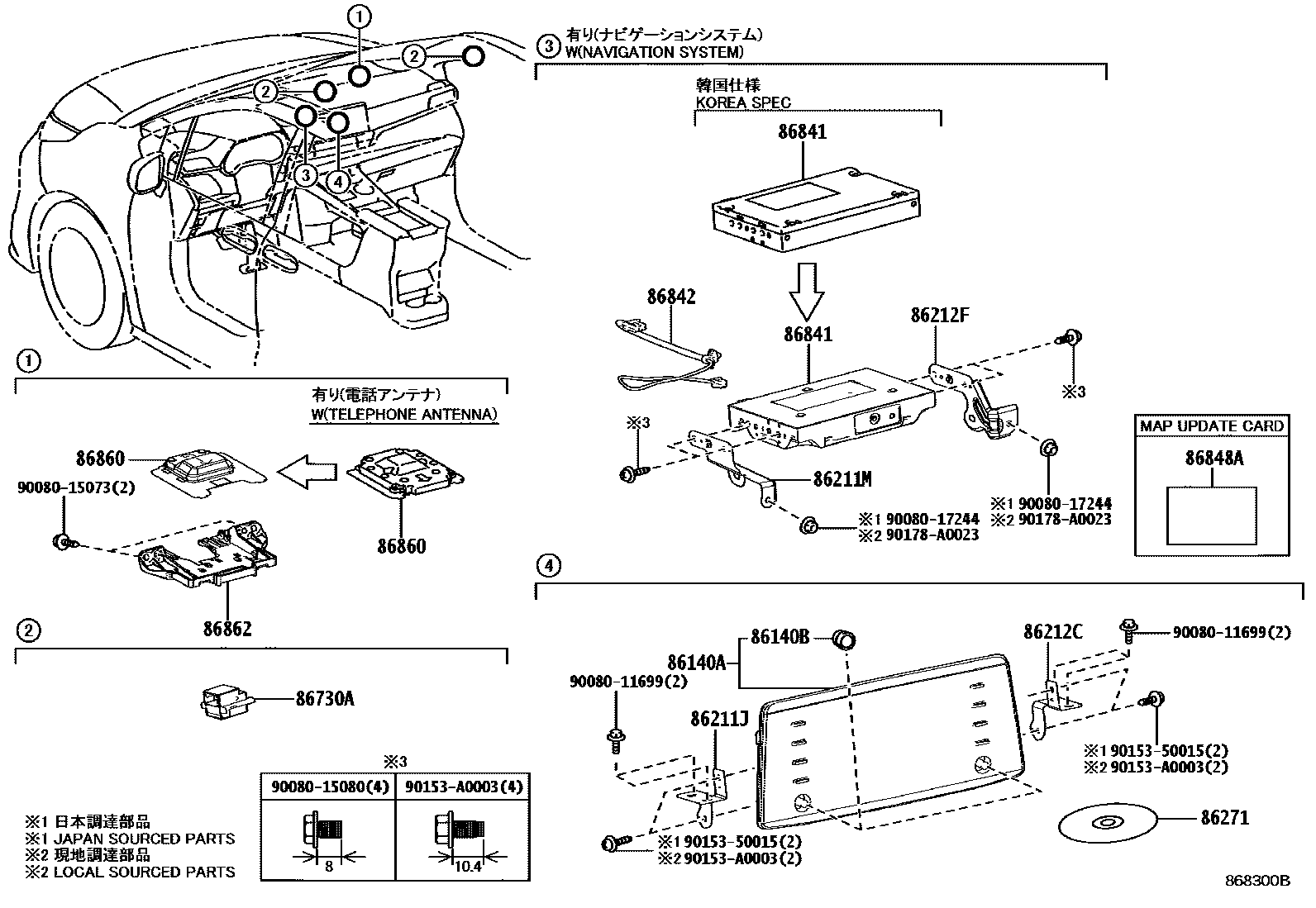

Parts diagram
86140ARECEIVER ASSY, RADIO & DISPLAY
main86140-08250i202011-202410
DENSO TEN,CANADA SPEC
main86140-08250i202011-202410
DENSO TEN,CANADA SPEC&AUDIO-AM/FM 8SPEAKER
main86140-08260i202011-202410
PANASONIC,CANADA SPEC&AUDIO-AVN & AM/FM 8SPEAKER
main86140-08280i202011-202204
DENSO TEN
main86140-08280i202011-202204
DENSO TEN,AUDIO-AM/FM 8SPEAKER
main86140-08281i202205-202311
DENSO TEN,AUDIO-AM/FM 8SPEAKER
main86140-08281i202205-202311
DENSO TEN
main86140-08282i202312-202410
DENSO TEN,AUDIO-AM/FM 8SPEAKER
main86140-08282i202312-202410
DENSO TEN
main86140-08290i202011-202410
PANASONIC
main86140-08360i202011-202410
PANASONIC,CANADA SPEC
main86140-08380i202011-202410
PANASONIC,CANADA SPEC
main86140-08380i202011-202410
PANASONIC,CANADA SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main86140-08400i202011-202410
PANASONIC,AUDIO-AVN & AM/FM 8SPEAKER
main86140-08420i202011-202410
PANASONIC,AUDIO-SURROUND 12SPEAKER & JBL
main86140-08420i202011-202410
PANASONIC
main86140-08420i202109-202410
PANASONIC,AWD PARKS PLUS&AUDIO-SURROUND 12SPEAKER & JBL
main86140-08440i202011-202410
PIONEER,KOREA SPEC
main86140-08470i202011-202410
PIONEER,TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main86140-08470i202011-202410
PIONEER,TAIWAN SPEC
main86140-08490i202011-202410
PANASONIC,AUDIO-SURROUND 12SPEAKER & JBL
main86140-08500i202011-202410
PANASONIC,CANADA SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main86140-08510i202011-202204
DENSO TEN,GUAM SPEC&AUDIO-AM/FM 6SPEAKER
sub86140-08511
main86140-08510i202011-202204
DENSO TEN,HAWAII SPEC&AUDIO-AM/FM 6SPEAKER
sub86140-08511
main86140-08510i202011-202204
DENSO TEN,MEXICO SPEC&AUDIO-AM/FM 6SPEAKER
sub86140-08511
main86140-08510i202011-202204
DENSO TEN,PUERTO RICO SPEC&AUDIO-AM/FM 6SPEAKER
sub86140-08511
main86140-08510i202011-202204
DENSO TEN,SAIPAN SPEC&AUDIO-AM/FM 6SPEAKER
sub86140-08511
main86140-08510i202011-202204
DENSO TEN,CANADA SPEC&AUDIO-AM/FM 6SPEAKER
sub86140-08511
main86140-08511i202205-202311
DENSO TEN,HAWAII SPEC&AUDIO-AM/FM 6SPEAKER
main86140-08511i202205-202311
DENSO TEN,MEXICO SPEC&AUDIO-AM/FM 6SPEAKER
main86140-08511i202205-202311
DENSO TEN,PUERTO RICO SPEC&AUDIO-AM/FM 6SPEAKER
main86140-08511i202205-202311
DENSO TEN,SAIPAN SPEC&AUDIO-AM/FM 6SPEAKER
main86140-08511i202205-202311
DENSO TEN,CANADA SPEC&AUDIO-AM/FM 6SPEAKER
main86140-08511i202205-202311
DENSO TEN,GUAM SPEC&AUDIO-AM/FM 6SPEAKER
main86140-08512i202312-202410
DENSO TEN,CANADA SPEC&AUDIO-AM/FM 6SPEAKER
main86140-08512i202312-202410
DENSO TEN,GUAM SPEC&AUDIO-AM/FM 6SPEAKER
main86140-08512i202312-202410
DENSO TEN,HAWAII SPEC&AUDIO-AM/FM 6SPEAKER
main86140-08512i202312-202410
DENSO TEN,MEXICO SPEC&AUDIO-AM/FM 6SPEAKER
main86140-08512i202312-202410
DENSO TEN,PUERTO RICO SPEC&AUDIO-AM/FM 6SPEAKER
main86140-08512i202312-202410
DENSO TEN,SAIPAN SPEC&AUDIO-AM/FM 6SPEAKER
main86140-08530i202011-202204
DENSO TEN
main86140-08531i202205-202311
DENSO TEN
main86140-08532i202312-202410
DENSO TEN
main86140-08560i202410
DENSO TEN
main86140-08570i202410
DENSO TEN,CANADA SPEC
main86140-08580i202410-202511
DENSO TEN
main86140-08590i202410-202511
DENSO TEN,CANADA SPEC
main86140-08600i202410-202511
DENSO TEN,AUDIO-JBL SURROUND 12SPEAKER
main86140-08600i202410
DENSO TEN
main86140-08610i202410-202511
DENSO TEN,CANADA SPEC&AUDIO-JBL SURROUND 12SPEAKER
main86140-08610i202410
DENSO TEN,CANADA SPEC
main86140-08620i202410
DENSO TEN,KOREA SPEC
main86140-08630i202410
DENSO TEN,TAIWAN SPEC&AUDIO-JBL SURROUND 12SPEAKER
main86140-08630i202410
DENSO TEN,TAIWAN SPEC
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
main90011-23046i202011-202410
main90011-23047i202011-202410
AUDIO-AM/FM 8SPEAKER
main90011-23047i202011-202410
CANADA SPEC&AUDIO-AM/FM 8SPEAKER
main90011-25336i202011-202410
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main90011-25336i202011-202410
KOREA SPEC
main90011-25336i202011-202410
TAIWAN SPEC
main90011-25337i202011-202410
AUDIO-SURROUND 12SPEAKER & JBL
main90011-25337i202011-202410
CANADA SPEC&AUDIO-AVN & AM/FM 8SPEAKER
main90011-25337i202011-202410
CANADA SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main90011-25337i202011-202410
AUDIO-AVN & AM/FM 8SPEAKER
main90011-25337i202109-202410
AWD PARKS PLUS&AUDIO-SURROUND 12SPEAKER & JBL
86211JBRACKET, RADIO RECEIVER, NO.1
main86211-08060i202011-202410
86211MBRACKET, RADIO RECEIVER, NO.3
main86211-08070i202011-202410
AUDIO-AVN & AM/FM 8SPEAKER
main86211-08070i202410
KOREA SPEC
main86211-08070i202011-202410
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main86211-08070i202011-202410
AUDIO-SURROUND 12SPEAKER & JBL
86212CBRACKET, RADIO RECEIVER, NO.2
main86212-08060i202011-202410
86212FBRACKET, RADIO RECEIVER, NO.4
main86212-08070i202011-202410
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main86212-08070i202011-202410
AUDIO-AVN & AM/FM 8SPEAKER
main86212-08070i202011-202410
AUDIO-SURROUND 12SPEAKER & JBL
main86212-08070i202410
KOREA SPEC
86271DISC, DISC PLAYER
main86807-11023i202011-202108
TAIWAN SPEC
sub86807-11025
main86807-11023i202011-202108
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
sub86807-11025
main86807-11024i202109-202211
TAIWAN SPEC
sub86807-11025
main86807-11024i202109-202211
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
sub86807-11025
main86807-11025i202212-202308
TAIWAN SPEC
sub86807-11026
main86807-11025i202212-202308
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
sub86807-11026
main86807-11026i202309-202408
TAIWAN SPEC
sub86807-11027
main86807-11026i202309-202408
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
sub86807-11027
main86807-11027i202409-202410
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main86807-11027i202409-202410
TAIWAN SPEC
86730AMICROPHONE ASSY, TELEPHONE
main86730-0C020i202410
main86730-45030i202106-202410
main86730-48100i202011-202105
sub86730-45030
86841COMPUTER, NAVIGATION
main86840-08010i202011-202108
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
sub86840-08011
main86840-08010i202011-202108
TAIWAN SPEC
sub86840-08011
main86840-08011i202109-202208
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main86840-08011i202109-202208
TAIWAN SPEC
main86840-08012i202209-202308
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main86840-08012i202209-202308
TAIWAN SPEC
main86840-08013i202309-202410
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main86840-08013i202309-202410
TAIWAN SPEC
main86840-0E082i202011-202103
AUDIO-SURROUND 12SPEAKER & JBL
main86840-0E082i202011-202103
AUDIO-AVN & AM/FM 8SPEAKER
main86840-0E083i202104-202108
AUDIO-AVN & AM/FM 8SPEAKER
sub86840-0E084
main86840-0E083i202104-202108
AUDIO-SURROUND 12SPEAKER & JBL
sub86840-0E084
main86840-0E084i202109-202202
AUDIO-AVN & AM/FM 8SPEAKER
sub86840-0E085
main86840-0E084i202109-202202
AUDIO-SURROUND 12SPEAKER & JBL
sub86840-0E085
main86840-0E085i202203-202208
AUDIO-SURROUND 12SPEAKER & JBL
sub86840-0E086
main86840-0E085i202203-202208
AUDIO-AVN & AM/FM 8SPEAKER
sub86840-0E086
main86840-0E086i202209-202211
AUDIO-AVN & AM/FM 8SPEAKER
sub86840-0E087
main86840-0E086i202209-202211
AUDIO-SURROUND 12SPEAKER & JBL
sub86840-0E087
main86840-0E087i202212-202305
AUDIO-AVN & AM/FM 8SPEAKER
main86840-0E087i202212-202305
AUDIO-SURROUND 12SPEAKER & JBL
main86840-0E088i202306-202312
AUDIO-SURROUND 12SPEAKER & JBL
sub86840-0E089
main86840-0E088i202306-202312
AUDIO-AVN & AM/FM 8SPEAKER
sub86840-0E089
main86840-0E089i202401-202410
AUDIO-AVN & AM/FM 8SPEAKER
main86840-0E089i202401-202410
AUDIO-SURROUND 12SPEAKER & JBL
main86841-08020i202011-202410
KOREA SPEC&MAP DISC(DOP)-WITH
86842WIRE, NAVIGATION, NO.1
main86842-08030i202011-202410
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main86842-08030i202011-202410
AUDIO-SURROUND 12SPEAKER & JBL
main86842-08030i202011-202410
AUDIO-AVN & AM/FM 8SPEAKER
main86842-08031i202410
KOREA SPEC
86848ACARD, SERIAL NUMBER MAP UPDATE
main86848-33050i202011-202410
TAIWAN SPEC
main86848-33050i202011-202410
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
86860ANTENNA ASSY, NAVIGATION
main86860-0E070i202011-202410
MEXICO SPEC&AUDIO-AM/FM 8SPEAKER
main86860-0E070i202410-202511
HAWAII SPEC
main86860-0E070i202410-202511
PUERTO RICO SPEC
main86860-0E070i202011-202209
GUAM SPEC
main86860-0E070i202011-202410
MEXICO SPEC
main86860-0E070i202011-202209
SAIPAN SPEC
main86860-0E070i202011-202410
TAIWAN SPEC
main86860-0E070i202410
TAIWAN SPEC&AUDIO-JBL SURROUND 12SPEAKER
main86860-0E070i202011-202209
GUAM SPEC&AUDIO-AVN & AM/FM 8SPEAKER
main86860-0E070i202011-202209
GUAM SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main86860-0E070i202011-202209
SAIPAN SPEC&AUDIO-AVN & AM/FM 8SPEAKER
main86860-0E070i202011-202209
SAIPAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main86860-0E070i202011-202410
SAIPAN SPEC&AUDIO-AM/FM 6SPEAKER
main86860-0E070i202011-202410
SAIPAN SPEC&AUDIO-AM/FM 8SPEAKER
main86860-0E070i202011-202410
TAIWAN SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main86860-0E070i202011-202410
CANADA SPEC&AUDIO-AM/FM 6SPEAKER
main86860-0E070i202011-202410
GUAM SPEC&AUDIO-AM/FM 6SPEAKER
main86860-0E070i202011-202410
GUAM SPEC&AUDIO-AM/FM 8SPEAKER
main86860-0E070i202011-202410
HAWAII SPEC&AUDIO-AM/FM 6SPEAKER
main86860-0E070i202011-202410
KOREA SPEC
main86860-0E070i202011-202410
MEXICO SPEC&AUDIO-AM/FM 6SPEAKER
main86860-0E070i202011-202410
MEXICO SPEC&AUDIO-AVN & AM/FM 8SPEAKER
main86860-0E070i202011-202410
MEXICO SPEC&AUDIO-SURROUND 12SPEAKER & JBL
main86860-0E070i202011-202410
PUERTO RICO SPEC&AUDIO-AM/FM 6SPEAKER
main86880-02090i202310-202410
main86880-0E010i202011-202310
86862BRACKET, NAVIGATION ANTENNA
main86862-58020i202011-202410
9008011699
main90080-11699
9008015073
main90080-15073
9008015080
main90080-15080
9008017244
main90080-17244
9015350015
main90153-50015
90153A0003
main90153-A0003
90178A0023
main90178-A0023

20 parts on this diagram · 1 diagram in section
