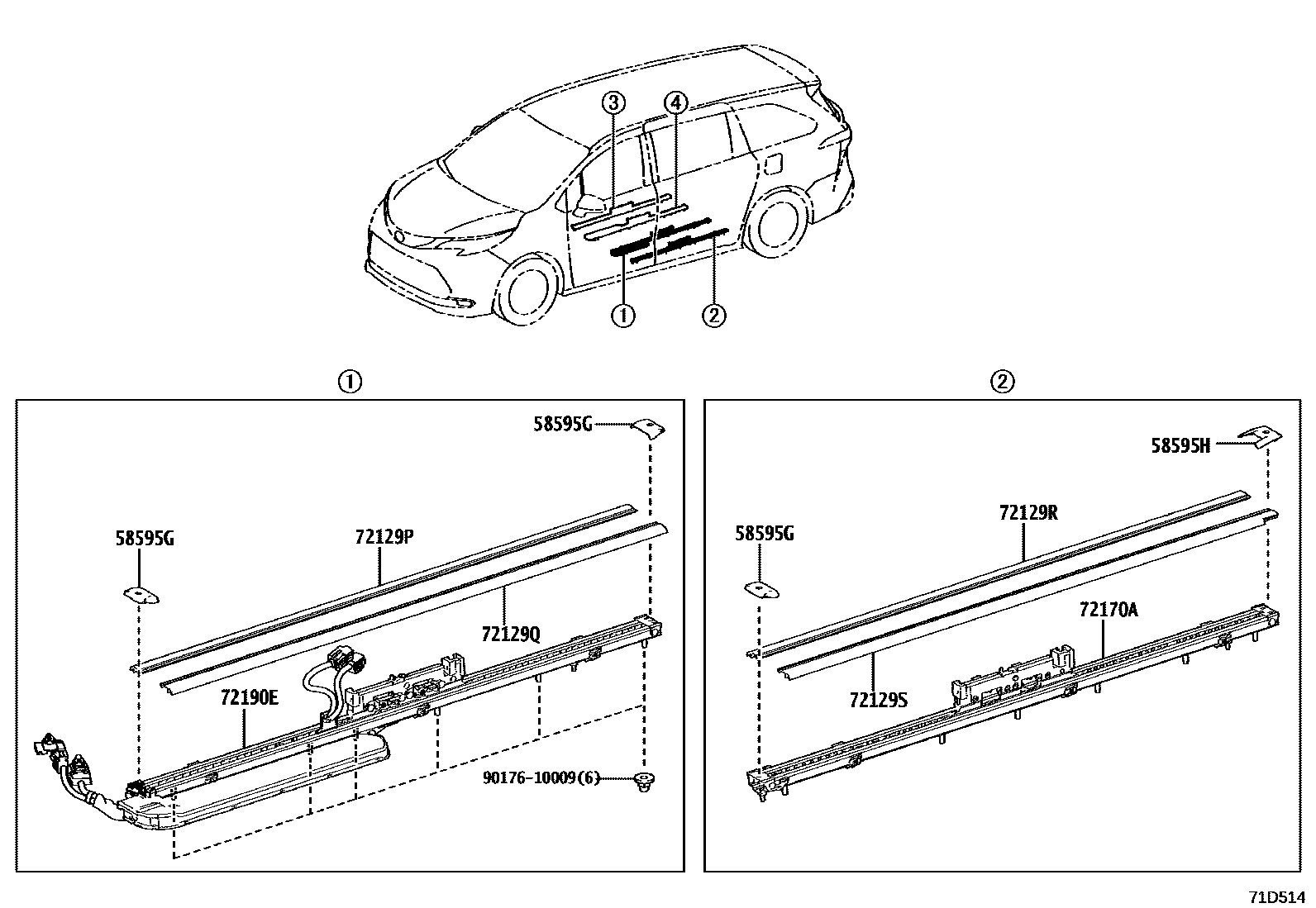

SEAT RAIL

0001 1LH 0002 1RH 0003 1LH 0004 1RH

58595GMOULDING, FLOOR CARPET, NO.1

main58595-08110-C0iAXLH4#..08S202410

BLACK,TRIM2#,4#

main58595-08110-C0iAXLH4#..08S202109-202410

BLACK,TRIM1#,2#

main58595-08110-C0iAXLH4#..L202011-202410

BLACK,TRIM1#

main58595-08110-C0iAXLH4#..E202011-202410

BLACK,TRIM1#,4#

58595HMOULDING, FLOOR CARPET, NO.2

main58595-08030-C0iAXLH4#..E202011-202410

BLACK,TRIM1#

main58595-08030-C0iAXLH4#..E202011-202410

BLACK,TRIM1#,4#

main58595-08120-C0iAXLH40..S;AXLH45..S,X202410

BLACK,TRIM2#,4#

main58595-08120-C0iAXLH4#..L202011-202109

BLACK,TRIM1#

main58595-08120-C0iAXLH4#..L202109-202410

BLACK,TRIM1#,2#

main58595-08120-C0iAXLH4#..07S..(L,X)202011-202410

BLACK,TRIM1#,4#

72129PPROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1

main72129-08160-C0iAXLH4#..08S202011-202410

BLACK,TRIM1#

main72129-08160-C0iAXLH40..08S..X202011-202410

BLACK,TRIM1#,4#

main72129-08190-C0iAXLH40..S;AXLH45..S,X202011-202109

BLACK,TRIM1#

main72129-08190-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main72129-08190-C0iAXLH4#..L202109-202410

BLACK,TRIM1#,2#

main72129-08190-C0iAXLH4#..07S..(L,X)202011-202410

BLACK,TRIM1#,4#

72129QPROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.2

main72129-08150-C0iAXLH40..08S..X202011-202410

BLACK,TRIM1#,4#

main72129-08150-C0iAXLH40..08S..X202011-202410

BLACK,TRIM1#

main72129-08190-C0iAXLH40..S;AXLH45..S,X202011-202109

BLACK,TRIM1#

main72129-08190-C0iAXLH40..S;AXLH45..S,X202109-202410

BLACK,TRIM1#,2#

main72129-08190-C0iAXLH40..S;AXLH45..S,X202410

BLACK,TRIM2#,4#

main72129-08190-C0iAXLH4#..07S..(L,X)202011-202410

BLACK,TRIM1#,4#

72129RPROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1

main72129-08140-C0iAXLH40..08S..X202011-202410

BLACK,TRIM1#,4#

main72129-08140-C0iAXLH40..08S..X202011-202410

BLACK,TRIM1#

main72129-08170-C0iAXLH4#..07S..(L,X)202011-202410

BLACK,TRIM1#,4#

main72129-08170-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main72129-08170-C0iAXLH4#..L202011-202109

BLACK,TRIM1#

main72129-08170-C0iAXLH4#..L202109-202410

BLACK,TRIM1#,2#

72129SPROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.2

main72129-08140-C0iAXLH4#..08S202011-202410

BLACK,TRIM1#

main72129-08140-C0iAXLH40..08S..X202011-202410

BLACK,TRIM1#,4#

main72129-08180-C0iAXLH40..07S..X202109-202410

BLACK,TRIM1#,2#

main72129-08180-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main72129-08180-C0iAXLH4#..L202011-202109

BLACK,TRIM1#

main72129-08180-C0iAXLH4#..07S..(L,X)202011-202410

BLACK,TRIM1#,4#

72170ATRACK ASSY, REAR SEAT, OUTER LH

main72170-08100iAXLH4#..08S202011-202410

main72170-08110iAXLH4#..07S202011-202410

72190ETRACK ASSY, REAR SEAT, INNER LH

main72190-08140iAXLH4#..07S202011-202109

main72190-08140iAXLH40..07S..(L,X)202109-202410

TAIWAN SPEC

main72190-08190iAXLH4#..L202011-202109

SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)

main72190-08191iAXLH4#..L202109-202410

SEAT HEATER-WITH(FRONT SEAT & REAR SEAT)

main72190-08240iAXLH4#..08S202011-202410

main72190-08280iAXLH4#..07S202109-202410

9017610009

main90176-10009

9 parts on this diagram · 4 diagrams in section
