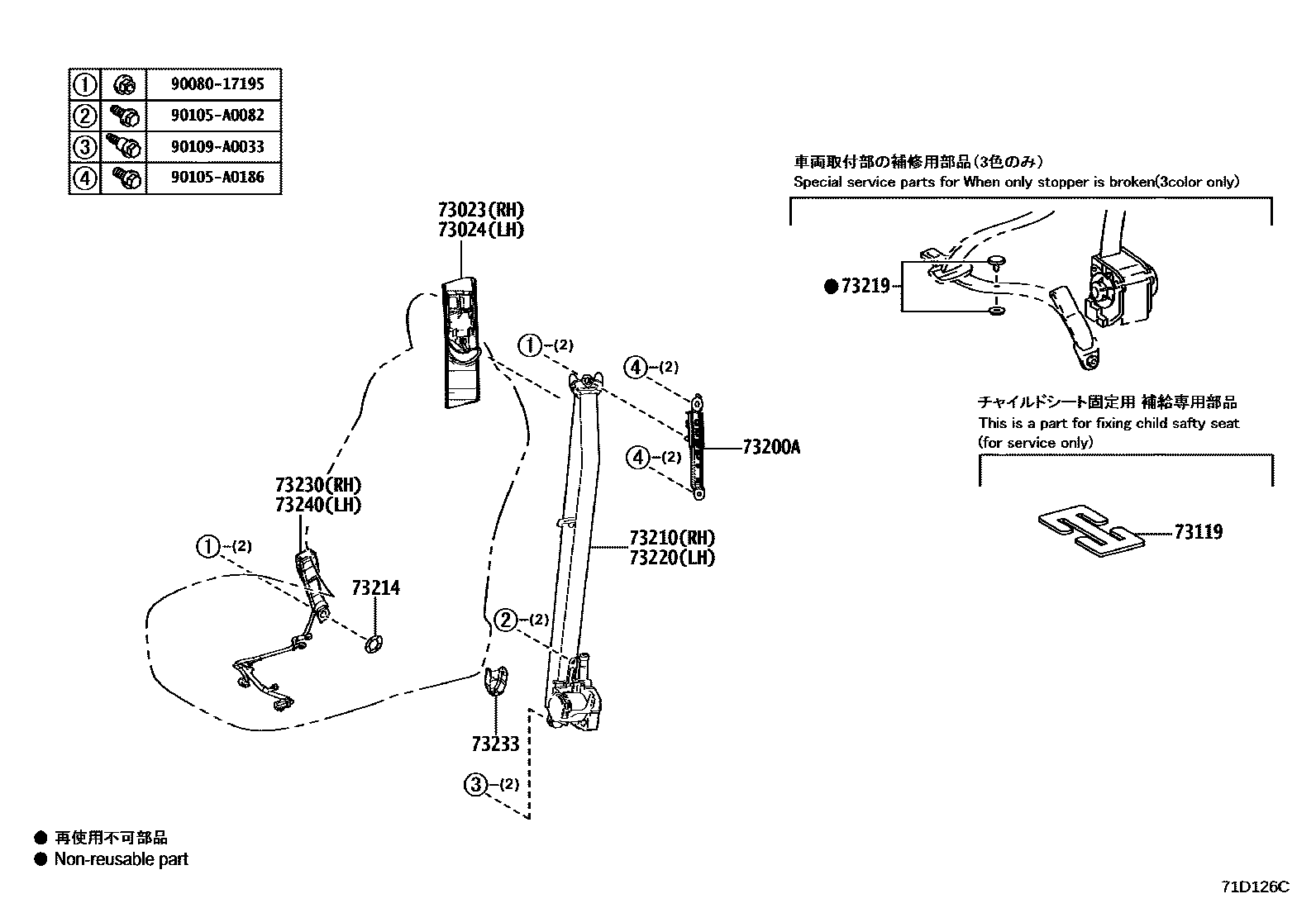

SEAT BELT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.1 SEAT 0004 1REAR NO.2 SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-0E020-A0iAXLH4#..L202011-202410

FROMAGE,TRIM4#

main73023-0E020-B0iAXLH45..X202011-202410

LT.GRAY,TRIM1#

main73023-0E020-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

LT.GRAY,TRIM10

main73023-0E020-B1iAXLH4#..S202410

COOL GRAY,TRIM1#

main73023-0E020-B1iAXLH4#..S202011-202410

COOL GRAY,TRIM11

main73023-0E020-B2iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM12,2#

main73023-0E020-B2iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM13

main73023-0E020-C0iAXLH45..E;AXLH40..E,X202410

BLACK,TRIM2#

main73023-0E020-C0iAXLH45..E;AXLH40..E,X202410

BLACK,TRIM1#,2#

main73023-0E020-C0iAXLH45..E;AXLH40..E,X202410

BLACK,TRIM1#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-0E020-A0iAXLH4#..L202011-202410

FROMAGE,TRIM4#

main73024-0E020-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

LT.GRAY,TRIM1#

main73024-0E020-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

LT.GRAY,TRIM10

main73024-0E020-B1iAXLH4#..S202410

COOL GRAY,TRIM1#

main73024-0E020-B1iAXLH4#..S202011-202410

COOL GRAY,TRIM11

main73024-0E020-B2iAXLH45..X202011-202410

NEUTRAL WARM GRAY,TRIM13

main73024-0E020-B2iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM12,2#

main73024-0E020-C0iAXLH4#..L,S202410

BLACK,TRIM2#

main73024-0E020-C0iAXLH4#..L,S202410

BLACK,TRIM1#,2#

main73024-0E020-C0iAXLH4#..L,S202410

BLACK,TRIM1#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iAXLH4#¥1,110202011-202410

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0R010iAXLH4#202011-202410

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-08110-A1iAXLH4#..L202011-202410

IVORY,TRIM40

main73210-08110-A1iAXLH4#..L202011-202410

IVORY,TRIM4#

main73210-08110-B1iAXLH45..X202011-202410

GRAY,TRIM10

main73210-08110-B1iAXLH45..X202011-202410

GRAY,TRIM1#

main73210-08110-B1iAXLH4#..E,X202410-202511

GRAY,TRIM15

main73210-08110-C3iAXLH4#..L202410

BLACK,TRIM2#,4#

main73210-08110-C3iAXLH4#..L202011-202410

BLACK,TRIM1#,2#

main73210-08110-C3iAXLH4#..L202011-202410

BLACK,TRIM41

main73210-08110-C3iAXLH4#..L202011-202410

BLACK,TRIM13

main73210-08110-C3iAXLH45..X202410-202511

BLACK,TRIM15,2#

main73210-08110-C3iAXLH45..X202410-202511

BLACK,TRIM15

main73210-08110-C3iAXLH45..X202410-202511

XSE PREMIUM,BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-0E010iAXLH4#¥260202011-202410

73219STOPPER, TONGUE PLATE

main73219-02010iAXLH4#¥80202011-202410

BLACK

main73219-02020iAXLH4#¥80202011-202410

GRAY

main73219-02030iAXLH4#¥80202011-202410

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-08100-A1iAXLH4#..L202011-202410

IVORY,TRIM40

main73220-08100-A1iAXLH4#..L202011-202410

IVORY,TRIM4#

main73220-08100-B1iAXLH45..X202011-202410

GRAY,TRIM10

main73220-08100-B1iAXLH45..X202011-202410

GRAY,TRIM1#

main73220-08100-B1iAXLH4#..E,X202410-202511

GRAY,TRIM15

main73220-08100-C3iAXLH4#..L202410

BLACK,TRIM2#,4#

main73220-08100-C3iAXLH4#..L202011-202410

BLACK,TRIM1#,2#

main73220-08100-C3iAXLH4#..L202011-202410

BLACK,TRIM41

main73220-08100-C3iAXLH4#..L202011-202410

BLACK,TRIM13

main73220-08100-C3iAXLH45..X202410-202511

BLACK,TRIM15,2#

main73220-08100-C3iAXLH45..X202410-202511

BLACK,TRIM15

main73220-08100-C3iAXLH45..X202410-202511

XSE PREMIUM,BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0R261-C0iAXLH4#..S202011-202410

BLACK,TRIM1#,4#

main73230-0R261-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main73230-0R261-C0iAXLH4#..L202011-202410

BLACK,TRIM1#,2#

main73230-0R261-C0iAXLH4#..L202011-202410

BLACK,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0C010-B3iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM10

main73233-0C010-B3iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM11

main73233-0C010-B3iAXLH45..E,L;AXLH40..E,L,X202011-202410

NEUTRAL WARM GRAY,TRIM1#

main73233-0C010-C1iAXLH40..S;AXLH45..S,X202410

BLACK,TRIM1#

main73233-0C010-C1iAXLH45..L;AXLH40..L,X202011-202410

BLACK,TRIM13,4#

main73233-0C010-C1iAXLH45..L;AXLH40..L,X202011-202410

BLACK,TRIM4#

main73233-0C010-C1iAXLH4#..L202410

BLACK,TRIM1#,2#

main73233-0C010-C1iAXLH40..S;AXLH45..S,X202410

BLACK,TRIM2#,4#

main73233-0C010-C1iAXLH4#..S202011-202410

BLACK,TRIM12,2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-08050-C0iAXLH4#..L202011-202410

BLACK,TRIM1#,4#

main73230-08050-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main73230-0R220-C0iAXLH40..S;AXLH45..S,X202011-202410

BLACK,TRIM1#

main73230-0R220-C0iAXLH45..E;AXLH40..E,X202011-202410

BLACK,TRIM1#,2#

main73230-0R220-C0iAXLH4#..E202011-202410

BLACK,TRIM1#,4#

9008017195

main90080-17195

90105A0082

main90105-A0082

90105A0186

main90105-A0186

90109A0033

main90109-A0033

15 parts on this diagram · 4 diagrams in section
