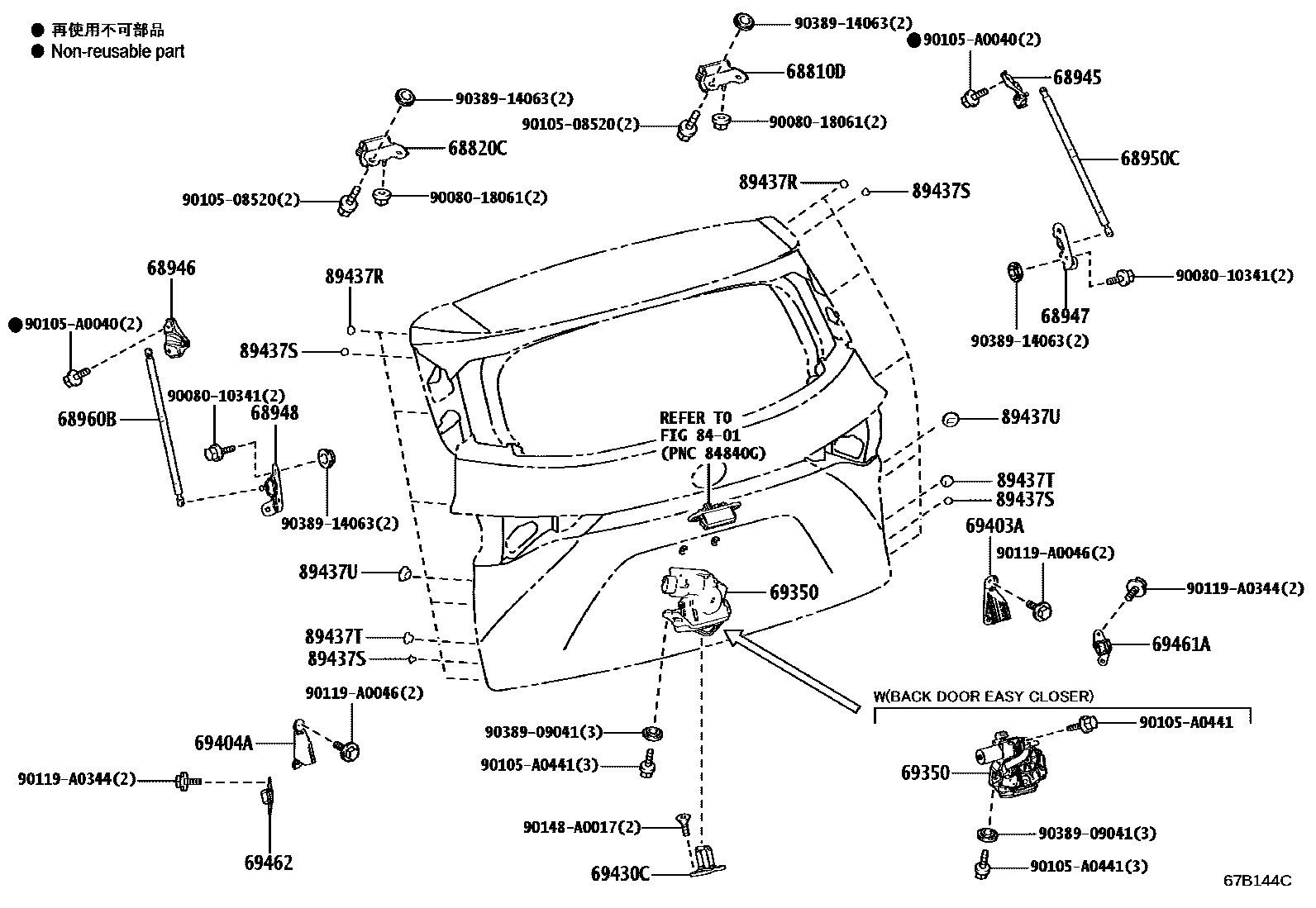

BACK DOOR LOCK & HINGE

0001 1 0002 1W(POWER BACK DOOR)

68810DHINGE ASSY, BACK DOOR, RH

main68810-0E290iAXLH4#202011-202410

68820CHINGE ASSY, BACK DOOR, LH

main68820-0E230iAXLH4#202011-202410

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-08020iAXLH4#..E202011-202410

main68945-08030iAXLH4#..L,S,X202011-202410

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-08020iAXLH4#..E202011-202410

main68946-08030iAXLH4#..L,S,X202011-202410

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-08011iAXLH4#202011-202410

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-08011iAXLH4#202011-202410

68950CSTAY ASSY, BACK DOOR, RH

main68950-08050iAXLH4#..E202011-202410

68960BSTAY ASSY, BACK DOOR, LH

main68960-08050iAXLH4#..E202011-202410

69350LOCK ASSY, BACK DOOR

main69350-0E150iAXLH4#..L,S,X202011-202204

sub69350-0E151

main69350-0E151iAXLH4#..L,S,X202205-202410

main69350-0E160iAXLH4#..E202011-202410

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main67293-08030iAXLH4#202011-202410

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main67294-08030iAXLH4#202011-202410

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0E070iAXLH4#202011-202410

69461ASTOPPER, BACK DOOR SIDE MALE

main67281-08030iAXLH4#202011-202410

69462STOPPER, BACK DOOR SIDE MALE, LH

main67282-08030iAXLH4#202011-202410

8401

89437RCOVER, SENSOR, NO.1

main89437-0E010iAXLH4#..E202011-202410

89437SCOVER, SENSOR, NO.2

main89437-0E020iAXLH4#..E202011-202410

89437TCOVER, SENSOR, NO.3

main89437-0E030iAXLH4#..E202011-202410

89437UCOVER, SENSOR, NO.4

main89437-0E040iAXLH4#..E202011-202410

9008010341

main90080-10341

9008018061

main90080-18061

9010508520

main90105-08520

90105A0040

main90105-A0040

90105A0441

main90105-A0441

90119A0046

main90119-A0046

90119A0344

main90119-A0344

90148A0017

main90148-A0017

9038909041

main90389-09041

9038914063

main90389-14063

29 parts on this diagram · 2 diagrams in section
