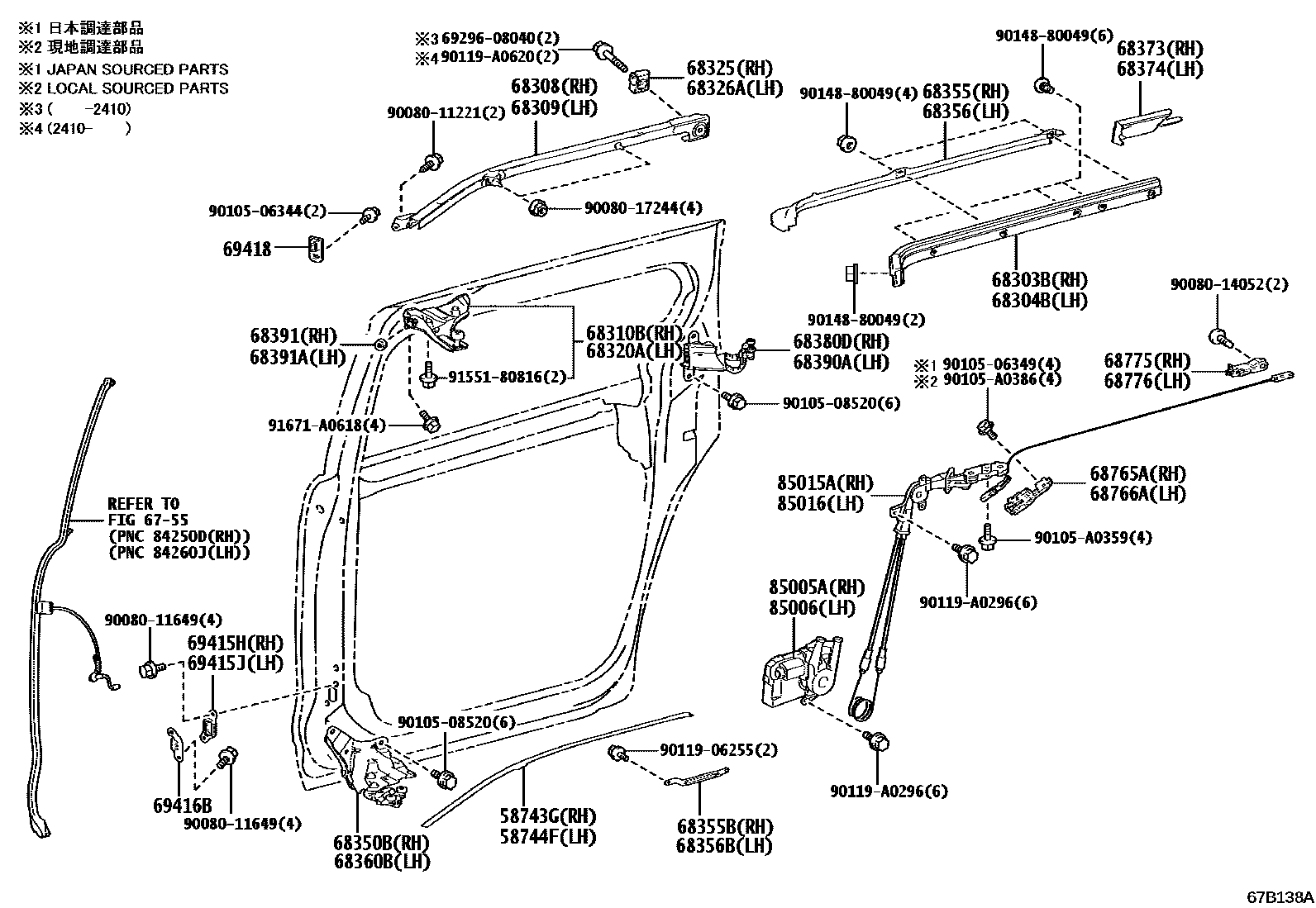

SLIDE ROLLER & RAIL
58743GPROTECTOR, SLIDE DOOR PANEL, RH
58744FPROTECTOR, SLIDE DOOR PANEL, LH
6755
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68310BROLLER ASSY, SLIDE DOOR, UPPER RH
68320AROLLER ASSY, SLIDE DOOR, UPPER, LH
68325CUSHION, SLIDE DOOR UPPER RAIL, RH
68326ACUSHION, SLIDE DOOR UPPER RAIL, LH
68350BROLLER ASSY, SLIDE DOOR, LOWER RH
68355GARNISH, SLIDE DOOR CENTER RAIL, RH
68355BPLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 RH
68356GARNISH, SLIDE DOOR CENTER RAIL, LH
68356BPLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 LH
68360BROLLER ASSY, SLIDE DOOR, LOWER LH
68373MOULDING, SLIDE RAIL END, RH
68374MOULDING, SLIDE RAIL END, LH
68380DHINGE ASSY, SLIDE DOOR, CENTER RH
68390AHINGE ASSY, SLIDE DOOR, CENTER LH
68391CUSHION, SLIDE DOOR UPPER ROLLER, RH
68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH
68765ABRACKET, SLIDE DOOR, CENTER NO.1 RH
68766ABRACKET, SLIDE DOOR, CENTER NO.1 LH
68775BRACKET, SLIDE DOOR, CENTER NO.2 RH
68776BRACKET, SLIDE DOOR, CENTER NO.2 LH
69415HSTOPPER, SLIDE DOOR DOWN FEMALE, RH
69415JSTOPPER, SLIDE DOOR DOWN FEMALE, LH
69416BSTOPPER, SLIDE DOOR DOWN MALE
RH
LH
69418STOP, SLIDE DOOR OPEN
85015ACABLE SUB-ASSY, POWER SLIDE DOOR, RH
85016CABLE SUB-ASSY, POWER SLIDE DOOR, LH
6929608040SCREW, DOOR INSIDE HANDLE
main69296-08040
9008011221
main90080-11221
9008011649
main90080-11649
9008014052
main90080-14052
9008017244
main90080-17244
9010506344
main90105-06344
9010506349
main90105-06349
9010508520
main90105-08520
90105A0359
main90105-A0359
90105A0386
main90105-A0386
9011906255
main90119-06255
90119A0296
main90119-A0296
90119A0620
main90119-A0620
9014880049
main90148-80049
9155180816
main91551-80816
91671A0618
main91671-A0618
51 parts on this diagram · 1 diagram in section
