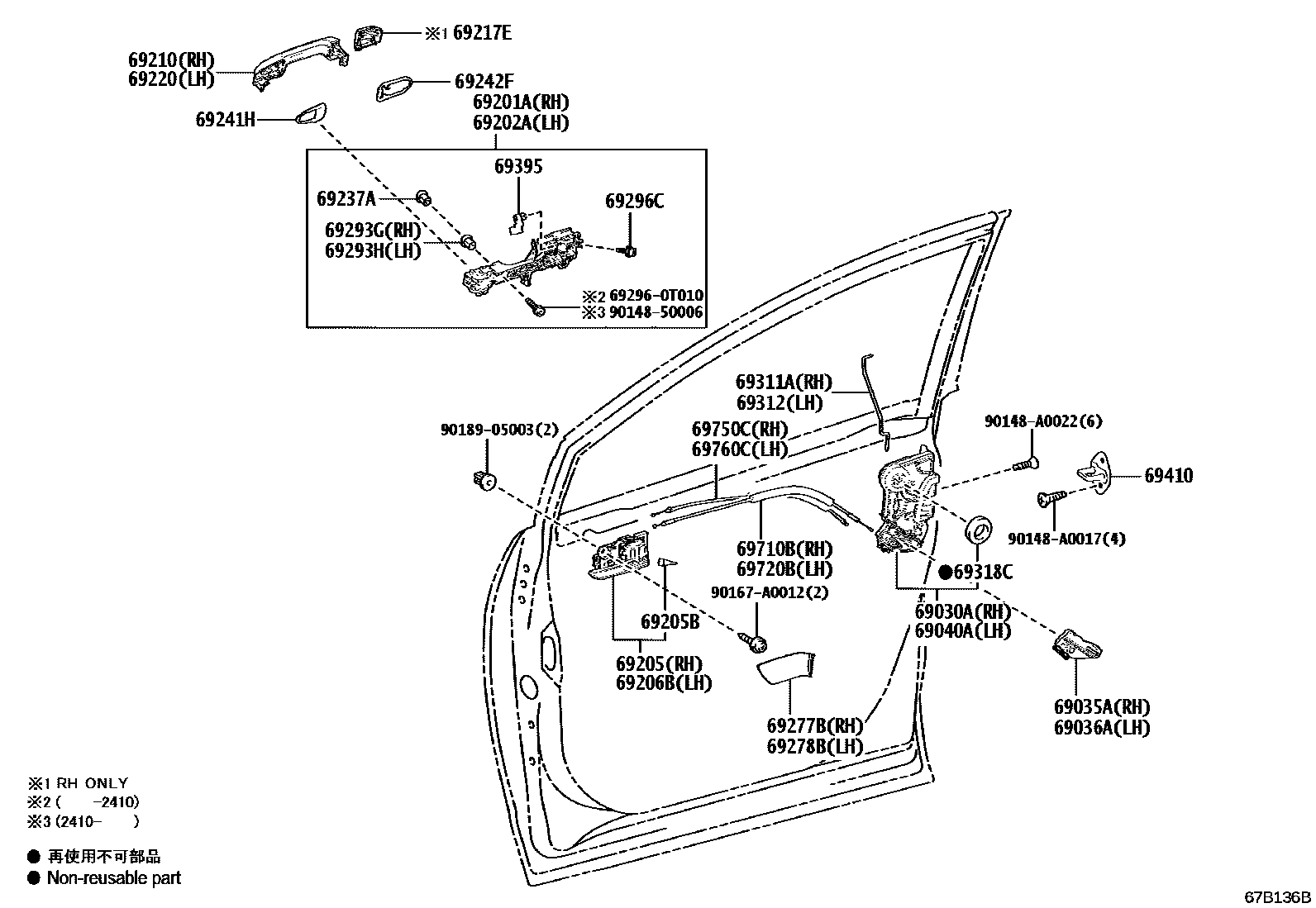

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02380iAXLH4#202011-202410

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02030iAXLH4#202410

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02030iAXLH4#202410

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02440iAXLH4#202011-202410

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-08010iAXLH4#202410

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-08010iAXLH4#202410

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02300-B2iAXLH4#..E202011-202410

LT.GRAY,TRIM1#

main69205-02300-B3iAXLH4#..E202410

COOL GRAY,TRIM1#

main69205-02380-A0iAXLH4#..X202011-202410

FROMAGE,TRIM4#

main69205-02380-B0iAXLH4#..X202410

COOL GRAY,TRIM1#

main69205-02380-B2iAXLH4#..X202011-202410

LT.GRAY,TRIM1#

main69205-06120-A0iAXLH4#..L202011-202410

FROMAGE,TRIM4#

main69205-06120-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM12,2#

main69205-06120-B2iAXLH4#..L202011-202410

LT.GRAY,TRIM1#

main69205-06120-B3iAXLH4#..S202011-202410

COOL GRAY,TRIM11

main69205-06120-C0iAXLH4#..L,S202410

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90080-54005×2iAXLH4#202410

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02350-B2iAXLH4#..E202011-202410

LT.GRAY,TRIM1#

main69206-02350-B3iAXLH4#..E202410

COOL GRAY,TRIM1#

main69206-02380-A0iAXLH4#..X202011-202410

FROMAGE,TRIM4#

main69206-02380-B0iAXLH4#..X202410

COOL GRAY,TRIM1#

main69206-02380-B2iAXLH4#..X202011-202410

LT.GRAY,TRIM1#

main69206-06160-A0iAXLH4#..L202011-202410

FROMAGE,TRIM4#

main69206-06160-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM12,2#

main69206-06160-B2iAXLH4#..L202011-202410

LT.GRAY,TRIM1#

main69206-06160-B3iAXLH4#..S202011-202410

COOL GRAY,TRIM11

main69206-06160-C0iAXLH4#..L,S202410

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-08060-A0iAXLH4#..S,X202011-202410

SUPER WHITE 2,040

main69210-08060-A1iAXLH4#..L,X202011-202109

WHITE PEARL CS.,070

main69210-08060-A2iAXLH4#..L,X202410

PLATINUM WHITE PEARL MC.,089

main69210-08060-B0iAXLH4#..L,S,X202011-202410

GRAY M.M.,1H1

main69210-08060-B1iAXLH4#..L,S,X202410-202511

SILVER ME.,1J9

main69210-08060-B2iAXLH40..S;AXLH45..S,X202410

CEMENT GRAY ME.,1H5

main69210-08060-B3iAXLH4#..L,S,X202410-202511

GRAY ME.,1G3

main69210-08060-C0iAXLH4#..L,S,X202011-202410

ATTITUDE BLACK MC.,218

main69210-08060-D0iAXLH4#..L,S,X202011-202410

RED MC.,3T3

main69210-08060-E0iAXLH4#..L,X202011-202410

DK. BROWN M.M.,4U3

main69210-08060-G1iAXLH4#..L,X202011-202410

GREEN M.M.,6X5

main69210-08060-J0iAXLH4#..L,S,X202011-202410

DK. BLUE MC.,8X8

main69211-0E040-A1iAXLH4#..E202410

SUPER WHITE 2,040

main69211-0E040-B0iAXLH4#..E202410-202511

GRAY ME.,1G3

main69211-0E040-B1iAXLH4#..E202410-202511

SILVER ME.,1J9

main69211-0E040-B3iAXLH4#..E202011-202410

GRAY M.M.,1H1

main69211-0E040-C0iAXLH4#..E202011-202410

ATTITUDE BLACK MC.,218

main69211-0E040-D0iAXLH4#..E202011-202410

RED MC.,3T3

main69211-0E040-E1iAXLH4#..E202011-202410

DK. BROWN M.M.,4U3

main69211-0E040-G1iAXLH4#..E202011-202410

GREEN M.M.,6X5

main69211-0E040-J0iAXLH4#..E202410

DK. BLUE MC.,8X8

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-0R160iAXLH4#202410

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-08070-A0iAXLH4#..S,X202011-202410

SUPER WHITE 2,040

main69210-08070-A1iAXLH4#..L,X202011-202109

WHITE PEARL CS.,070

main69210-08070-A2iAXLH4#..L,X202410

PLATINUM WHITE PEARL MC.,089

main69210-08070-B0iAXLH4#..L,S,X202011-202410

GRAY M.M.,1H1

main69210-08070-B1iAXLH4#..L,S,X202011-202410

SILVER ME.,1J9

main69210-08070-B2iAXLH40..S;AXLH45..S,X202109-202410

CEMENT GRAY ME.,1H5

main69210-08070-B3iAXLH4#..L,S,X202410-202511

GRAY ME.,1G3

main69210-08070-C0iAXLH4#..L,S,X202410

ATTITUDE BLACK MC.,218

main69210-08070-D0iAXLH4#..L,S,X202410

RED MC.,3T3

main69210-08070-E0iAXLH4#..L,X202011-202410

DK. BROWN M.M.,4U3

main69210-08070-G1iAXLH4#..L,X202410

GREEN M.M.,6X5

main69210-08070-J0iAXLH4#..L,S,X202011-202410

DK. BLUE MC.,8X8

main69211-08050-A0iAXLH4#..E202011-202410

SUPER WHITE 2,040

main69211-08050-B0iAXLH4#..E202011-202410

GRAY M.M.,1H1

main69211-08050-B1iAXLH4#..E202410-202511

SILVER ME.,1J9

main69211-08050-B2iAXLH4#..E202410-202511

GRAY ME.,1G3

main69211-08050-C0iAXLH4#..E202410

ATTITUDE BLACK MC.,218

main69211-08050-D0iAXLH4#..E202410

RED MC.,3T3

main69211-08050-E0iAXLH4#..E202011-202410

DK. BROWN M.M.,4U3

main69211-08050-G0iAXLH4#..E202011-202410

GREEN M.M.,6X5

main69211-08050-J0iAXLH4#..E202011-202410

DK. BLUE MC.,8X8

69237ANUT, FRONT DOOR HANDLE

main69237-62010×2iAXLH4#202011-202410

sub69237-0E010

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-08030×2iAXLH4#202410

69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-08020×2iAXLH4#202410

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-08050-A0iAXLH4#..L202410

FROMAGE,TRIM4#

main69277-08050-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

LT.GRAY,TRIM10

main69277-08050-B1iAXLH4#..E,S,X202410

COOL GRAY,TRIM1#

main69277-08050-B2iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM13

main69277-08050-C0iAXLH40..L,S;AXLH45..07S202410

BLACK,TRIM2#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-08070-A0iAXLH4#..L,X202011-202410

FROMAGE,TRIM4#

main69278-08070-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

LT.GRAY,TRIM10

main69278-08070-B1iAXLH4#..E,S,X202410

COOL GRAY,TRIM1#

main69278-08070-B2iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM13

main69278-08070-C0iAXLH40..L,S;AXLH45..07S202410

BLACK,TRIM2#

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iAXLH4#202011-202410

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iAXLH4#202410

69296CSCREW, DOOR INSIDE HANDLE

main90084-14006×2iAXLH4#202410

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-08030iAXLH4#202410

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-08030iAXLH4#202410

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-AA010×2iAXLH4#202410

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69239-06040×2iAXLH4#202410

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02020×2iAXLH4#202410

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-08040iAXLH4#202410

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-08040iAXLH4#202410

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-08050iAXLH4#202410

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-08050iAXLH4#202410

692960T010SCREW, DOOR INSIDE HANDLE

main69296-0T010

9014850006

main90148-50006

90148A0017

main90148-A0017

90148A0022

main90148-A0022

90167A0012

main90167-A0012

9018905003

main90189-05003

35 parts on this diagram · 1 diagram in section
