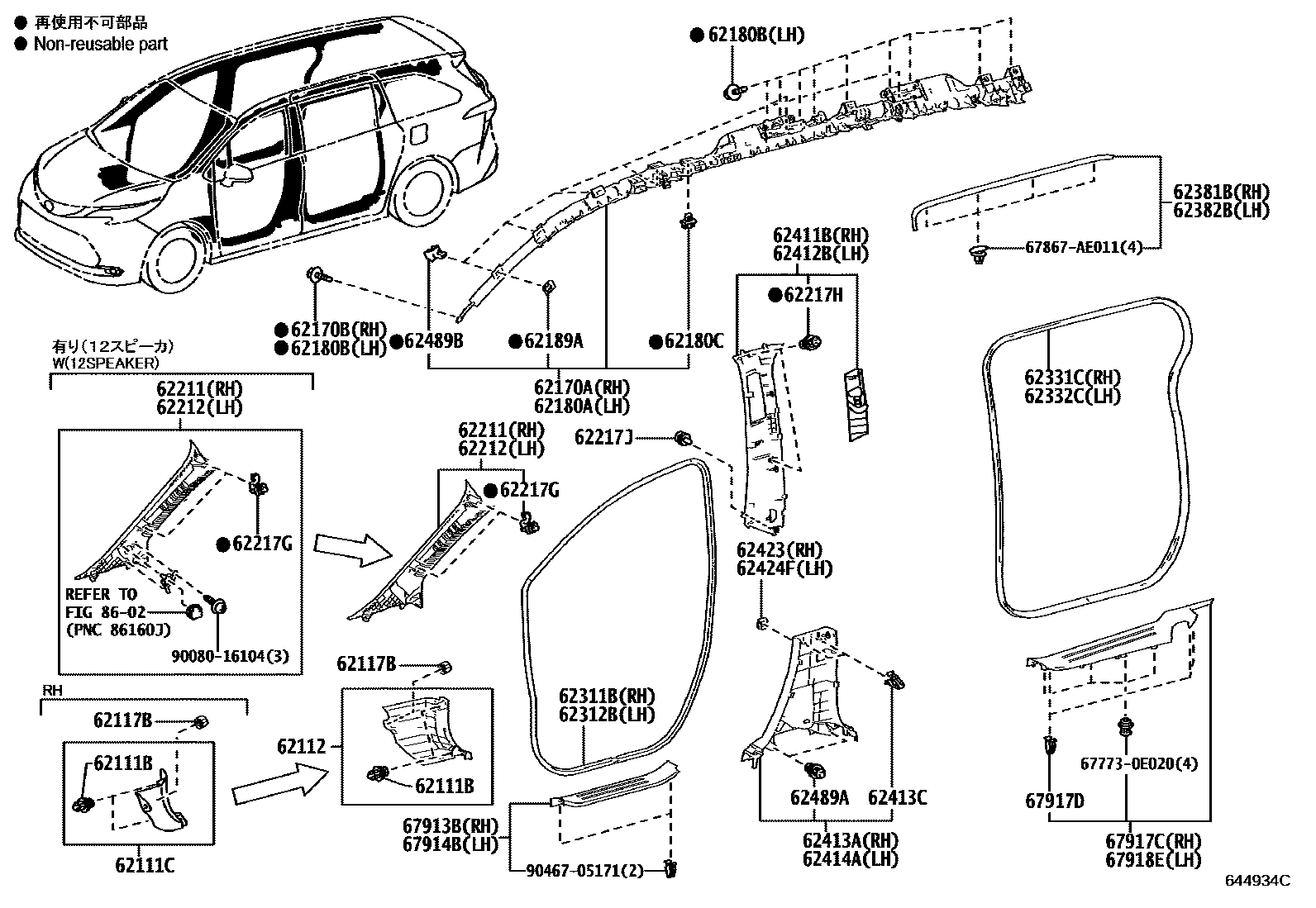

INSIDE TRIM BOARD

0001 1 0002 1LH 0003 1RH

62111BCLIP(FOR COWL SIDE TRIM)

main62489-0E010iAXLH4#202011-202410

62111CBOARD, COWL SIDE TRIM, RH

main62111-08050-B0iAXLH45..X202011-202410

NEUTRAL WARM GRAY,TRIM10

main62111-08050-B0iAXLH45..X202011-202410

NEUTRAL WARM GRAY,TRIM1#

main62111-08050-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

NEUTRAL WARM GRAY,TRIM11

main62111-08050-C0iAXLH40..S;AXLH45..S,X202410

BLACK,TRIM1#,2#

main62111-08050-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main62111-08050-C0iAXLH4#..L202410

BLACK,TRIM1#

main62111-08050-C0iAXLH4#..S202011-202410

BLACK,TRIM12,2#

main62111-08050-C0iAXLH4#..S202011-202410

BLACK,TRIM13,4#

main62111-08050-C0iAXLH4#..S202011-202410

BLACK,TRIM4#

62112BOARD, COWL SIDE TRIM, LH

main62112-08050-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM10

main62112-08050-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM1#

main62112-08050-B0iAXLH45..X202011-202410

NEUTRAL WARM GRAY,TRIM11

main62112-08050-C0iAXLH4#..L202410

BLACK,TRIM1#

main62112-08050-C0iAXLH40..S;AXLH45..S,X202410

BLACK,TRIM2#,4#

main62112-08050-C0iAXLH40..S;AXLH45..S,X202410

BLACK,TRIM1#,2#

main62112-08050-C0iAXLH4#..S202011-202410

BLACK,TRIM12,2#

main62112-08050-C0iAXLH4#..S202011-202410

BLACK,TRIM13,4#

main62112-08050-C0iAXLH4#..S202011-202410

BLACK,TRIM4#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-A0024iAXLH4#202011-202410

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-08050iAXLH4#202011-202410

62170BBOLT, W/WASHER

main90080-11699iAXLH4#202011-202410

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-08060iAXLH4#202011-202410

62180BBOLT, W/WASHER

main90080-11699iAXLH4#202011-202410

62180CCLIP, CURTAIN SHIELD AIRBAG

main90467-18017iAXLH4#202011-202410

62189ASPACER, CURTAIN SHIELD AIRBAG CLIP

main62189-42010iAXLH4#202011-202410

62211GARNISH, FRONT PILLAR, RH

main62211-08100-B0iAXLH4#..E,X202011-202410

LT.GRAY,TRIM1#

main62211-08100-B1iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM1#

main62211-08100-B1iAXLH4#..X202011-202410

NEUTRAL WARM GRAY,TRIM4#

main62211-08100-C0iAXLH4#..S202410-202511

BLACK,TRIM1#,2#

main62211-08110-B0iAXLH40..X202011-202410

AUDIO-SURROUND 12SPEAKER & JBL,LT.GRAY,TRIM10

main62211-08110-B0iAXLH45..X202011-202410

AUDIO-SURROUND 12SPEAKER & JBL,LT.GRAY,TRIM1#

main62211-08110-B0iAXLH4#..L202011-202410

LT.GRAY,TRIM1#

main62211-08110-B1iAXLH40..X202011-202410

NEUTRAL WARM GRAY,TRIM4#

main62211-08110-B1iAXLH4#..L202011-202410

AUDIO-SURROUND 12SPEAKER & JBL,NEUTRAL WARM GRAY,TRIM1#,2#

main62211-08110-B1iAXLH4#..L202011-202410

AUDIO-SURROUND 12SPEAKER & JBL,NEUTRAL WARM GRAY,TRIM4#

main62211-08110-B1iAXLH4#..L202011-202410

AUDIO-SURROUND 12SPEAKER & JBL,NEUTRAL WARM GRAY,TRIM13,4#

main62211-08110-C0iAXLH4#..L202410

AUDIO-JBL SURROUND 12SPEAKER,BLACK,TRIM2#

main62211-08110-C0iAXLH45..X202410

BLACK,TRIM2#,4#

62212GARNISH, FRONT PILLAR, LH

main62212-08100-B0iAXLH4#..E,X202011-202410

LT.GRAY,TRIM1#

main62212-08100-B1iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM4#

main62212-08100-B1iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM1#

main62212-08100-C0iAXLH4#..S202410-202511

BLACK,TRIM1#,2#

main62212-08110-B0iAXLH4#..L202011-202410

LT.GRAY,TRIM1#

main62212-08110-B0iAXLH4#..L202011-202410

AUDIO-SURROUND 12SPEAKER & JBL,LT.GRAY,TRIM10

main62212-08110-B0iAXLH40..X202011-202410

AUDIO-SURROUND 12SPEAKER & JBL,LT.GRAY,TRIM1#

main62212-08110-B1iAXLH4#..S202011-202410

AUDIO-SURROUND 12SPEAKER & JBL,NEUTRAL WARM GRAY,TRIM4#

main62212-08110-B1iAXLH4#..L202011-202410

NEUTRAL WARM GRAY,TRIM4#

main62212-08110-B1iAXLH4#..L202011-202410

AUDIO-SURROUND 12SPEAKER & JBL,NEUTRAL WARM GRAY,TRIM1#,2#

main62212-08110-B1iAXLH4#..L202011-202410

AUDIO-SURROUND 12SPEAKER & JBL,NEUTRAL WARM GRAY,TRIM13,4#

main62212-08110-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main62212-08110-C0iAXLH45..X202410

AUDIO-JBL SURROUND 12SPEAKER,BLACK,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-11020iAXLH4#202011-202310

main62217-48020iAXLH4#202310-202410

62217HCLIP, CENTER PILLER GARNISH

main62489-0E010iAXLH4#202011-202410

62217JCLIP, CENTER PILLER GARNISH

main90467-10216iAXLH4#202011-202410

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-08030iAXLH4#202011-202410

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-08030iAXLH4#202011-202410

62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-08010iAXLH4#202011-202410

62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-08010iAXLH4#202011-202410

62381BWEATHERSTRIP, ROOF SIDE RAIL, RH

main62381-08050iAXLH4#202011-202410

62382BWEATHERSTRIP, ROOF SIDE RAIL, LH

main62382-08050iAXLH4#202011-202410

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-08070-A0iAXLH4#..S202011-202410

FROMAGE,TRIM4#

main62411-08070-A0iAXLH4#..S202011-202410

FROMAGE,TRIM23

main62411-08070-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

LT.GRAY,TRIM1#

main62411-08070-B0iAXLH45..X202011-202410

LT.GRAY,TRIM10

main62411-08070-B1iAXLH4#..S202011-202410

COOL GRAY,TRIM11

main62411-08070-B1iAXLH4#..S202410

COOL GRAY,TRIM1#

main62411-08070-B2iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM12,23

main62411-08070-B2iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM13

main62411-08070-C0iAXLH4#..L,S202410

BLACK,TRIM1#,2#

main62411-08070-C0iAXLH45..X202410

BLACK,TRIM2#

main62411-08070-C0iAXLH45..X202410

BLACK,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-08080-A0iAXLH4#..L202011-202410

FROMAGE,TRIM4#

main62412-08080-A0iAXLH4#..S202011-202410

FROMAGE,TRIM23

main62412-08080-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

LT.GRAY,TRIM1#

main62412-08080-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

LT.GRAY,TRIM10

main62412-08080-B1iAXLH4#..S202410

COOL GRAY,TRIM1#

main62412-08080-B1iAXLH4#..S202011-202410

COOL GRAY,TRIM11

main62412-08080-B2iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM12,23

main62412-08080-B2iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM13

main62412-08080-C0iAXLH4#..L,S202410

BLACK,TRIM1#

main62412-08080-C0iAXLH4#..L,S202410

BLACK,TRIM2#

main62412-08080-C0iAXLH4#..L,S202410

BLACK,TRIM1#,2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-08080-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM10

main62413-08080-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

NEUTRAL WARM GRAY,TRIM1#

main62413-08080-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

NEUTRAL WARM GRAY,TRIM11

main62413-08080-C0iAXLH45..L;AXLH40..L,X202011-202410

BLACK,TRIM4#

main62413-08080-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main62413-08080-C0iAXLH4#..L202410

BLACK,TRIM1#,2#

main62413-08080-C0iAXLH4#..L202410

BLACK,TRIM1#

main62413-08080-C0iAXLH4#..S202011-202410

BLACK,TRIM12,2#

main62413-08080-C0iAXLH4#..S202011-202410

BLACK,TRIM13,4#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-05171iAXLH4#202011-202410

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-08060-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM1#

main62414-08060-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM11

main62414-08060-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM10

main62414-08060-C0iAXLH45..E;AXLH40..E,X202410

BLACK,TRIM1#

main62414-08060-C0iAXLH45..X202011-202410

BLACK,TRIM13,4#

main62414-08060-C0iAXLH45..X202011-202410

BLACK,TRIM4#

main62414-08060-C0iAXLH45..L;AXLH40..L,X202011-202410

BLACK,TRIM12,2#

main62414-08060-C0iAXLH45..E;AXLH40..E,X202410

BLACK,TRIM1#,2#

main62414-08060-C0iAXLH45..E;AXLH40..E,X202410

BLACK,TRIM2#,4#

62423COVER, CENTER PILLAR GARNISH, LOWER RH

main62423-08040-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

NEUTRAL WARM GRAY,TRIM1#

main62423-08040-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

NEUTRAL WARM GRAY,TRIM10

main62423-08040-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

NEUTRAL WARM GRAY,TRIM11

main62423-08040-C0iAXLH45..L;AXLH40..L,X202011-202410

BLACK,TRIM4#

main62423-08040-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main62423-08040-C0iAXLH4#..L202410

BLACK,TRIM1#,2#

main62423-08040-C0iAXLH4#..L202410

BLACK,TRIM1#

main62423-08040-C0iAXLH4#..S202011-202410

BLACK,TRIM12,2#

main62423-08040-C0iAXLH4#..S202011-202410

BLACK,TRIM13,4#

62424FCOVER, CENTER PILLAR GARNISH, LOWER LH

main62424-08040-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM10

main62424-08040-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

NEUTRAL WARM GRAY,TRIM1#

main62424-08040-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

NEUTRAL WARM GRAY,TRIM11

main62424-08040-C0iAXLH4#..S202011-202410

BLACK,TRIM13,4#

main62424-08040-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main62424-08040-C0iAXLH4#..L202410

BLACK,TRIM1#,2#

main62424-08040-C0iAXLH4#..L202410

BLACK,TRIM1#

main62424-08040-C0iAXLH4#..S202011-202410

BLACK,TRIM12,2#

main62424-08040-C0iAXLH4#..S202011-202410

BLACK,TRIM4#

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-0E010iAXLH4#202011-202410

62489BCLIP, ROOF SIDE INNER GARNISH

main62489-28010iAXLH4#202011-202410

67913BPLATE, FRONT DOOR SCUFF, RH

main67913-08030-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM10

main67913-08030-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM11

main67913-08030-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

NEUTRAL WARM GRAY,TRIM1#

main67913-08030-C0iAXLH4#..S202011-202410

BLACK,TRIM13,4#

main67913-08030-C0iAXLH4#..S202011-202410

BLACK,TRIM12,2#

main67913-08030-C0iAXLH45..E;AXLH40..E,X202410

BLACK,TRIM1#

main67913-08030-C0iAXLH45..E;AXLH40..E,X202410

BLACK,TRIM1#,2#

main67913-08030-C0iAXLH45..E;AXLH40..E,X202410

BLACK,TRIM2#,4#

main67913-08030-C0iAXLH4#..S202011-202410

BLACK,TRIM4#

67914BPLATE, FRONT DOOR SCUFF, LH

main67914-08030-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

NEUTRAL WARM GRAY,TRIM1#

main67914-08030-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM11

main67914-08030-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM10

main67914-08030-C0iAXLH4#..S202011-202410

BLACK,TRIM4#

main67914-08030-C0iAXLH4#..S202011-202410

BLACK,TRIM13,4#

main67914-08030-C0iAXLH4#..S202011-202410

BLACK,TRIM12,2#

main67914-08030-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main67914-08030-C0iAXLH4#..L202410

BLACK,TRIM1#,2#

main67914-08030-C0iAXLH4#..L202410

BLACK,TRIM1#

67917CPLATE, REAR DOOR SCUFF, RH

main67917-08040-B0iAXLH45..X202011-202410

NEUTRAL WARM GRAY,TRIM1#

main67917-08040-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

NEUTRAL WARM GRAY,TRIM10

main67917-08040-B0iAXLH45..E,L;AXLH40..E,L,X202011-202410

NEUTRAL WARM GRAY,TRIM11

main67917-08040-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main67917-08040-C0iAXLH4#..L202410

BLACK,TRIM1#,2#

main67917-08040-C0iAXLH4#..L202410

BLACK,TRIM1#

main67917-08040-C0iAXLH4#..S202011-202410

BLACK,TRIM12,2#

main67917-08040-C0iAXLH4#..S202011-202410

BLACK,TRIM13,4#

main67917-08040-C0iAXLH4#..S202011-202410

BLACK,TRIM4#

67917DCLIP, REAR DOOR SCUFF PLATE

main90467-05171iAXLH4#202011-202410

67918EPLATE, REAR DOOR SCUFF, LH

main67918-08040-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM1#

main67918-08040-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM11

main67918-08040-B0iAXLH4#..S202011-202410

NEUTRAL WARM GRAY,TRIM10

main67918-08040-C0iAXLH4#..S202011-202410

BLACK,TRIM13,4#

main67918-08040-C0iAXLH4#..S202011-202410

BLACK,TRIM4#

main67918-08040-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main67918-08040-C0iAXLH45..X202011-202410

BLACK,TRIM12,2#

main67918-08040-C0iAXLH4#..L202410

BLACK,TRIM1#,2#

main67918-08040-C0iAXLH4#..L202410

BLACK,TRIM1#

8602

677730E020

main67773-0E020

67867AE011CLIP, DOOR WEATHERSTRIP

main67867-AE011

9008016104

main90080-16104

9046705171

main90467-05171

40 parts on this diagram · 3 diagrams in section
