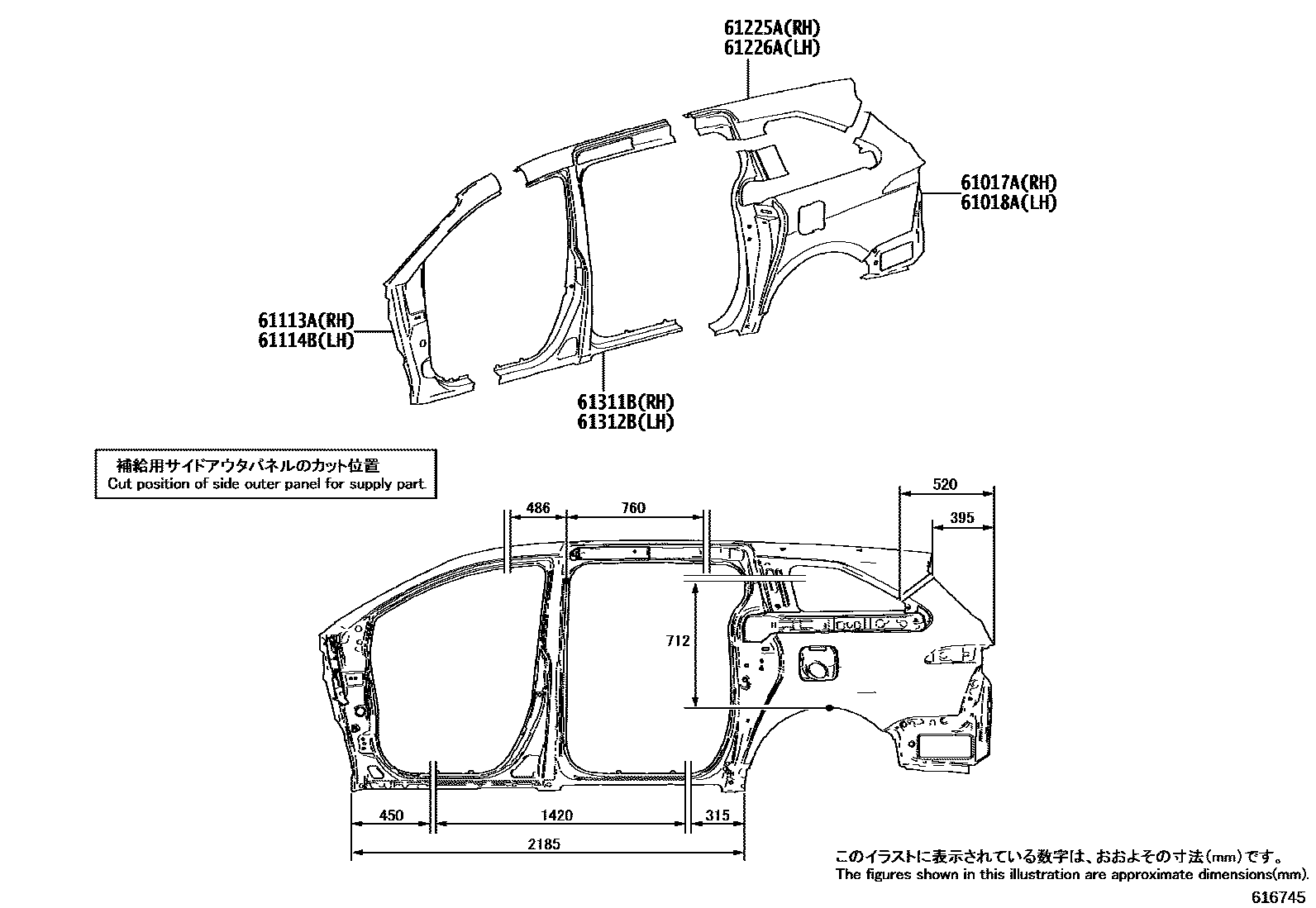

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

61017AMEMBER SUB-ASSY, SIDE, REAR RH

main61017-08010iAXLH4#202011-202410

61018AMEMBER SUB-ASSY, SIDE, REAR LH

main61018-08010iAXLH4#202011-202410

61113APANEL, SIDE, OUTER NO.2 RH

main61113-08030iAXLH4#202011-202410

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-08030iAXLH4#202011-202410

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-08010iAXLH4#202011-202410

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61226-08010iAXLH4#202011-202410

61311BPILLAR, CENTER BODY, OUTER RH

main61311-08050iAXLH4#202011-202410

61312BPILLAR, CENTER BODY, OUTER LH

main61312-08050iAXLH4#202011-202410

8 parts on this diagram · 3 diagrams in section
