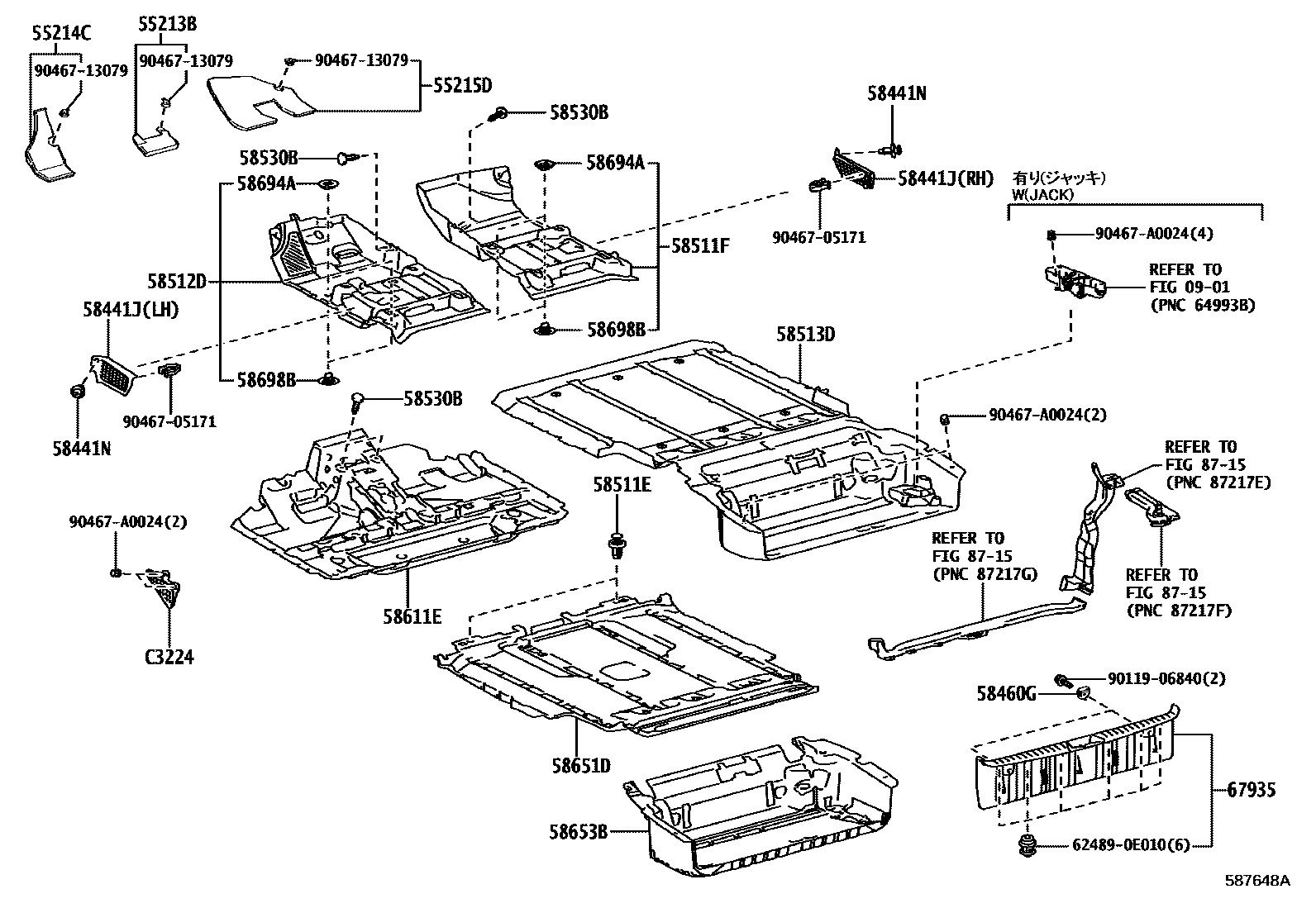

FLOOR MAT & SILENCER PAD
0901
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58441JCOVER, BATTERY SERVICE HOLE
BLACK,TRIM1#,LH
BLACK,TRIM1#,2#,LH
BLACK,TRIM1#,4#,LH
BLACK,TRIM2#,4#,LH
BLACK,TRIM1#,4#,RH
BLACK,TRIM2#,4#,RH
BLACK,TRIM1#,2#,RH
BLACK,TRIM1#,RH
58441NCLIP(FOR BATTERY SERVICE HOLE COVER)
58460GSTRIKER ASSY, LUGGAGE HOLD BELT
58511ECLIP(FOR FRONT FLOOR MAT)
58511FCARPET, FLOOR, FRONT RH
CARPET,TRIM2#,4#
CARPET,TRIM1#,2#
CARPET,TRIM1#
CARPET,TRIM1#,4#
58512DCARPET, FLOOR, FRONT LH
CARPET,TRIM1#,2#
CARPET,TRIM2#,4#
CARPET,TRIM1#
CARPET,TRIM1#,4#
58513DCARPET, FLOOR, FRONT CENTER
ACCESSORY BOX-WITHOUT,CARPET,TRIM1#,4#
CARPET,TRIM1#
CARPET,TRIM1#,4#
CARPET,TRIM1#
CARPET,TRIM1#,2#
CARPET,TRIM2#,4#
ACCESSORY BOX-WITHOUT,CARPET,TRIM1#,4#
CARPET,TRIM1#,4#
CARPET,TRIM1#,4#
CARPET,TRIM1#
CARPET,TRIM1#,4#
CARPET,TRIM1#
CARPET,TRIM1#,4#
CARPET,TRIM1#,4#
58530BCLIP(FOR FRONT FLOOR CARPET)
58611ESHEET, FRONT FLOOR SILENCER
58651DSHEET, REAR FLOOR SILENCER, NO.1
TAIWAN SPEC&ACCESSORY BOX-WITHOUT
KOREA SPEC&SPARE TIRE-T155/80R17(TEMPORARY)&ACCESSORY BOX-WITHOUT
KOREA SPEC&ACCESSORY BOX-WITHOUT
TAIWAN SPEC&SPARE TIRE-T155/80R17(TEMPORARY)&ACCESSORY BOX-WITHOUT
SPARE TIRE-T155/80R17(TEMPORARY)&ACCESSORY BOX-WITHOUT
ACCESSORY BOX-WITHOUT
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
67935PLATE, BACK DOOR SCUFF
NEUTRAL WARM GRAY,TRIM11
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM4#
BLACK,TRIM12,2#
BLACK,TRIM13,4#
BLACK,TRIM2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM1#
8715
C3224SPACER, FLOOR PANEL SIDE, LH
624890E010CLIP, MAP LAMP RETAINER
main62489-0E010
9011906840
main90119-06840
9046705171
main90467-05171
9046713079
main90467-13079
90467A0024
main90467-A0024
25 parts on this diagram · 4 diagrams in section
