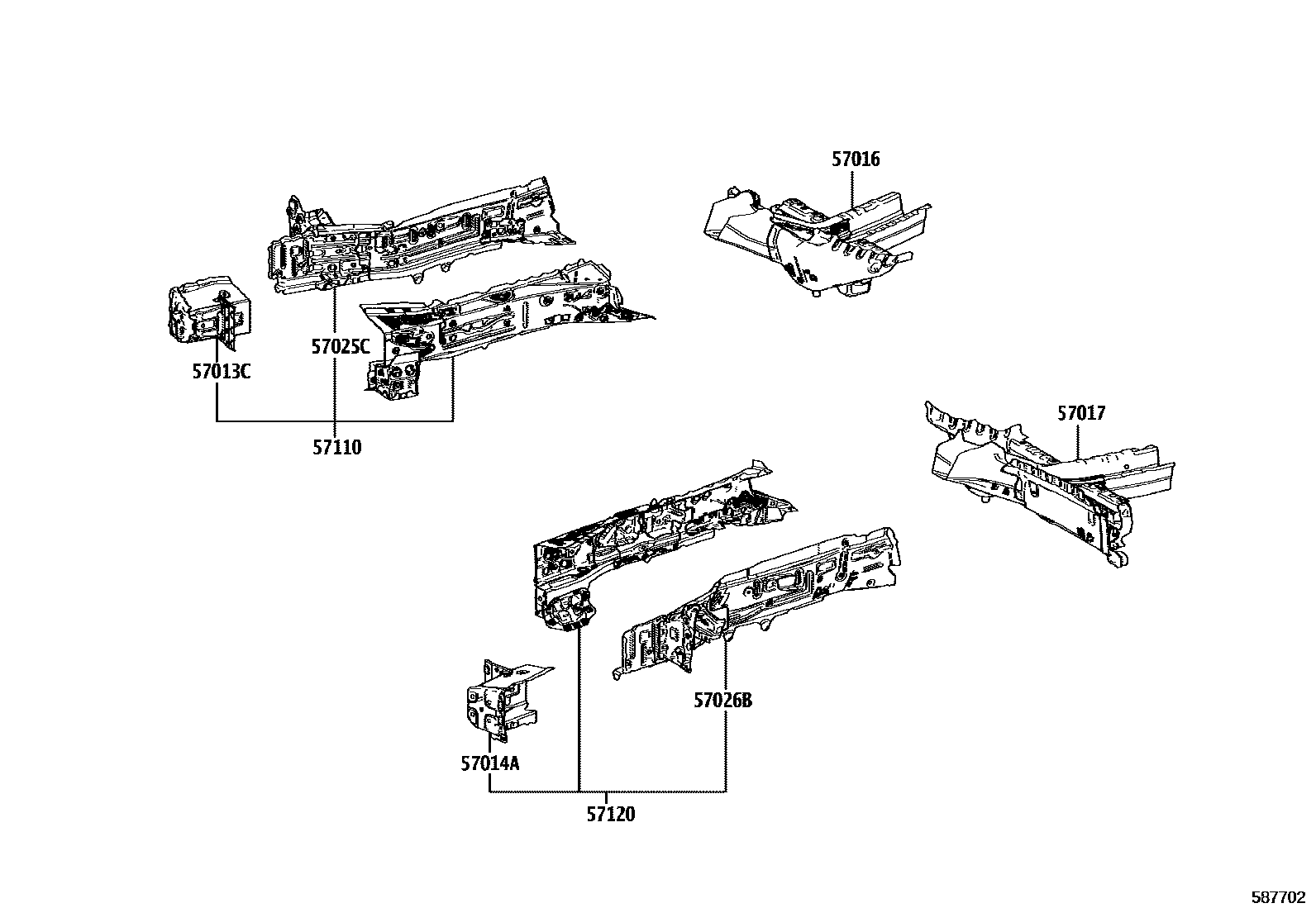

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FRONT SIDE MEMBER 0002 1FLOOR MEMBER 0003 1FLOOR MEMBER 0004 1FLOOR PANEL

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-08080iAXLH4#202011-202410

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-08020iAXLH4#202011-202410

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-08020iAXLH4#202011-202410

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-08020iAXLH4#202011-202410

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-08030iAXLH4#202011-202308

sub57025-08031

main57025-08031iAXLH4#202309-202410

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-08030iAXLH4#202011-202308

sub57026-08031

main57026-08031iAXLH4#202309-202410

57110MEMBER ASSY, FRONT SIDE, RH

main57110-08010iAXLH4#202011-202308

sub57110-08011

main57110-08011iAXLH4#202309-202410

57120MEMBER ASSY, FRONT SIDE, LH

main57120-08010iAXLH4#202011-202308

sub57120-08011

main57120-08011iAXLH4#202309-202410

8 parts on this diagram · 4 diagrams in section
