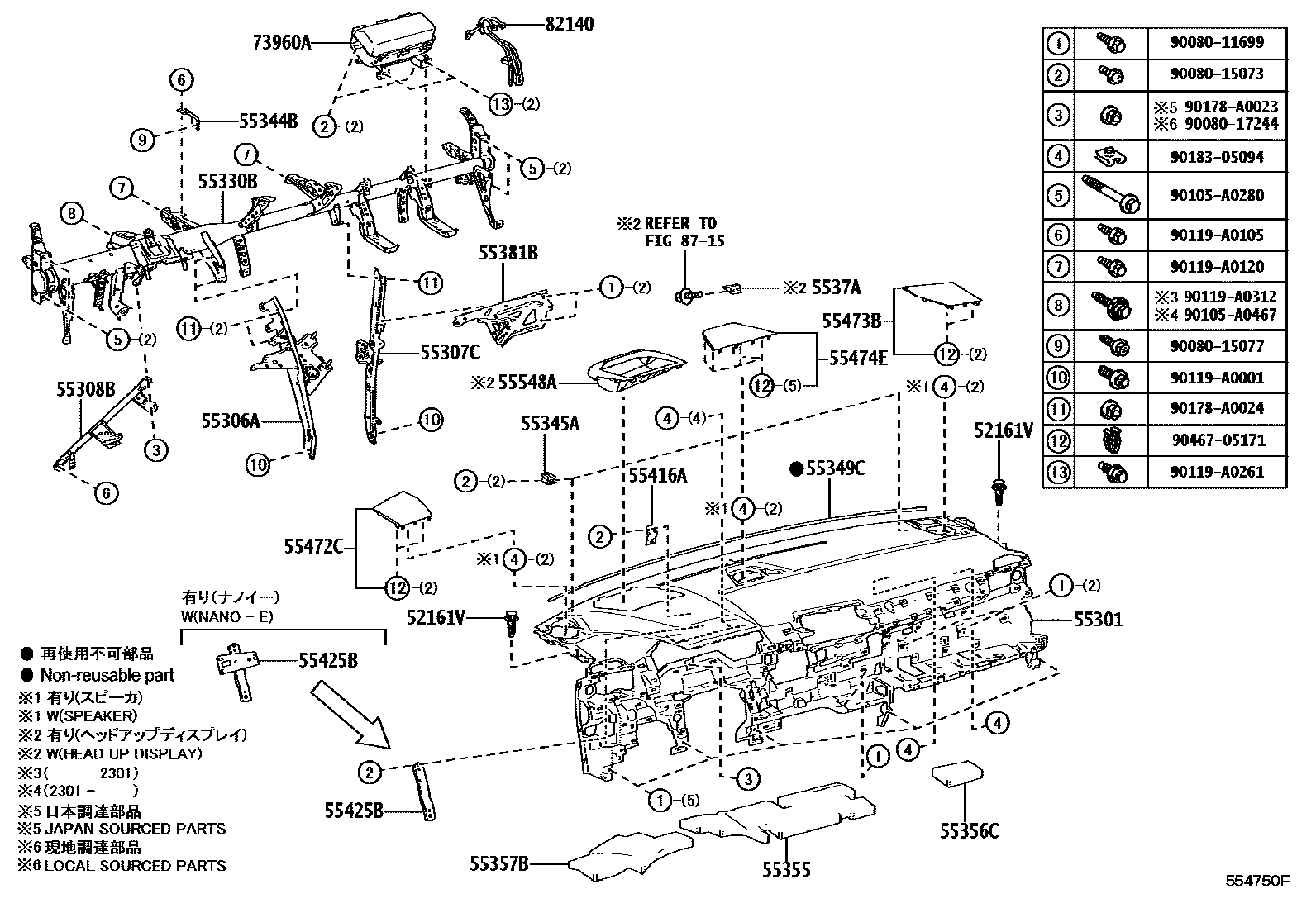

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-02020iAXLH4#202011-202410

55301PANEL SUB-ASSY, INSTRUMENT

main55301-08060-C0iAXLH4#..L202011-202410

BLACK,TRIM1#,4#

main55301-08060-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main55301-08060-C0iAXLH4#..L202410

BLACK,TRIM1#,2#

main55301-08060-C0iAXLH4#..L202011-202410

BLACK,TRIM1#

main55301-08060-C0iAXLH4#..L202011-202410

AUDIO-SURROUND 12SPEAKER & JBL,BLACK,TRIM1#,2#

main55301-08060-C0iAXLH4#..L202011-202410

AUDIO-SURROUND 12SPEAKER & JBL,BLACK,TRIM1#,4#

main55301-08070-C0iAXLH4#..L202410

HEAD UP DISPLAY-WITH,BLACK,TRIM2#,4#

main55301-08070-C0iAXLH4#..L202011-202410

HEAD UP DISPLAY-WITH,BLACK,TRIM1#,40,41

main55301-08070-E0iAXLH4#..L202011-202410

HEAD UP DISPLAY-WITH,NOBLE BROWN,TRIM41

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-08050iAXLH4#202011-202410

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-08040iAXLH4#202011-202410

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-08020iAXLH4#202011-202410

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-08070iAXLH4#202011-202410

55344BBRACKET, AIR CONDITIONING MOUNTING, NO.1

main55344-08010iAXLH4#202011-202410

55345ACLIP, INSTRUMENT PANEL, NO.1

main55328-0E060iAXLH4#202011-202410

(L)

main55328-60090iAXLH4#202011-202410

(J)

55349CCUSHION, INSTRUMENT PANEL

main55349-08030iAXLH4#202011-202410

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-08040iAXLH4#202011-202410

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-08040iAXLH4#202011-202410

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-08040iAXLH4#202011-202410

5537ABRACKET, INSTRUMENT PANEL GUIDE, NO.3

main5537A-08020iAXLH4#..L202011-202410

HEAD UP DISPLAY-WITH

55381BBRACKET, FINISH PANEL MOUNTING, NO.1

main55381-08040iAXLH4#202011-202410

55416ARETAINER, METER HOOD, NO.1

main55416-08030iAXLH4#202011-202410

55425BREINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL

main55425-08030iAXLH4#202011-202410

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-08020-C0iAXLH45..E;AXLH40..E,X202011-202410

BLACK,TRIM1#,2#

main55472-08020-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main55472-08020-C0iAXLH4#..L202011-202410

BLACK,TRIM1#

main55472-08020-C0iAXLH4#..E202011-202410

BLACK,TRIM1#,40,41

main55472-08020-C0iAXLH4#..E202011-202410

BLACK,TRIM1#,4#

main55472-08020-E0iAXLH4#..L202011-202410

NOBLE BROWN,TRIM41

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-08020-C0iAXLH4#..L202011-202410

BLACK,TRIM1#,2#

main55473-08020-C0iAXLH4#..L202011-202410

BLACK,TRIM1#

main55473-08020-C0iAXLH40..S;AXLH45..S,X202410

BLACK,TRIM2#,4#

main55473-08020-C0iAXLH4#..E202011-202410

BLACK,TRIM1#,40,41

main55473-08020-C0iAXLH4#..E202011-202410

BLACK,TRIM1#,4#

main55473-08020-E0iAXLH4#..L202011-202410

NOBLE BROWN,TRIM41

55474EPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3

main55474-08070-C0iAXLH4#..S202011-202410

BLACK,TRIM1#

main55474-08070-C0iAXLH4#..L202410

BLACK,TRIM2#,4#

main55474-08070-C0iAXLH4#..L202011-202410

BLACK,TRIM1#,2#

main55474-08070-C0iAXLH4#..E202011-202410

BLACK,TRIM1#,40,41

main55474-08070-C0iAXLH4#..E202011-202410

BLACK,TRIM1#,4#

main55474-08070-E0iAXLH4#..L202011-202410

NOBLE BROWN,TRIM41

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-08010-C0iAXLH4#..L202011-202410

HEAD UP DISPLAY-WITH,BLACK,TRIM1#,40,41

main55548-08010-C0iAXLH4#..L202410

HEAD UP DISPLAY-WITH,BLACK,TRIM2#,4#

main55548-08010-E0iAXLH4#..L202011-202410

HEAD UP DISPLAY-WITH,NOBLE BROWN,TRIM41

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-08120iAXLH4#202011-202410

82140WIRE ASSY, INSTRUMENT PANEL

main82140-08030iAXLH4#202011-202410

8715

9008011699

main90080-11699

9008015073

main90080-15073

9008015077

main90080-15077

9008017244

main90080-17244

90105A0280

main90105-A0280

90105A0467

main90105-A0467

90119A0001

main90119-A0001

90119A0105

main90119-A0105

90119A0120

main90119-A0120

90119A0261

main90119-A0261

90119A0312

main90119-A0312

90178A0023

main90178-A0023

90178A0024

main90178-A0024

9018305094

main90183-05094

9046705171

main90467-05171

38 parts on this diagram · 4 diagrams in section
