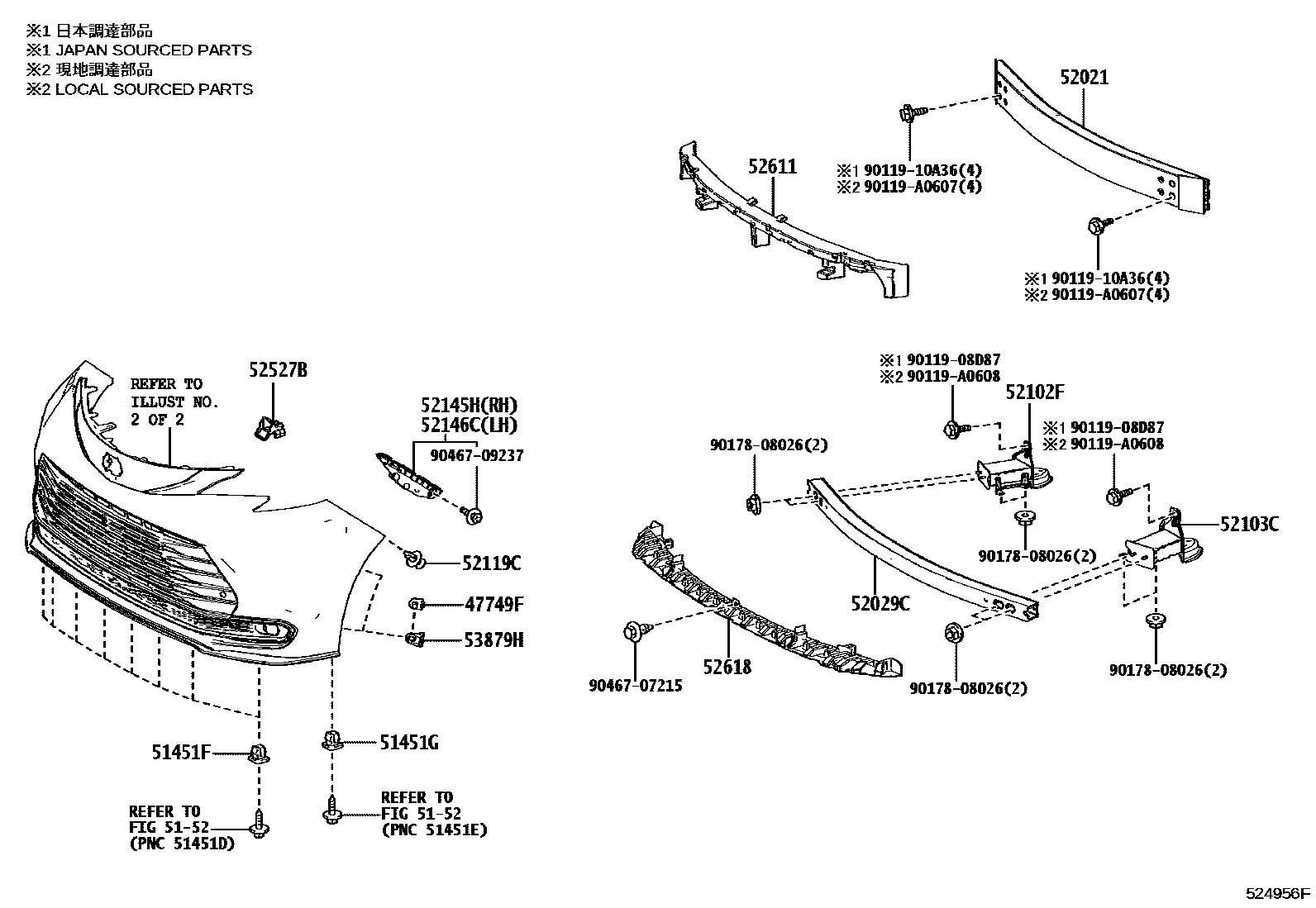

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-33030iAXLH4#202011-202410

51451FGROMMET, NO.1

main90189-06237iAXLH4#202011-202410

51451GGROMMET, NO.2

main90189-06237iAXLH4#202011-202410

5152

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-08050iAXLH4#202011-202410

52029CREINFORCEMENT SUB-ASSY, FRONT BUMPER, NO.2

main52029-08010iAXLH4#202011-202410

52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-08010iAXLH4#202011-202410

52103CEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-08010iAXLH4#202011-202410

52119CCLIP, FRONT BUMPER COVER

main90467-05170iAXLH4#202011-202410

52145HSTAY, FRONT BUMPER SIDE, RH

main52145-08040iAXLH4#202011-202410

52146CSTAY, FRONT BUMPER SIDE, LH

main52146-08030iAXLH4#202011-202410

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52527-02020iAXLH4#202011-202410

52611ABSORBER, FRONT BUMPER ENERGY

main52611-08090iAXLH4#..E,L,X202011-202410

main52611-08100iAXLH4#..S202011-202410

52618ABSORBER, FRONT BUMPER, LOWER

main52618-08010iAXLH4#..E,L,X202011-202410

main52618-08020iAXLH4#..S202011-202410

53879HRETAINER, FRONT FENDER LINER

main53879-33030iAXLH4#202011-202410

9011908D87

main90119-08D87

9011910A36

main90119-10A36

90119A0607

main90119-A0607

90119A0608

main90119-A0608

9017808026

main90178-08026

9046707215

main90467-07215

9046709237

main90467-09237

22 parts on this diagram · 4 diagrams in section
