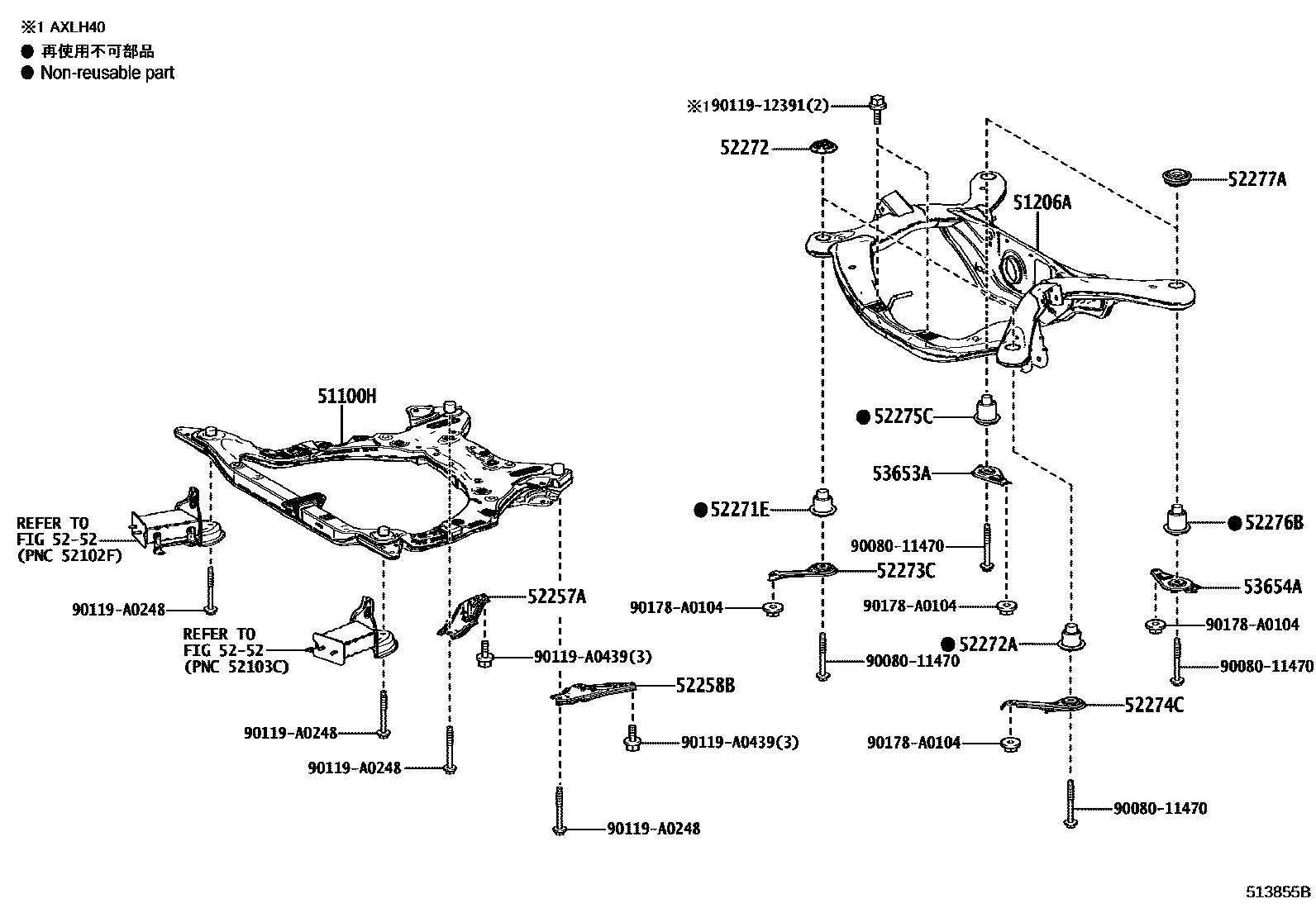

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51100HFRAME ASSY, FRONT

main51100-08100iAXLH4#202011-202305

sub51100-0E170

main51100-0E170iAXLH4#202306-202410

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-08010iAXLH4#202011-202410

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-08040iAXLH4#202011-202410

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-08040iAXLH4#202011-202410

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-0E090iAXLH4#202011-202410

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-0E090iAXLH4#202011-202410

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52271-0E090iAXLH4#202011-202410

52273CSTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-08010iAXLH4#202011-202410

52274CSTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52274-08010iAXLH4#202011-202410

52275CCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR RH

main52275-0E080iAXLH4#202011-202410

52276BCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52276-0E030iAXLH4#202011-202410

52277ARETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH

main52277-0E080iAXLH4#202011-202410

5252

53653ABRACE, REAR SUSPENSION, LOWER RH

main53653-08010iAXLH4#202011-202410

53654ABRACE, REAR SUSPENSION, LOWER LH

main53654-08010iAXLH4#202011-202410

9008011470

main90080-11470

9011912391

main90119-12391

90119A0248

main90119-A0248

90119A0439

main90119-A0439

90178A0104

main90178-A0104

20 parts on this diagram · 2 diagrams in section
