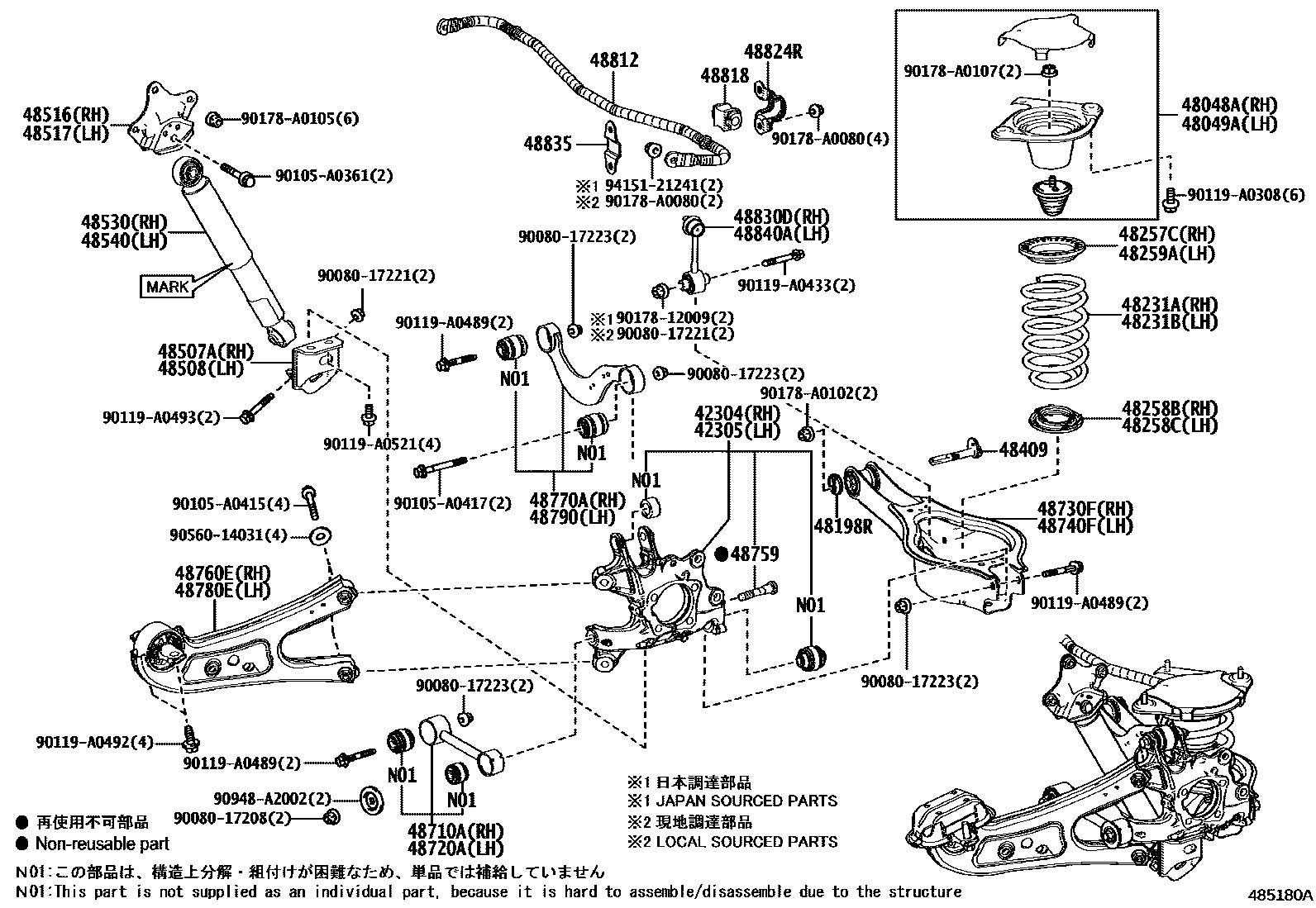

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48048ASEAT SUB-ASSY, SPRING, RH
48049ASEAT SUB-ASSY, SPRING, LH
48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48507ABRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER RH
48508BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LOWER LH
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-08110
MARK 48531-08110,MEXICO SPEC
MARK 48531-08120
MARK 48531-08150
MARK 48531-08190,MAAS PACKAGE
MARK 48531-08190
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-08110
MARK 48531-08110,MEXICO SPEC
MARK 48531-08120
MARK 48531-08150
MARK 48531-08190
MARK 48531-08190,MAAS PACKAGE
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48759PIN, LOWER CONTROL ARM
48760EARM ASSY, TRAILING, REAR RH
48770AARM ASSY, UPPER CONTROL, REAR RH
48780EARM ASSY, TRAILING, REAR LH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
MEXICO SPEC
MAAS PACKAGE
MEXICO SPEC
MAAS PACKAGE
48818BUSH, STABILIZER, REAR
MEXICO SPEC
MAAS PACKAGE
48824RBRACKET, STABILIZER(FOR REAR)
48830DLINK ASSY, REAR STABILIZER, RH
48835BRACKET, REAR STABILIZER, LOWER
48840ALINK ASSY, REAR STABILIZER, LH
9008017208
main90080-17208
9008017221
main90080-17221
9008017223
main90080-17223
90105A0361
main90105-A0361
90105A0415
main90105-A0415
90105A0417
main90105-A0417
90119A0308
main90119-A0308
90119A0433
main90119-A0433
90119A0489
main90119-A0489
90119A0492
main90119-A0492
90119A0493
main90119-A0493
90119A0521
main90119-A0521
9017812009
main90178-12009
90178A0080
main90178-A0080
90178A0102
main90178-A0102
90178A0105
main90178-A0105
90178A0107
main90178-A0107
9056014031
main90560-14031
90948A2002
main90948-A2002
9415121241
main94151-21241
53 parts on this diagram · 1 diagram in section
