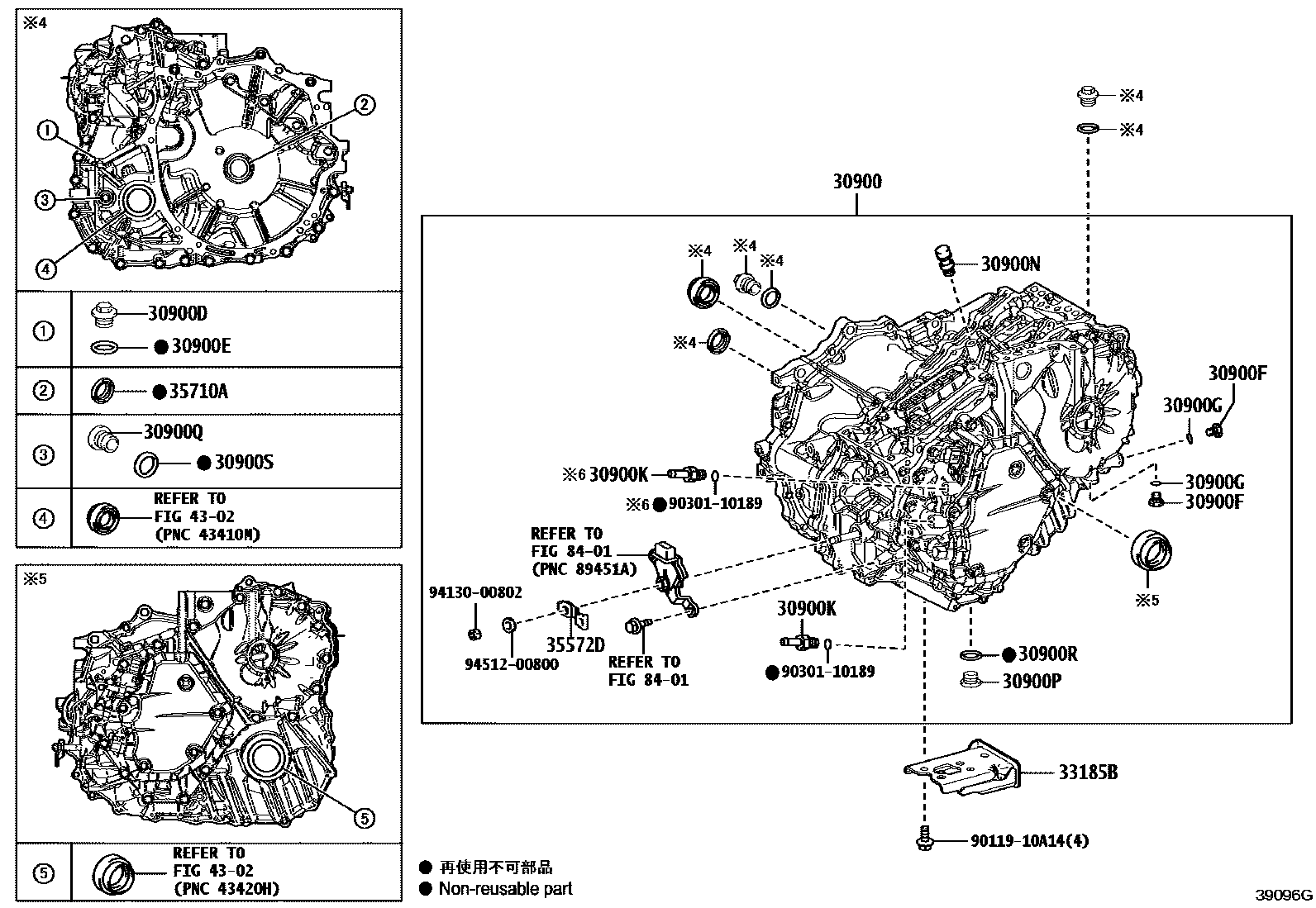

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1HYBRID VEHICLE TRANSAXLE ASSY0002 1HYBRID VEHICLE TRANSAXLE ASSY0003 1REAR TRACTION MOTOR

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-08010iAXLH4#202011-202109

(L)

sub30900-08011

main30900-08011iAXLH4#202110-202410

(L)

main30900-0E030iAXLH4#202410

(L)

main30900-48150iAXLH4#202011-202104

(J)

sub30900-48151¥399,000

main30900-48151iAXLH4#¥399,000202105-202410

(J)

main30900-48180iAXLH4#202410

(J)

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iAXLH4#¥240202011-202410

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iAXLH4#¥110202011-202410

30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)

main90341-13001iAXLH4#¥130202011-202410

30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)

main90301-10189iAXLH4#¥170202011-202410

30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)

main90404-13010iAXLH4#¥310202011-202410

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03223iAXLH4#¥170202011-202410

30900PPLUG, DRAIN(HEV)

main90341-18016iAXLH4#¥190202011-202410

30900QPLUG, FILLER(HEV)

main90341-18016iAXLH4#¥190202011-202410

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iAXLH4#¥110202011-202410

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iAXLH4#¥110202011-202410

33185BBRACKET, TRANSAXLE UNDER STOPPER

main33185-0E010iAXLH4#202011-202410

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-33070iAXLH4#¥620202011-202410

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-29003iAXLH4#¥290202011-202410

4302

8401

9011910A14

main90119-10A14¥120

9030110189

main90301-10189¥170

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

20 parts on this diagram · 3 diagrams in section
