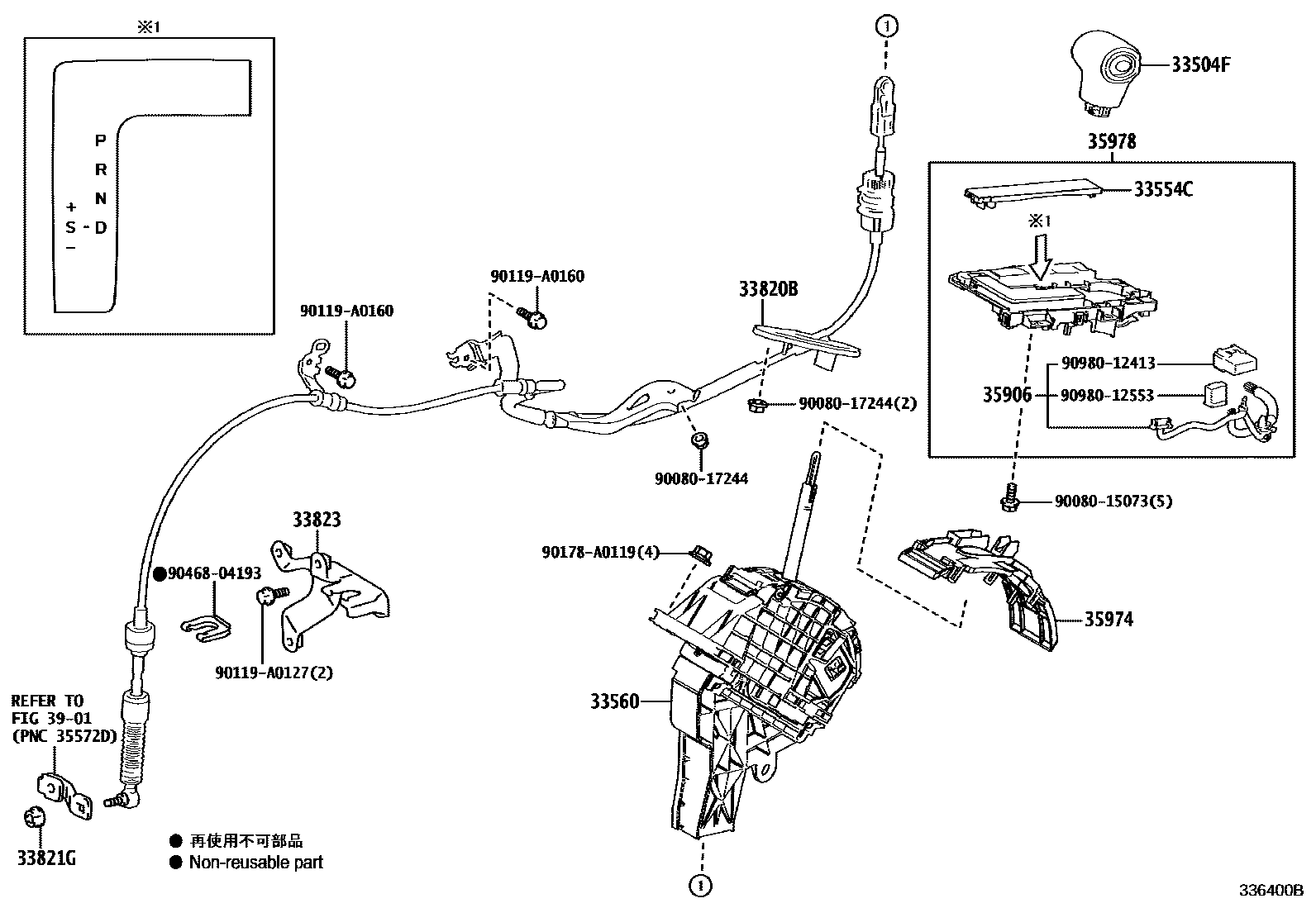

SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-08100iAXLH4#..E202011-202410

main33504-08110iAXLH4#..L,S202011-202410

main33504-08120iAXLH4#..L,S,X202011-202410

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-08040iAXLH4#202011-202410

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-08040iAXLH4#202011-202410

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-08070iAXLH4#202011-202410

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-A0024iAXLH4#202011-202410

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-0R100iAXLH4#202011-202410

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-08040iAXLH4#202011-202410

35974HOUSING, POSITION INDICATOR, LOWER

main35974-08040iAXLH4#202011-202410

35978INDICATOR, SHIFT POSITION

main35978-08030iAXLH4#202011-202410

3901

9008015073

main90080-15073

9008017244

main90080-17244

90119A0127

main90119-A0127

90119A0160

main90119-A0160

90178A0119

main90178-A0119

9046804193

main90468-04193

9098012413

main90980-12413

9098012553

main90980-12553

18 parts on this diagram · 1 diagram in section
