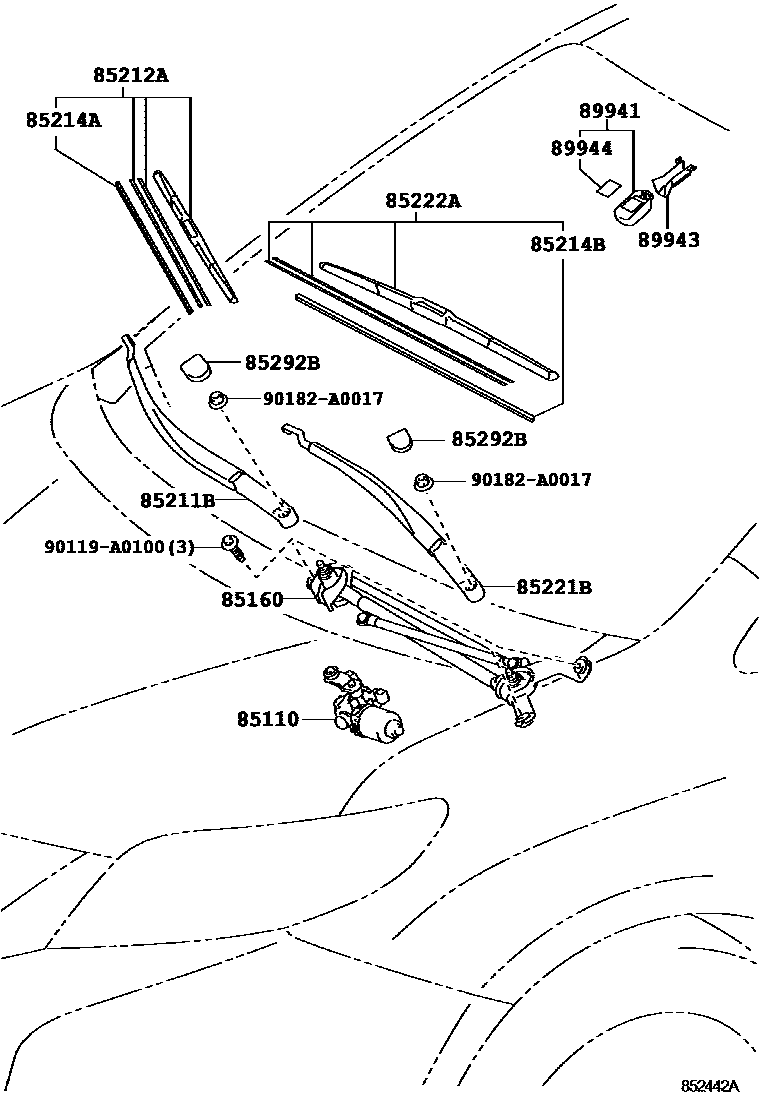

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-08020iGSL30,33;GSL35..LE,XLE201001-201409

main85110-08030iGSL3#201409-202009

85160LINK ASSY, WINDSHIELD WIPER

main85150-08020iASL30;GSL35..STD201001-202009

85211BARM, FRONT WIPER, RH

main85211-08020iASL30;GSL35..STD201001-201409

main85211-08030iGSL3#201409-202009

85212ABLADE, FR WIPER, RH

main85212-06110iASL30;GSL35..STD201001-201409

main85212-0E050iGSL3#201409-202009

85214ARUBBER, WIPER, RH

main85214-06130iASL30;GSL35..STD201001-201410

sub85214-0E140

main85214-0E140iGSL3#201411-202009

85214BRUBBER, WIPER, LH

main85214-08050iGSL30,33;GSL35..LE,XLE201001-202009

85221BARM, FRONT WIPER, LH

main85221-08020iGSL3#201001-202009

main85221-08030iGSL3#201409-201411

sub85221-08020

85222ABLADE, FR WIPER, LH

main85222-08020iASL30;GSL35..STD201001-202009

main85222-08030iGSL3#201409-201411

sub85222-08020

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010iGSL3#201001-202009

89941SENSOR, RAIN

main89941-42010

89943COVER, RAIN SENSOR

main89943-28010

89944TAPE, RAIN SENSOR

main89944-42010

90119A0100

main90119-A0100

90182A0017

main90182-A0017

14 parts on this diagram · 1 diagram in section
