WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-08010iGSL30,35..XLE201001-202009

STARTING SYSTEM-PUSH BUTTON

main89740-08010iGSL30,35..XLE201409-202009

STARTING SYSTEM-ROTARY

main89741-08050iGSL3#..LE,SE,STD201409-202009

STARTING SYSTEM-ROTARY

main89741-08050iGSL30..SE201409-201608

LUXURY PACKAGE&STARTING SYSTEM-PUSH BUTTON

main89741-08050iGSL30..SE201001-202009

STARTING SYSTEM-PUSH BUTTON

main89741-08050iASL30;GSL35..STD201001-201308

89747BUZZER, WIRELESS DOOR LOCK

main89747-0R020iGSL3#201608-202009

main89747-0R020iGSL30..SE201412-201608

STARTING SYSTEM-PUSH BUTTON

main89747-0R020iGSL30..SE201412-201608

STARTING SYSTEM-ROTARY

main89747-0R020iGSL30..SE201412-201608

LUXURY PACKAGE&STARTING SYSTEM-PUSH BUTTON

main89747-30040iGSL3#201409-201411

STARTING SYSTEM-ROTARY

main89747-30040iASL30;GSL35..STD201001-201308

main89747-30040iGSL30,33;GSL35..LE,XLE201001-201411

STARTING SYSTEM-PUSH BUTTON

main89747-30040iGSL3#201409-201411

LUXURY PACKAGE&STARTING SYSTEM-PUSH BUTTON

89990ACOMPUTER ASSY, SMART KEY

main89990-08010iGSL30..SE201409-202009

DE-CONTENT PACKAGE&STARTING SYSTEM-ROTARY

main89990-08010iGSL30,35..XLE201409-201711

STARTING SYSTEM-ROTARY

main89990-08010iGSL30,35..XLE201001-202009

STARTING SYSTEM-PUSH BUTTON

main89990-08010iGSL30,35..XLE201608-201711

W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)&STARTING SYSTEM-ROTARY

89997ANTENNA, ELECTRICAL KEY

main89997-08020iGSL30,35..XLE201411-202009

STARTING SYSTEM-PUSH BUTTON

main89997-28020iGSL30,35..XLE201001-201411

STARTING SYSTEM-PUSH BUTTON

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-08010iGSL30,35..XLE201001-202009

STARTING SYSTEM-PUSH BUTTON

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-08020iGSL35..LE,SE;GSL30..08S..(LE,SE)201001-202009

STARTING SYSTEM-PUSH BUTTON

899A1ANTENNA, INDOOR ELECTRICAL KEY

main899A1-08010iGSL30,35..XLE201001-202009

STARTING SYSTEM-PUSH BUTTON

899A4CASE, INDOOR ELECTRICAL KEY

main899A4-08020iGSL30,35..XLE201001-202009

STARTING SYSTEM-PUSH BUTTON

9008011545

main90080-11545

9008017066

main90080-17066

9008411038

main90084-11038

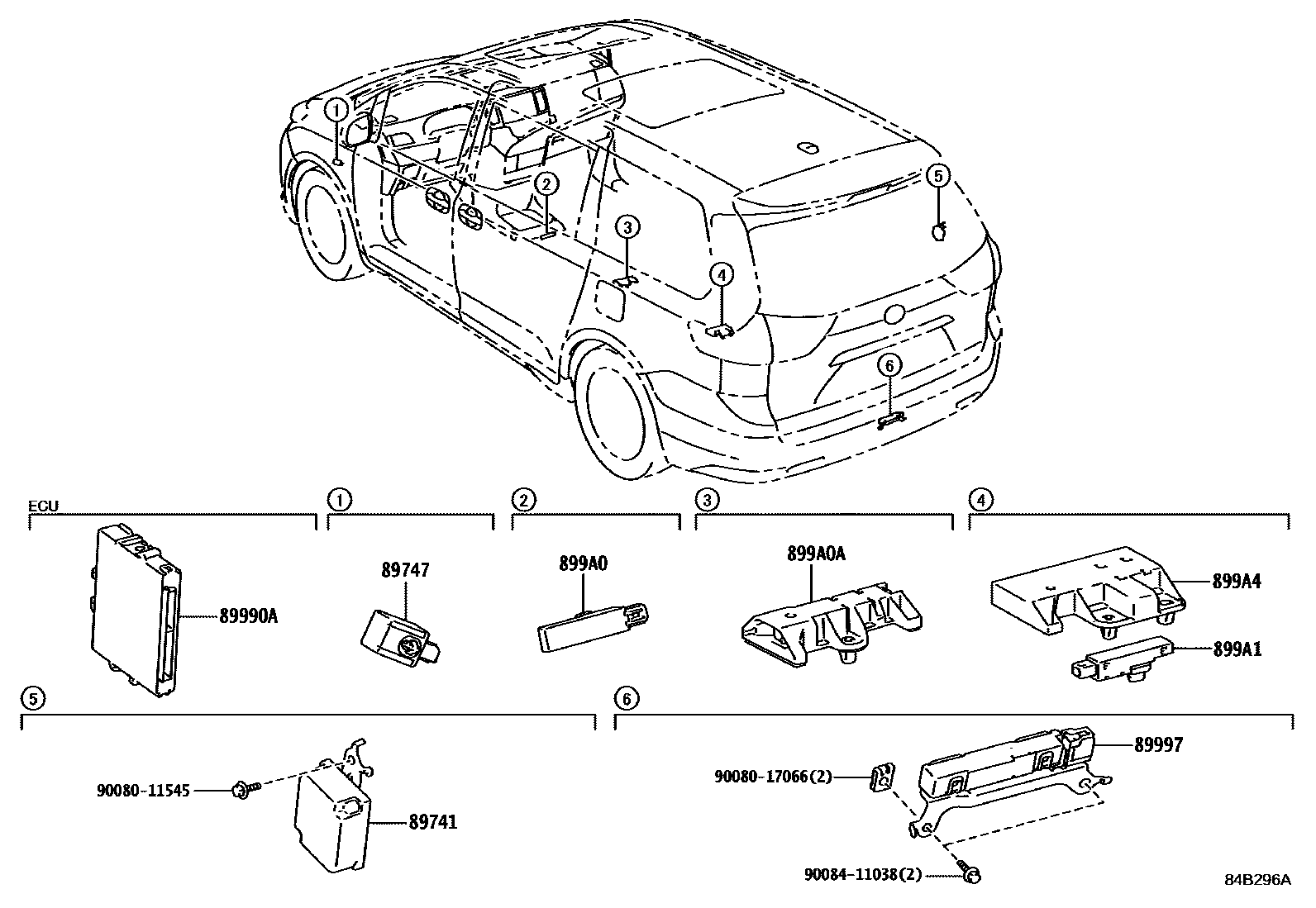

11 parts on this diagram · 1 diagram in section
