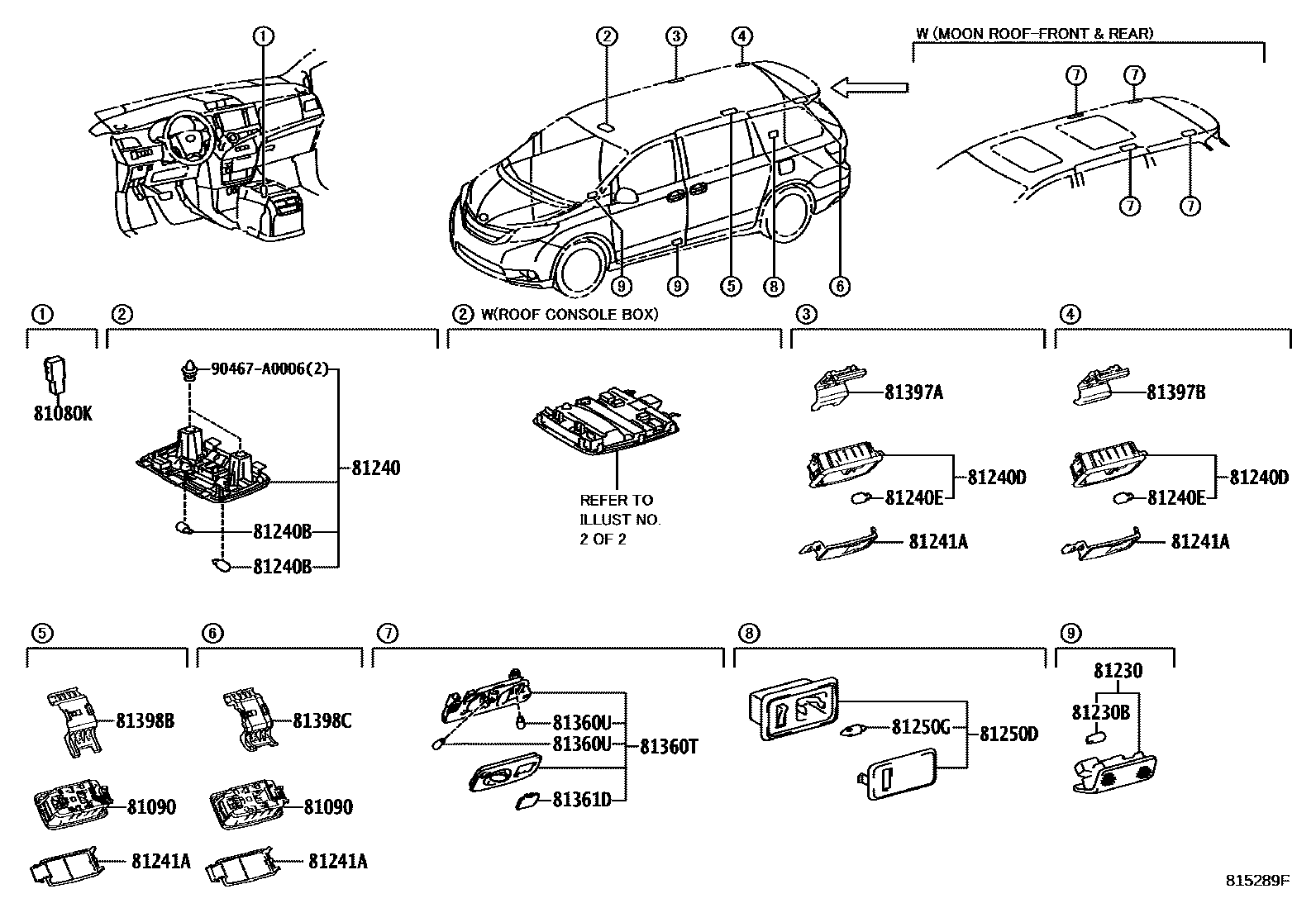

INTERIOR LAMP
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
FRONT CONSOLE BOX-FIXED TYPE(BLACK)
FRONT CONSOLE BOX-FIXED(BLACK)
FRONT CONSOLE BOX-FIXED TYPE(BLACK)
81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2
LT.GRAY,TRIM1#
LT.GRAY,TRIM2#
GREGE,TRIM4#
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM1#
GREGE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
12V 5W
12V 8W
81240DLAMP ASSY, ROOM, NO.2
LT.GRAY,TRIM1#
LT.GRAY,TRIM2#
GREGE,TRIM4#
81240EBULB, ROOM LAMP, NO.2
12V 5W
12V 5W,DE-CONTENT PACKAGE
12V 5W,MOBILITY BASE VEHICLE
12V 5W,MOBILITY BASE VEHICLE&MOON ROOF-WITH(FRONT ONLY)
12V 5W,WITH(LIFT UP SEAT)
12V 5W,WITH(LIFT UP SEAT)&MOON ROOF-WITH(FRONT ONLY)
12V 5W,MOBILITY BASE VEHICLE&MOON ROOF-WITH(FRONT ONLY)&AUDIO-ACCESSORY AUDIO 6SPEAKER
12V 5W,MOBILITY BASE VEHICLE&AUDIO-ACCESSORY AUDIO 6SPEAKER
12V 5W,WITH(LIFT UP SEAT)&MOON ROOF-WITH(FRONT ONLY)&AUDIO-ACCESSORY AUDIO 6SPEAKER
12V 5W,WITH(LIFT UP SEAT)&AUDIO-ACCESSORY AUDIO 6SPEAKER
81241ALENS, ROOM LAMP, NO.2
81250DLAMP ASSY, REAR ROOM, RH
81250GBULB, REAR ROOM LAMP, RH
12V 5W
12V 5W
81360TLAMP ASSY, SPOT
81360UBULB, SPOT LAMP
81361DLENS, SPOT LAMP
81397ARETAINER, ROOM LAMP, RH
81397BRETAINER, ROOM LAMP, NO.2 RH
81398BRETAINER, ROOM LAMP, LH
81398CRETAINER, ROOM LAMP, NO.2 LH
90467A0006
main90467-A0006
19 parts on this diagram · 5 diagrams in section
