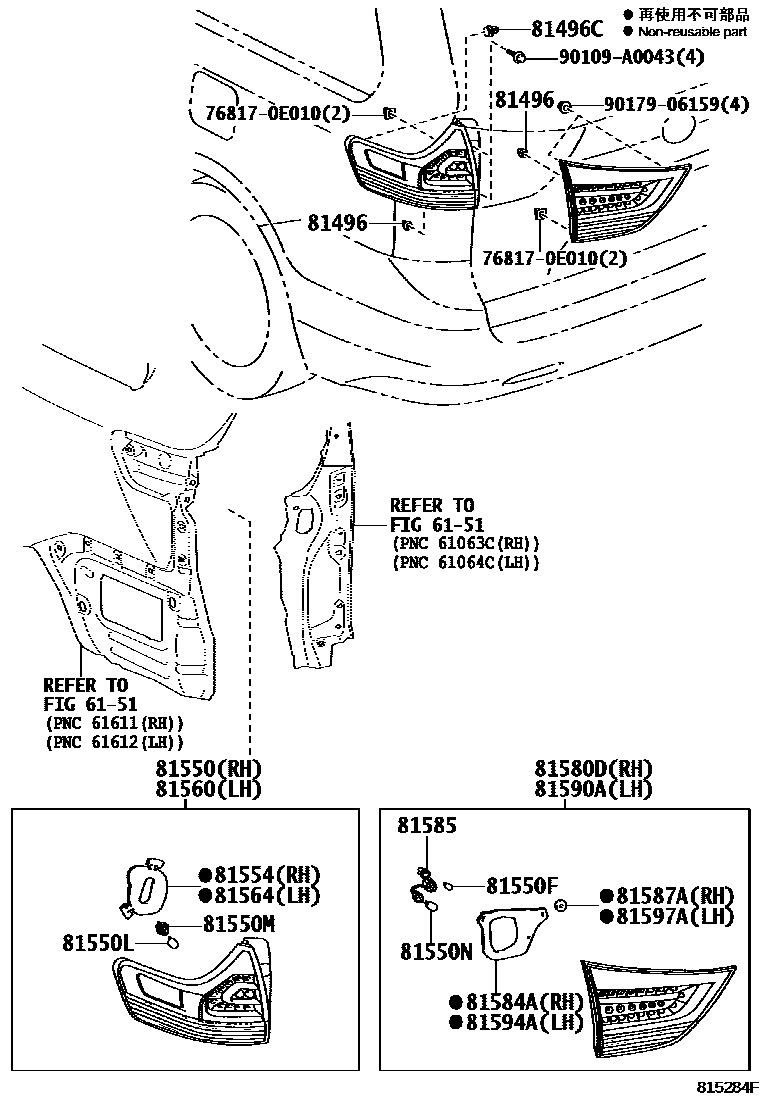

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-0E020iGSL3#201001-202009

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iASL30;GSL35..STD201001-202009

81550LAMP ASSY, REAR COMBINATION, RH

main81550-08030iASL30;GSL35..STD201001-201409

main81550-08040iGSL30..SE201005-202009

main81550-08050iGSL3#..LE,STD,XLE201409-201904

main81550-08051iGSL3#..LE,STD,XLE201904-202009

81550FBULB, TAILLAMP

main99132-12050iASL30;GSL35..STD201001-201409

main99132-12050iGSL3#201409-202009

12V 5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021iGSL3#201409-202009

12V 21W,AMBER

main90981-15021iASL30;GSL35..STD201001-201409

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60026iGSL30..SE201001-202009

81550NBULB, BACK UP LAMP

main90084-98039iGSL3#201409-202009

12V 16W

main90084-98039iASL30;GSL35..STD201001-201409

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-08050iGSL3#..LE,STD,XLE201409-202009

main81554-08030iGSL30..SE201001-202009

81560LAMP ASSY, REAR COMBINATION, LH

main81560-08030iASL30;GSL35..STD201001-201409

main81560-08040iGSL30,35..SE201005-202009

main81560-08050iGSL3#..LE,STD,XLE201409-201904

main81560-08051iGSL3#..LE,STD,XLE201904-202009

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-08050iGSL3#..LE,STD,XLE201409-202009

main81564-08030iGSL30..SE201001-202009

81580DLAMP ASSY, REAR, RH

main81580-08010iASL30,GSL3#..LE,STD,XLE201001-201110

main81580-08011iASL30;GSL35..STD201110-201409

main81580-08020iGSL30..SE201005-202009

main81580-08030iGSL3#..LE,STD,XLE201409-201904

main81580-08031iGSL3#..LE,STD,XLE201904-202009

81584PACKING, REAR LAMP RH

main81582-08030iGSL3#..LE,STD,XLE201409-202009

81584AGASKET, REAR LAMP RH

main81584-08010iGSL30,33;GSL35..LE,XLE201001-201711

main81584-08030iGSL3#..LE,STD,XLE201409-202009

81585SOCKET & WIRE, REAR LAMP

main81585-08010iGSL30..SE201001-202009

81587APLATE, REAR LAMP CIRCUIT, RH

main81587-08010iGSL30,33;GSL35..LE,XLE201001-202009

81590ALAMP ASSY, REAR, LH

main81590-08010iASL30,GSL3#..LE,STD,XLE201001-201110

main81590-08011iGSL35..LE,XLE;GSL30,33..LE,STD,XLE201110-201409

main81590-08020iGSL30..SE201005-202009

main81590-08030iGSL3#..LE,STD,XLE201409-201904

main81590-08031iGSL3#..LE,STD,XLE201904-202009

81594AGASKET, REAR LAMP LH

main81584-08010iASL30;GSL35..STD201001-202009

main81584-08030iGSL3#..LE,STD,XLE201409-202009

81597APLATE, REAR LAMP CIRCUIT, LH

main81587-08010iASL30;GSL35..STD201001-202009

768170E010CLIP, BACK DOOR OUTSIDE GARNISH

main76817-0E010

90109A0043

main90109-A0043

9017906159

main90179-06159

22 parts on this diagram · 3 diagrams in section
