E
EPC Data

SEAT BELT

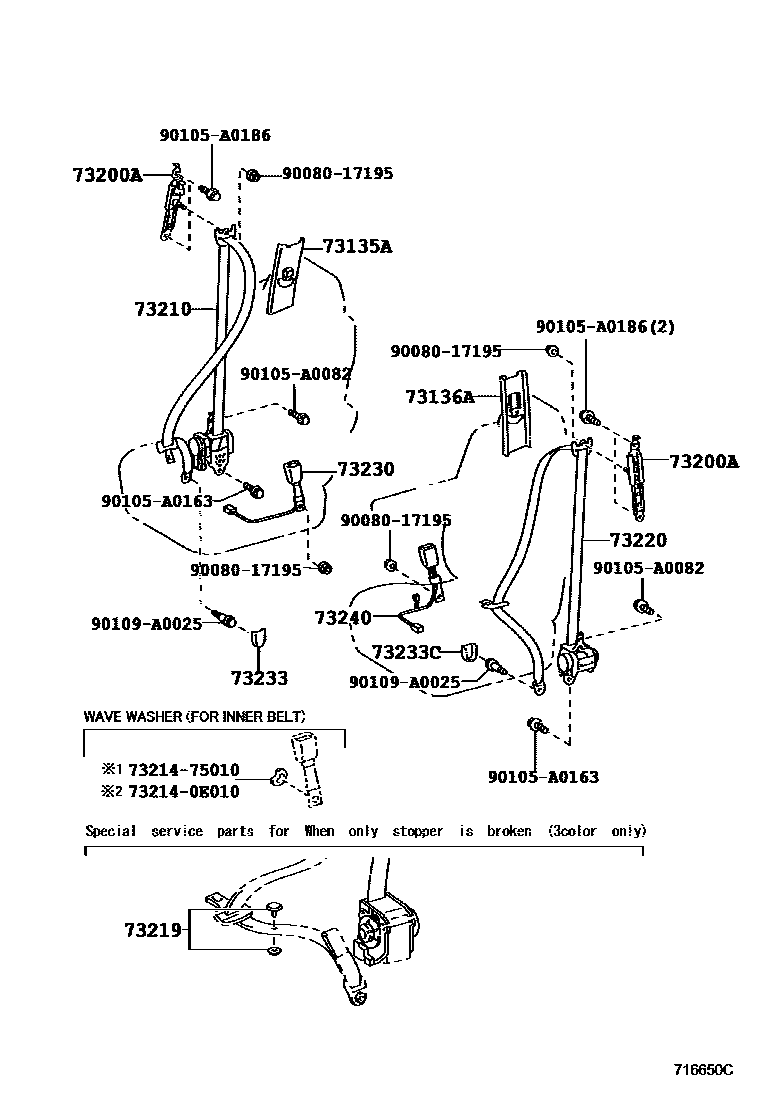

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73023-06030-B0i201409-202009
GRAY,TRIM1#
main73023-06030-B0i201409-202009
GRAY,TRIM2#
main73023-06030-B1i201001-201409
LT.GRAY,TRIM1#
main73023-06030-E0i201001-202009
GREGE,TRIM4#
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73024-06030-B0i201409-202009
GRAY,TRIM1#
main73024-06030-B0i201409-202009
GRAY,TRIM2#
main73024-06030-B1i201001-201409
LT.GRAY,TRIM1#
main73024-06030-E0i201001-202009
GREGE,TRIM4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-08010i201001-201210
sub73200-0C020¥3,680
main73200-0C020i¥3,680201211-202009
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-08040-B1i201001-201109
GRAY,TRIM1#
main73210-08040-E0i201001-201109
GREGE,TRIM4#
main73210-08041-B1i201109-201409
GRAY,TRIM1#
main73210-08041-E0i201109-201409
GREGE,TRIM4#
main73210-08080-B0i201409-201506
GRAY,TRIM1#
sub73210-08082
main73210-08080-C0i201409-201506
BLACK/GRAY,TRIM2#
sub73210-08082
main73210-08080-C0i201409-201506
HIGH GRADE PACKAGE,BLACK/GRAY,TRIM1#
sub73210-08082
main73210-08080-E0i201409-201506
GREGE,TRIM4#
sub73210-08082
main73210-08082-B0i201506-201510
GRAY,TRIM1#
sub73210-08083¥31,500
main73210-08082-C0i201506-201510
GRAY/BLACK,TRIM2#
sub73210-08083¥31,500
main73210-08082-C0i201506-201510
HIGH GRADE PACKAGE,GRAY/BLACK,TRIM1#
sub73210-08083¥31,500
main73210-08082-E0i201506-201510
GREGE,TRIM4#
sub73210-08083¥31,500
main73210-08083-B0i201511-202009
GRAY,TRIM1#
main73210-08083-C0i201511-202009
HIGH GRADE PACKAGE,GRAY/BLACK,TRIM1#
main73210-08083-C0i201511-202009
GRAY/BLACK,TRIM2#
main73210-08083-C0i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT),GRAY/BLACK,TRIM1#
main73210-08083-E0i201511-202009
GREGE,TRIM4#
73219STOPPER, TONGUE PLATE
main73219-02010i¥80201203-202009
BLACK
main73219-02020i¥80201203-202009
GRAY
main73219-02030i¥80201203-202009
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-08040-B1i201001-201409
GRAY,TRIM1#
main73220-08040-E0i201001-201409
GREGE,TRIM4#
main73220-08060-B1i201409-201510
GRAY,TRIM1#
sub73220-08061
main73220-08060-C1i201409-201510
BLACK/GRAY,TRIM2#
sub73220-08061
main73220-08060-C1i201409-201510
HIGH GRADE PACKAGE,BLACK/GRAY,TRIM1#
sub73220-08061
main73220-08060-E1i201409-201510
GREGE,TRIM4#
sub73220-08061
main73220-08061-B1i201511-202009
GRAY,TRIM1#
main73220-08061-C1i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT),BLACK/GRAY,TRIM1#
main73220-08061-C1i201511-202009
BLACK/GRAY,TRIM2#
main73220-08061-C1i201511-202009
HIGH GRADE PACKAGE,BLACK/GRAY,TRIM1#
main73220-08061-E1i201511-202009
GREGE,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-08030-B0i201001-201409
LT.GRAY,TRIM1#
main73230-08030-B1i201005-201409
DK.GRAY,TRIM1#
main73230-08030-E0i201001-201409
GREGE,TRIM4#
main73230-08040-B0i201409-202009
GRAY,TRIM1#
main73230-08040-C0i201409-202009
BLACK,TRIM2#
main73230-08040-C0i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT),BLACK,TRIM4#
main73230-08040-C0i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE),BLACK,TRIM4#
main73230-08040-C0i201409-202009
HIGH GRADE PACKAGE,BLACK,TRIM4#
main73230-08040-C0i201409-201608
HIGH GRADE PACKAGE&CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE),BLACK,TRIM4#
main73230-08040-E0i201409-202009
GREGE,TRIM4#
73233COVER, LAP BELT OUTER ANCHOR
main73233-08010-B1i201409-202009
MD.GRAY,TRIM1#
main73233-08010-C0i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE),BLACK,TRIM1#,4#
main73233-08010-C0i201409-202009
BLACK,TRIM2#
main73233-08010-C0i201409-202009
HIGH GRADE PACKAGE,BLACK,TRIM1#,4#
main73233-08010-C0i201409-201608
HIGH GRADE PACKAGE&CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE),BLACK,TRIM1#,4#
main73233-08010-C0i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT),BLACK,TRIM1#,4#
main73233-08010-E1i201409-202009
ASH BROWN,TRIM4#
main73233-0C010-B0i201001-201409
GRAY,TRIM1#
main73233-0C010-E2i201001-201409
ASH BROWN,TRIM4#
73233CCOVER, LAP BELT OUTER ANCHOR, LH
main73233-08010-B1i201409-202009
MD.GRAY,TRIM1#
main73233-08010-C0i201409-202009
BLACK,TRIM2#
main73233-08010-C0i201409-202009
HIGH GRADE PACKAGE,BLACK,TRIM1#,4#
main73233-08010-C0i201409-201608
HIGH GRADE PACKAGE&CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE),BLACK,TRIM1#,4#
main73233-08010-C0i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT),BLACK,TRIM1#,4#
main73233-08010-C0i201608-201711
WITH(DRIVER SEAT: MEMORY POWER SEAT)&CRUISE CONTROL-WITH(MILLIMETER WAVE RADAR CRUISE),BLACK,TRIM1#,4#
main73233-08010-E1i201409-202009
ASH BROWN,TRIM4#
main73233-0C010-B0i201001-201409
GRAY,TRIM1#
main73233-0C010-E2i201001-201409
ASH BROWN,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-08020-B0i201001-201409
DE-CONTENT PACKAGE,LT.GRAY,TRIM1#
main73240-08020-B0i201001-201409
LT.GRAY,TRIM1#
main73240-08020-E0i201001-201409
GREGE,TRIM4#
main73240-08020-E0i201001-201409
DE-CONTENT PACKAGE,GREGE,TRIM4#
main73240-08030-B0i201001-201409
LT.GRAY,TRIM1#
main73240-08030-B1i201005-201409
DK.GRAY,TRIM1#
main73240-08030-E0i201001-201409
GREGE,TRIM4#
main73240-08050-B0i201409-202009
DE-CONTENT PACKAGE,GRAY,TRIM1#
main73240-08050-B0i201409-202009
GRAY,TRIM1#
main73240-08050-B0i201608-201711
W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT),GRAY,TRIM1#
main73240-08050-E0i201608-201711
W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT),GREGE,TRIM4#
main73240-08050-E0i201409-202009
GREGE,TRIM4#
main73240-08050-E0i201409-202009
DE-CONTENT PACKAGE,GREGE,TRIM4#
main73240-08060-B0i201409-202009
GRAY,TRIM1#
main73240-08060-C0i201409-202009
BLACK,TRIM2#
main73240-08060-E0i201409-202009
GREGE,TRIM4#
732140E010PLATE, FRONT SEAT BELT ANCHOR
main73214-0E010¥260
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010¥170
9008017195
main90080-17195
90105A0082
main90105-A0082
90105A0163
main90105-A0163
90105A0186
main90105-A0186
90109A0025
main90109-A0025¥270

17 parts on this diagram · 5 diagrams in section
